Part Number # 8536SBO1V02S
SKU # 2198507
Image Disclaimers Message
Brand: Square D
8536SBO1V02S

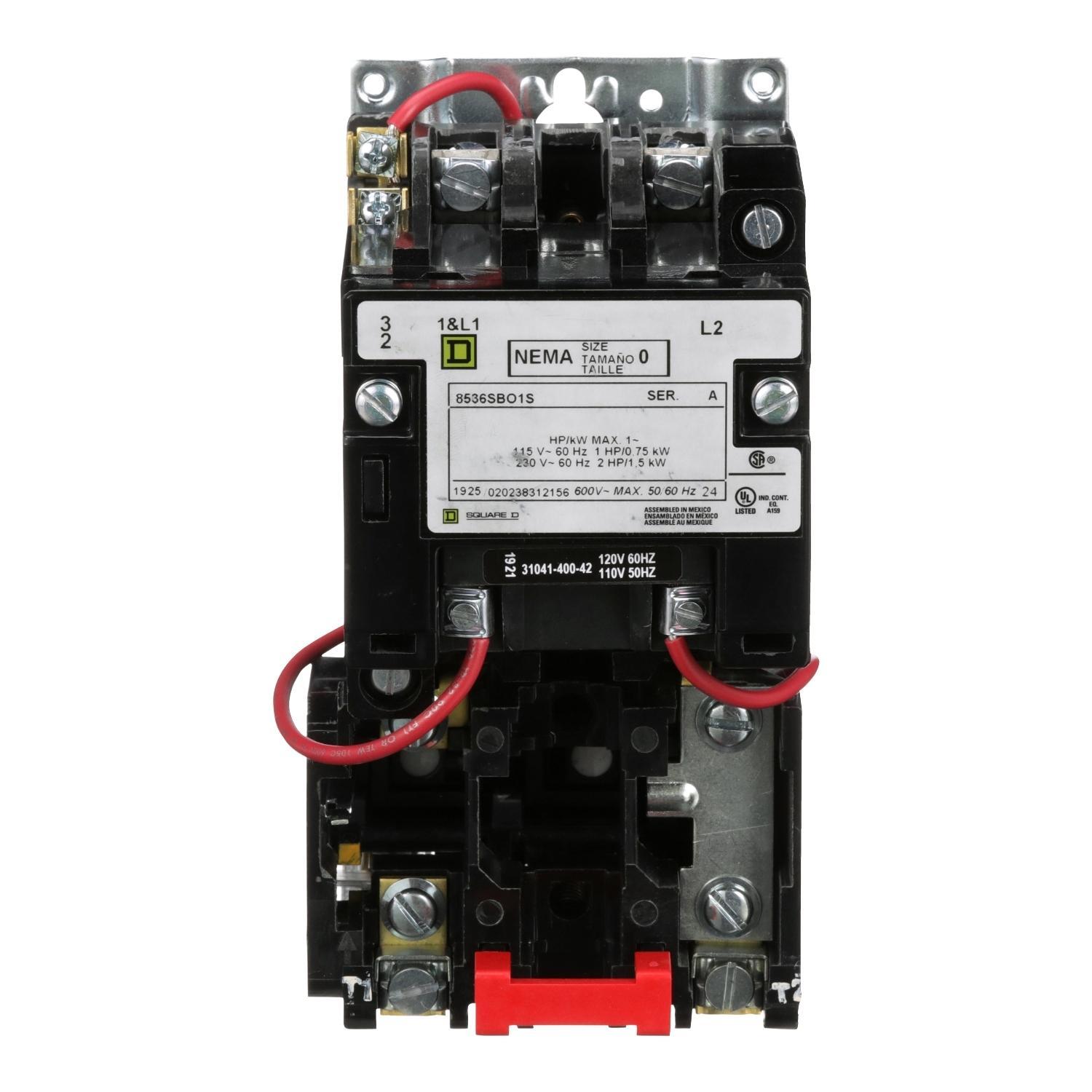

Square D 8536SBO1V02S Starter
Part Number # 8536SBO1V02S
SKU # 2198507
$528.44 / Each
Square D 8536SBO1V02S Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8536SBO1V02S |
| SKU #: | 2198507 |
| Action: | Non-Reversing |
| Amperage Rating: | 18, 18 A |
| Coil Voltage: | 110/120, 110/120 VAC |
| Dimensions: | 4.21 in W x 3.5 in D x 6.77 in H, 6.77 in H x 4.21 in W x 3.5 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 1 hp at 115 VAC, 2 hp at 230 VAC, 1 hp at 115 VAC/2 hp at 230 VAC |
| Number of Poles: | 2 |
| Operating Temperature: | 0 to 40, 0 to 40 deg C |
| Phase: | 1, 1 ph |
| Reset Type: | (1) Thermal Melting Alloy, Thermal Melting Alloy |
| Series: | 8536 |
| Type: | Type S, Type S Non-Reversing |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Material: | Sheet Steel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 00785901080343 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$528.44 / Each
Quantity:
- Square D Starter, Type S, Series: 8536, 600 VAC, 18 A, 50/60 Hz, 1 hp at 115 VAC/2 hp at 230 VAC Motor, 110/120 VAC Coil, 2 Pole, (1) Thermal Melting Alloy Reset, 1 ph, Screw Clamp, Non-Reversing, Open, Starting Modes: Magnetic, Sheet Steel, 0 to 40 deg C Operating, 4.21 in W x 3.5 in D x 6.77 in H
8536SBO1V02S Application
Constructions, Infrastructure, Industrial Markets, Commercial Office Buildings, Building Automation, Starting and Stopping Of AC Squirrel Cage Motors Applications8536SBO1V02S Includes
Separate Control Circuit8536SBO1V02S Item Features
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
- https://www.youtube.com/embed/W3jC7ckgcBo
8536SBO1V02S Standards
CE Certified|IEC 947-4-1|CSA 60905 Class 3211-04|ECCN: EAR99|UL File No. E78351 Guide No. NLDX|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov8536SBO1V02S Warranty
18 MonthsSKU #2198507Part Number #8536SBO1V02SUNSPSC39121521UPC00785901080343
