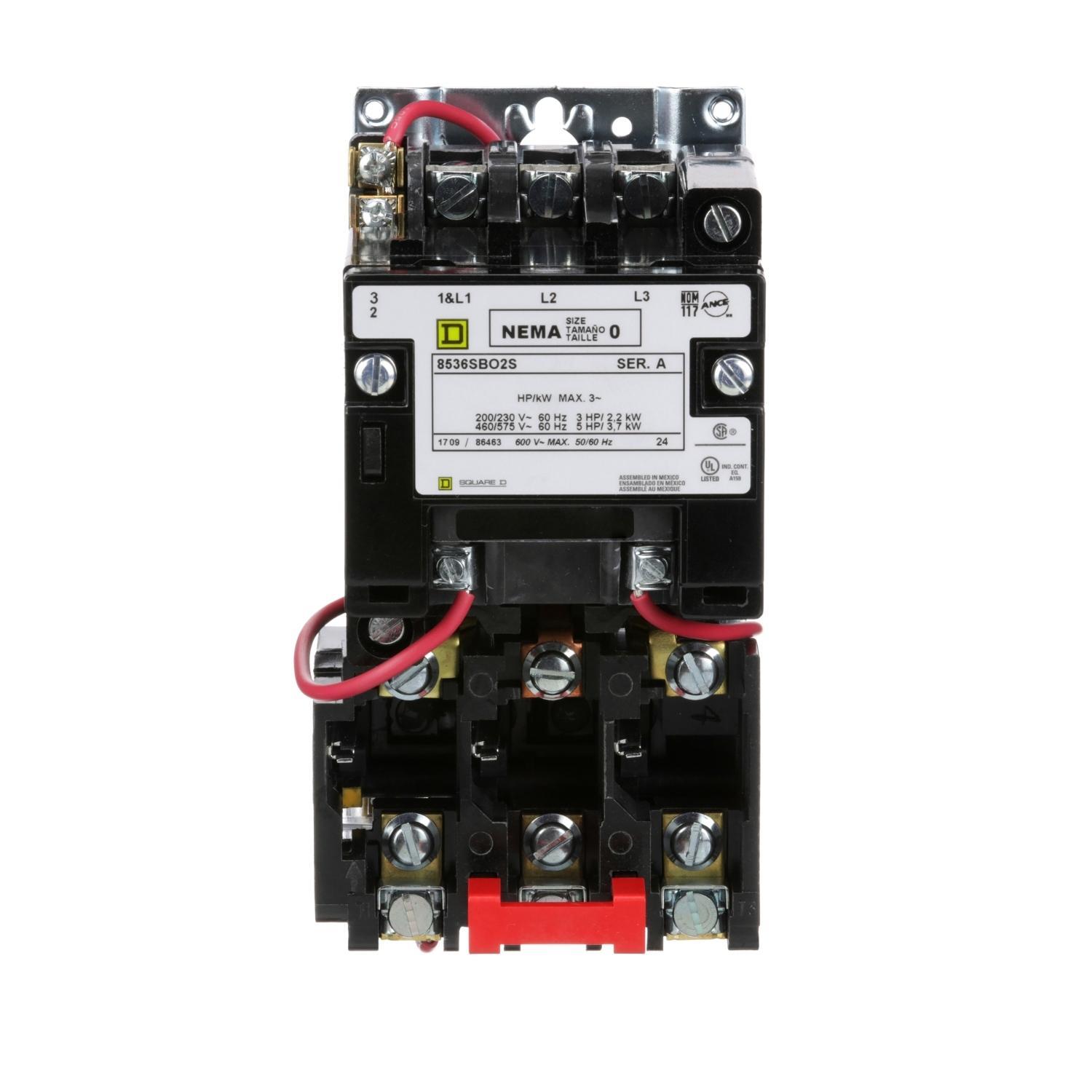

Square D 8536SBO2V01S Magnetic Starter
Part Number # 8536SBO2V01S
SKU # 2288069
$589.19 / Each
Square D 8536SBO2V01S Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8536SBO2V01S |
| SKU #: | 2288069 |
| Action: | Non-Reversing |
| Amperage Rating: | 18, 18 A |
| Coil Voltage: | 24 V AC at 60 Hz, 24 VAC at 60 Hz |
| Dimensions: | 3.5 in W x 4.21 in D x 6.77 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 3 hp at 200/230 VAC/5 hp at 460/575 VAC |
| Number of Poles: | 3 |
| Operating Temperature: | 0 to 40, 0 to 40 deg C |
| Overload Relay: | Thermal Melting Alloy |
| Phase: | 3, 3 ph |
| Reset Type: | (3) Thermal Melting Alloy |
| Series: | 8536 |
| Type: | Type S |
| Wattage: | 2.2 kW at 200/230 V AC/3.7 kW at 460/575 V AC, 2.2 kW at 200/230 VAC/3.7 kW at 460/575 VAC |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 00785901455981 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$589.19 / Each
Quantity:
- Square D Magnetic Starter, Type S, Series: 8536, 600 VAC, 18 A, 50/60 Hz, 2.2 kW at 200/230 V AC/3.7 kW at 460/575 V AC, 3 hp at 200/230 VAC/5 hp at 460/575 VAC Motor, 24 VAC at 60 Hz Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Non-Reversing, Thermal Melting Alloy Overload Relay, Open, 0 to 40 deg C Operating, 3.5 in W x 4.21 in D x 6.77 in H
8536SBO2V01S Application
Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors8536SBO2V01S Includes
Separate Control Circuit8536SBO2V01S Item Features
- Flexible with four overload relays, Motor Logic solid state, TeSysT communication solid state, Adapted Bimetal and melting alloy types
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils rather than replacing the entire product
- Simply service the part that is worn out
- Simple catalog number for easy and fast ordering
- https://www.youtube.com/embed/MsloUt8sPL0
8536SBO2V01S Standards
ARRA Compliant|BAA Compliant|CE Certified|IEC 947-4-1|CSA 60905 Class 3211-04|ECCN EAR99|UL File E78351 NLDX|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov8536SBO2V01S Warranty
18 MonthsSKU #2288069Part Number #8536SBO2V01SUNSPSC39121521UPC00785901455981
