8536SCA3V02S

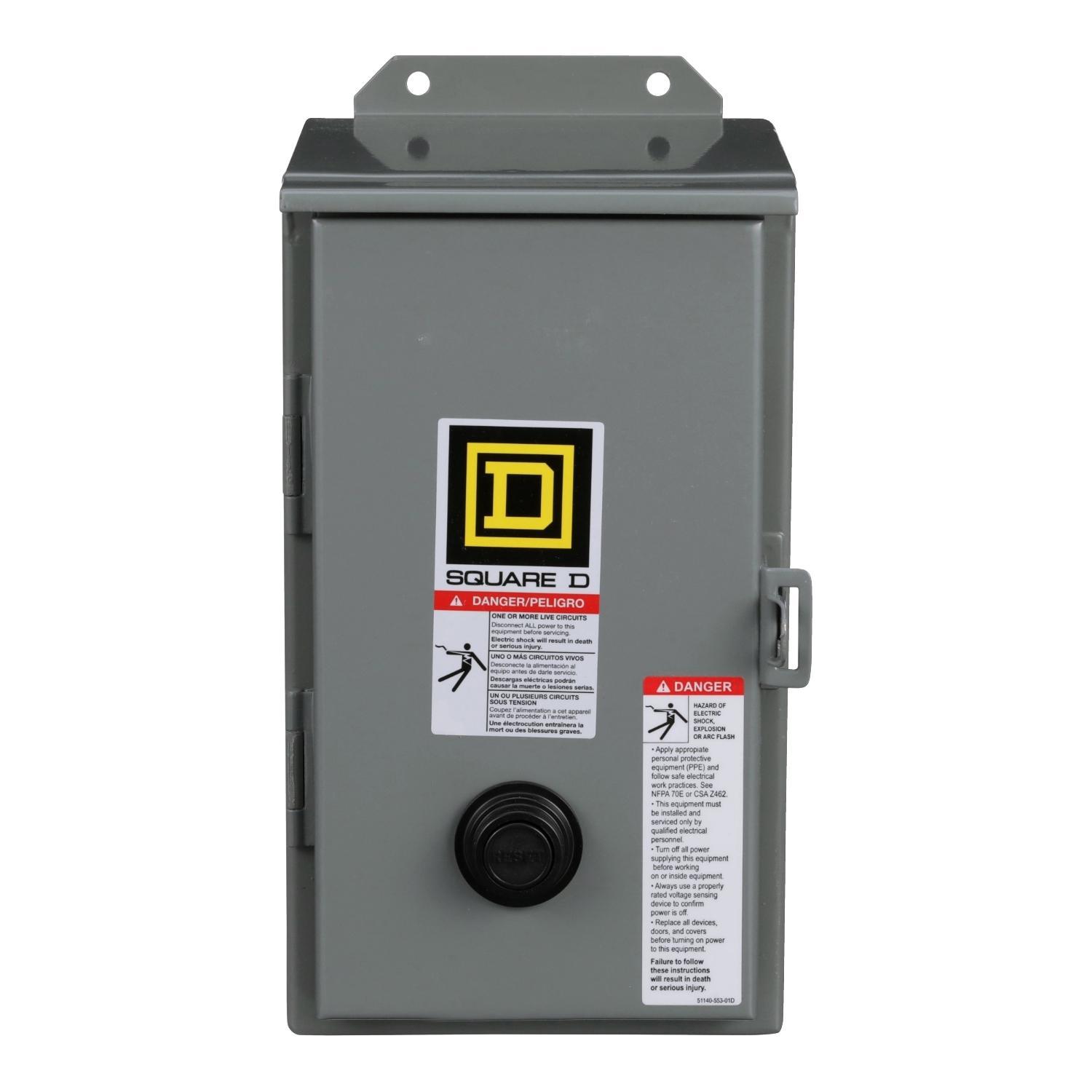

Square D 8536SCA3V02S Starter
Part Number # 8536SCA3V02S
SKU # 2397554
$941.92 / Each
Square D 8536SCA3V02S Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8536SCA3V02S |
| SKU #: | 2397554 |
| Action: | Non-Reversing |
| Amperage Rating: | 27 A |
| Coil Voltage: | 110/120 V AC, 110/120 VAC |
| Dimensions: | 6.38 in W x 8.54 in D x 12.76 in H |
| Enclosure Type: | NEMA 12 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 7-1/2 hp at 200/230 VAC/10 hp at 460/575 VAC |
| Number of Poles: | 3 |
| Operating Cycles: | 10 cpm |
| Operating Temperature: | 0 to 40 deg C |
| Overload Relay: | Thermal Melting Alloy 3 |
| Phase: | 3, 3 ph |
| Reset Type: | (3) Thermal Melting Alloy |
| Series: | 8536 |
| Type: | Type S |
| Wattage: | 5.5 kW at 200/230 V AC/7.5 kW at 460/575 V AC, 5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC |
| Connection type: | Screw Clamp |
| Country of origin: | US |
| Material: | Sheet Steel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 00785901877424 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$941.92 / Each
Quantity:
- Square D Starter, Type S, Series: 8536, 600 VAC, 27 A, 50/60 Hz, 5.5 kW at 200/230 V AC/7.5 kW at 460/575 V AC, 7-1/2 hp at 200/230 VAC/10 hp at 460/575 VAC Motor, 110/120 VAC Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Non-Reversing, Thermal Melting Alloy 3 Overload Relay, NEMA 12, Starting Modes: Magnetic, Sheet Steel, 10 cpm Operating Cycles, 0 to 40 deg C Operating, 6.38 in W x 8.54 in D x 12.76 in H
8536SCA3V02S Application
Starting and Stopping of AC Squirrel Cage Motors, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications8536SCA3V02S Includes
Separate Control Circuit8536SCA3V02S Item Features
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
- https://www.youtube.com/embed/Gy1KrKzer3o
8536SCA3V02S Standards
CE Certified|IEC 947-4-1|CSA 60905 Class 3211-04|ECCN: EAR99|UL File No. E78351|Guide No. NLDX|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov8536SCA3V02S Warranty
18 MonthsSKU #2397554Part Number #8536SCA3V02SUNSPSC39121521UPC00785901877424
