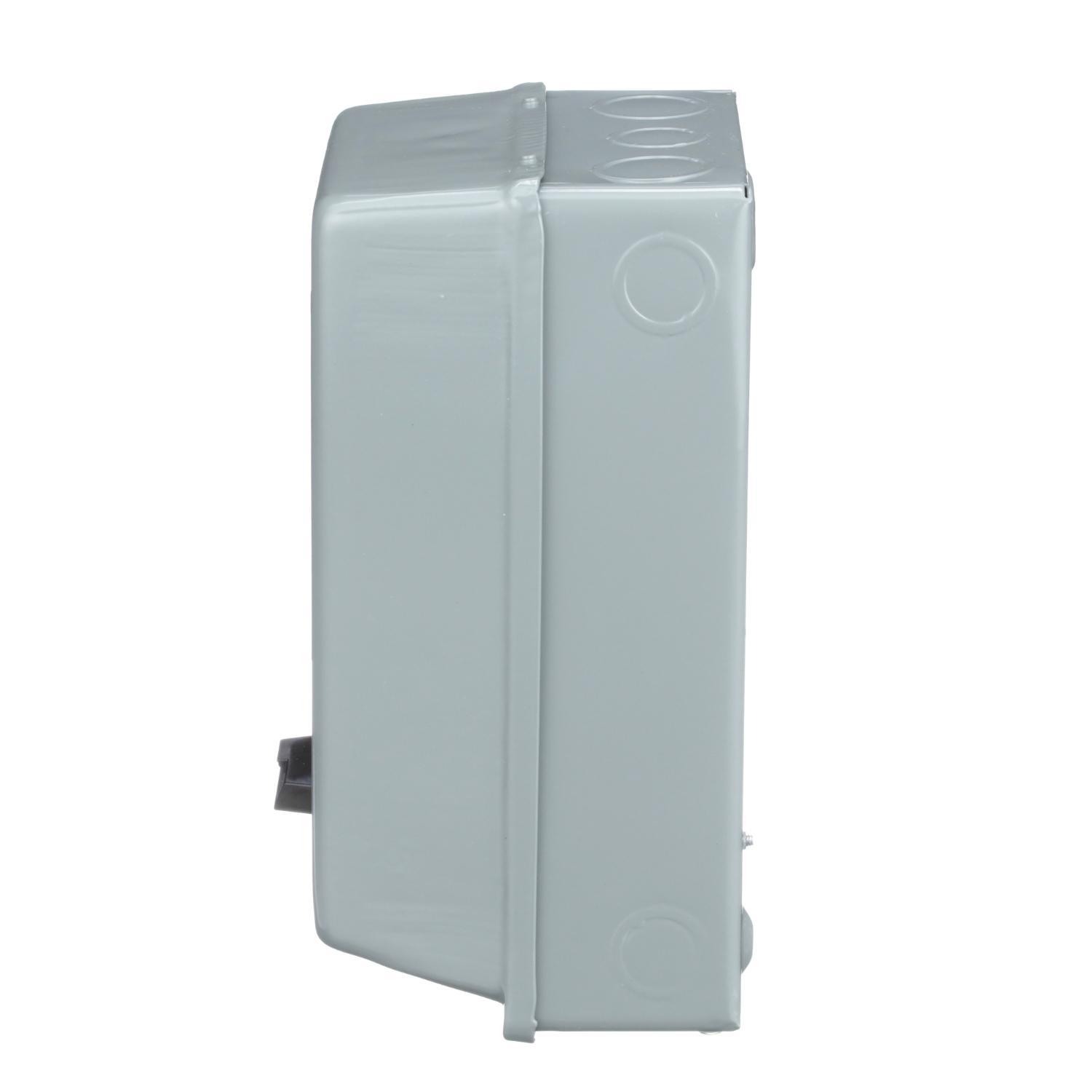

Square D 8536SCG3V02S Starter
Part Number # 8536SCG3V02S
SKU # 2180718
$658.30 / Each
Square D 8536SCG3V02S Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8536SCG3V02S |
| SKU #: | 2180718 |
| Action: | Non-Reversing |
| Amperage Rating: | 27, 27 A |
| Coil Voltage: | 110 to 120, 110/120 V AC, 110/120 VAC |
| Dimensions: | 5.98 in W x 5.55 in D x 10 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 7-1/2 hp, 10 hp, 7-1/2 hp/10 hp |
| Number of Poles: | 3 |
| Overload Relay: | Thermal Melting Alloy |
| Phase: | 3, 3 ph |
| Reset Type: | (3) Thermal Melting Alloy |
| Type: | General Purpose Type S, Type S General Purpose Non-Reversing |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Material: | Sheet Steel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 00785901864721 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$658.30 / Each
Quantity:
- Square D Starter, General Purpose Type S, 600 V AC, 27 A, 50/60 Hz, 7-1/2 hp/10 hp Motor, 110/120 VAC Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Non-Reversing, Thermal Melting Alloy Overload Relay, NEMA 1, Starting Modes: Magnetic, Sheet Steel, 5.98 in W x 5.55 in D x 10 in H
8536SCG3V02S Application
For full voltage starting and stopping of AC squirrel cage motors applications8536SCG3V02S Item Features
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
- https://www.youtube.com/embed/MsloUt8sPL0
8536SCG3V02S Standards
UL Listed|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #2180718Part Number #8536SCG3V02SUNSPSC39121521UPC00785901864721
