Part Number # 8538SDASP4
SKU # 2225629
8538SDASP4

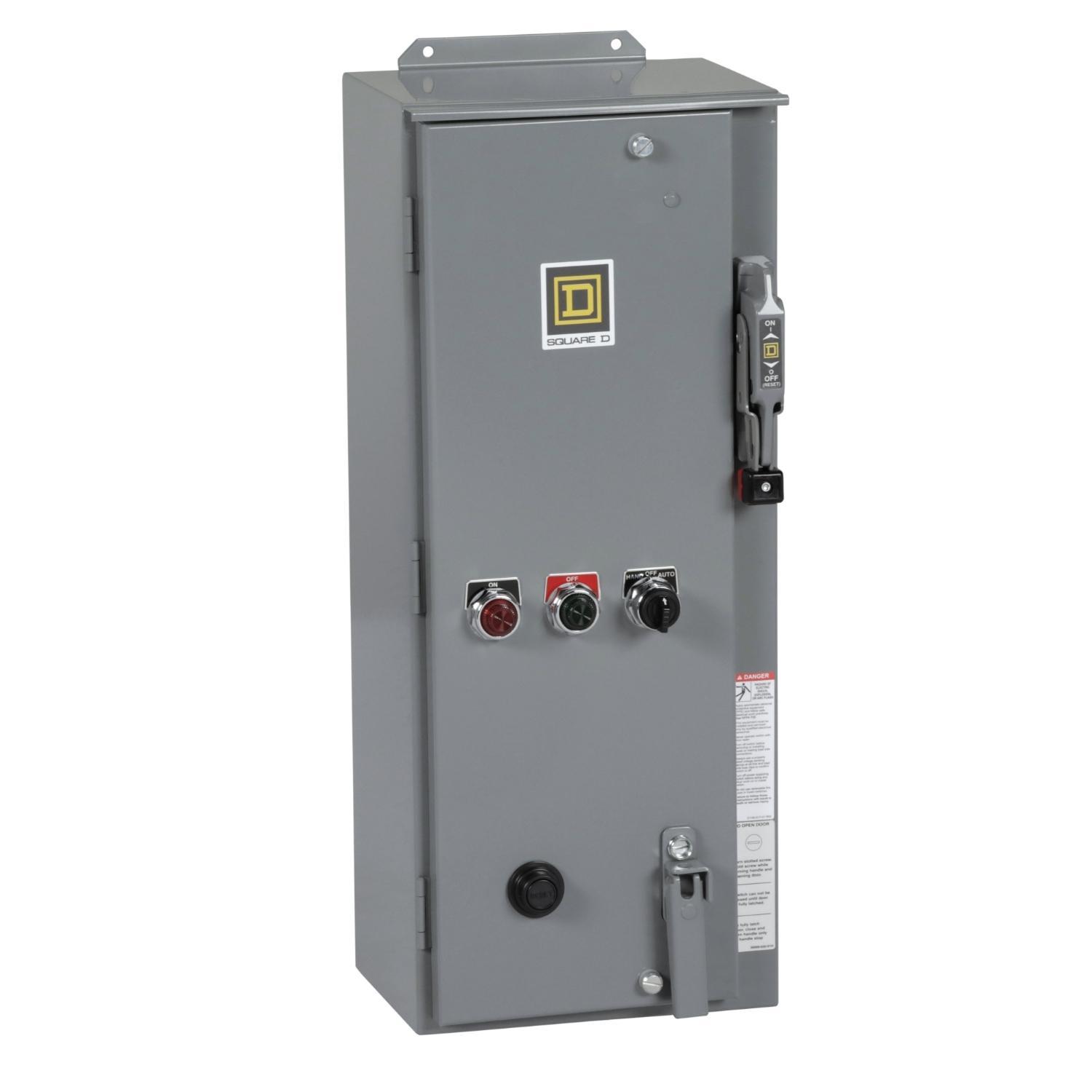

Square D 8538SDASP4 Combination Magnetic Starter
Part Number # 8538SDASP4
SKU # 2225629
Square D 8538SDASP4 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8538SDASP4 |
| SKU #: | 2225629 |
| Control Type: | Selector Switch HAND-OFF-AUTO |
| Dimensions: | 27.75 in H x 10.5 in W x 9.59 in D |
| Full Load Current: | 15 to 45, 15 to 45 A |
| Motor Power: | 10 hp at 200/230 VAC |
| Overload Relay: | Motor Logic Solid-State, Motor Logic™ Solid-State, Solid State Motor Logic |
| Reset Type: | Motor Logic® Solid State, Motor Logic™ Solid-State |
| Series: | 8538 |
| UNSPSC: | 39121521 |
| UPC: | 00785901876427 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 8538SDASP4 Combination Magnetic Starter
Brand: Square D
Part Number: 8538SDASP4
Square D Combination Magnetic Starter, Type S, Series: 8538, 600 VAC, 45 A, 50/60 Hz Frequency, 10 hp at 200/230 VAC Motor, 110 VAC at 50 Hz, 120 VAC at 60 Hz Coil, 3 Pole, Motor Logic Solid-State Reset, 3 ph, Box Lug Connection, Non-Reversing Action, Motor Logic Solid-State Overload Relay, 15 to 45 A Full Load, HAND/OFF/AUTO Selector Switch Control, NEMA 12 Enclosure, Sheet Steel, 32 to 104 deg F Operating, 27.75 in H x 10.5 in W x 9.59 in D Dimensions
Additional Description: SQD -8538SDASP4 8538SDA22V02CH30P51P52SX22Y74
Catalog Description: NEMA combination starter, Type S, 60A fusible disconnect, Size 2, 45A, 10HP at 240VAC, 3 phase, 3 pole, Motor Logic SSOLR, 120VAC coil, NEMA 12 [TAA]
8538SDASP4 Application
Indoor, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications8538SDASP4 Includes
External Reset, Separate Control Circuit and 60 A Type H/K Fuse8538SDASP4 Item Features
- Offer unmatched reliability and flexibility for quick access and less install downtime
- Longer lasting, energy efficient 30 mm LED pilot lights
- Specially designed, pliable foam-in-place cabinet seals that protect from harmful outside elements
- Operator smart by resetting the overload without special tools
- https://www.youtube.com/embed/RTyhiDcl_fA
8538SDASP4 Standards
CSA LR584 Class 3211-04|ECCN EAR99|UL File E152395 NKJH7|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov8538SDASP4 Warranty
18 MonthsSKU #2225629Part Number #8538SDASP4UNSPSC39121521UPC00785901876427
Image provided may only be a representation of final product and may include optional equipment
