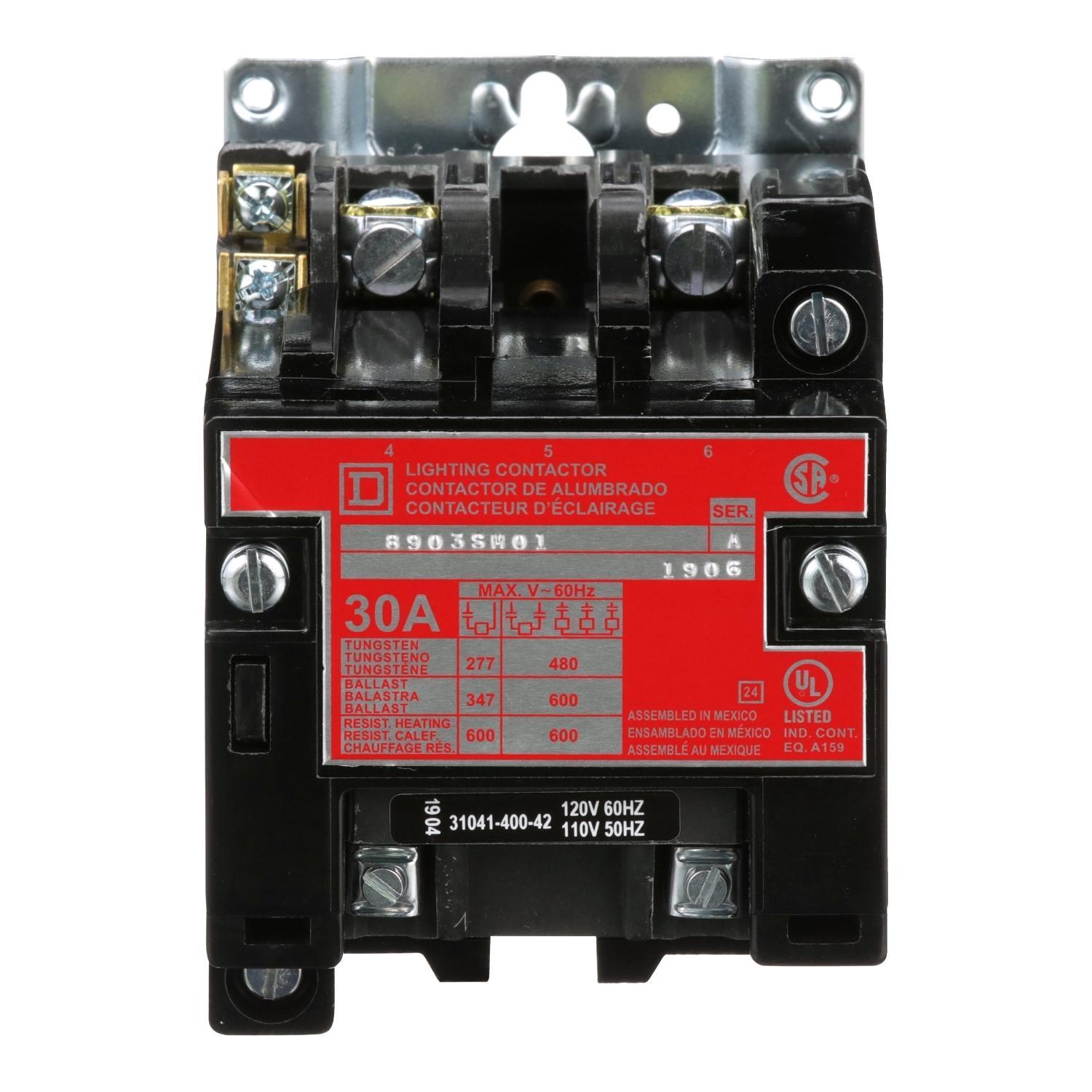

Square D 8903SMO1V02 Lighting Contactor
Part Number # 8903SMO1V02
SKU # 2224495
$412.08 / Each
Typical price:$446.00 / Each
Square D 8903SMO1V02 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8903SMO1V02 |
| SKU #: | 2224495 |
| Coil Voltage: | 110/120, 110/120 V AC, 110/120 VAC |
| Contact Rating: | 30, 30 A |
| Dimensions: | 107 mm x 82 mm x 89 mm, 107 x 82 x 89 |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 2 |
| Operating Cycles: | 10000, 10000 cpm |
| Operating Temperature: | 0 to 40, 0 to 40 deg C |
| Series: | 8903 |
| Terminal Type: | Screw/Clamp/Lug |
| Type: | Type S Electrically Held, Type S Electrically Held Multi-Pole |
| Wattage: | 10.3/11.9/19.7/23.9/30, 10.3/11.9/19.7/23.9/30 kW |
| Connection type: | Lug/Screw Clamp |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901619536 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$412.08 / Each
Typical price:$446.00 / Each
Quantity:
- Square D Lighting Contactor, Type S Electrically Held Multi-Pole, Series: 8903, 110/120 V AC Coil, 30 A Maximum Load Current, 2 Pole, 50/60 Hz Frequency, 10.3/11.9/19.7/23.9/30 kW Wattage, 30 A Contact, Lug/Screw Clamp Connection, Open Enclosure, 10000 cpm Operating Cycles, 0 to 40 deg C Operating, Surface Mounting, 107 mm x 82 mm x 89 mm Dimensions
8903SMO1V02 Application
For one stop shopping, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance, the contactors can also be used for resistance heating loads applications8903SMO1V02 Item Features
- Customizable with hundreds of combinations of contactors, starters and accessories
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils rather than replacing the entire product
8903SMO1V02 Standards
CSA File No. LR60905 Class 3231-01|ECCN: EAR99|UL File No. E78427 CCN Guide No. NRNT|PROP65: This product can expose you to chemicals including: Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2224495Part Number #8903SMO1V02UNSPSC39121529UPC00785901619536
