Part Number # 8903SQG2V02
SKU # 2279617
Image Disclaimers Message
8903SQG2V02

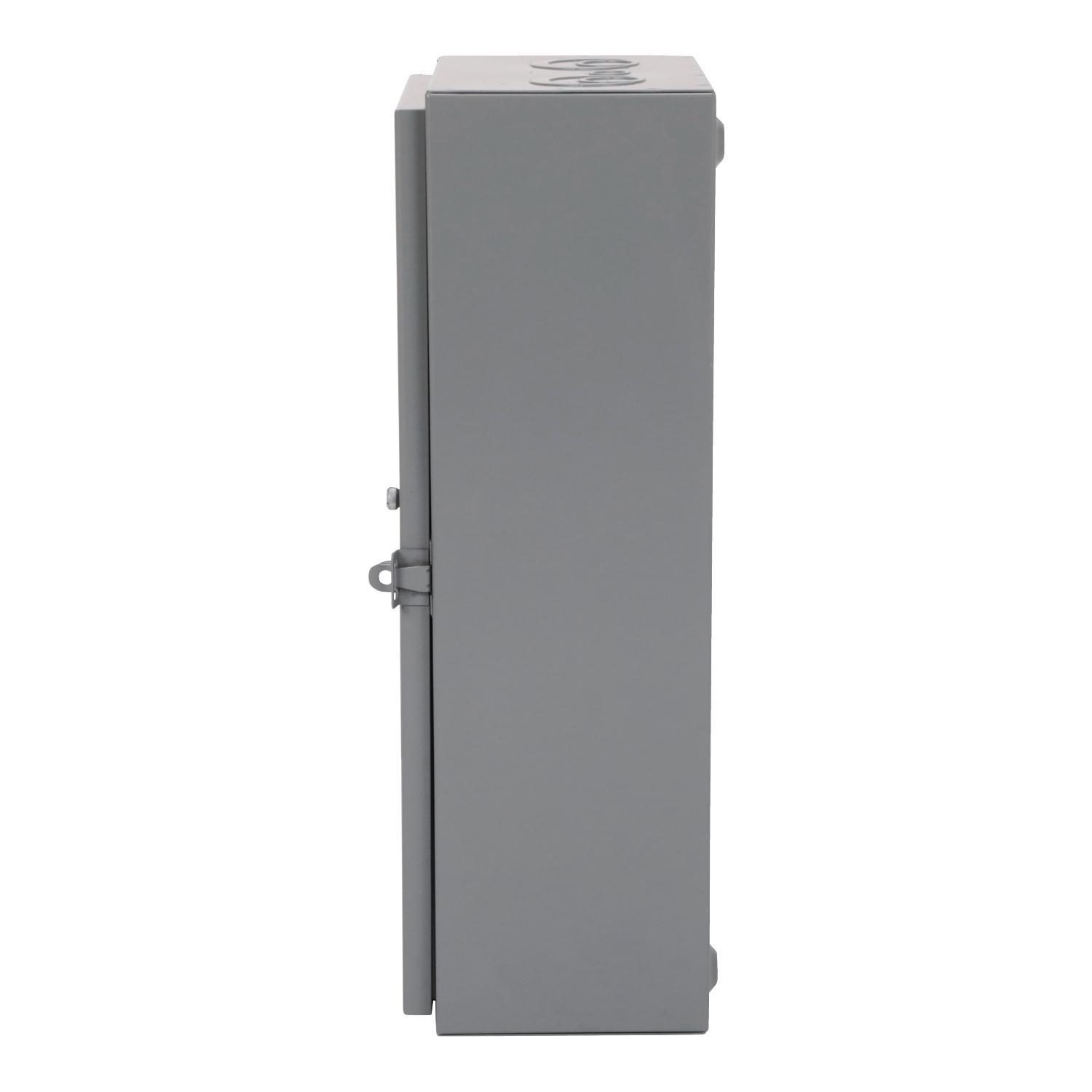

Square D 8903SQG2V02 Lighting Contactor
Part Number # 8903SQG2V02
SKU # 2279617
$1584.56 / Each
Typical price:$1715.00 / Each
Square D 8903SQG2V02 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8903SQG2V02 |
| SKU #: | 2279617 |
| Coil Voltage: | 110/120, 110/120 V AC, 110/120 VAC |
| Contact Rating: | 100, 100 A |
| Dimensions: | 228 mm x 286 mm x 639 mm, 228 x 286 x 639 |
| Enclosure Type: | NEMA 1 |
| Finish: | Painted |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 3000, 3000 cpm |
| Operating Temperature: | 0 to 40, 0 to 40 deg C |
| Series: | 8903 |
| Terminal Type: | Screw/Clamp/Lug |
| Type: | Type S Electrically Held, Type S Electrically Held Multi-Pole |
| Wattage: | 34.6/39.8/65.8/79.8/99, 34.6/39.8/65.8/79.8/99 kW |
| Connection type: | Lug/Screw Clamp |
| Country of origin: | MX |
| Material: | Sheet Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901619437 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1584.56 / Each
Typical price:$1715.00 / Each
Quantity:
- Square D Lighting Contactor, Type S Electrically Held Multi-Pole, Series: 8903, 110/120 V AC Coil, 100 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 34.6/39.8/65.8/79.8/99 kW Wattage, 100 A Contact, Lug/Screw Clamp Connection, NEMA 1 Enclosure, 3000 cpm Operating Cycles, 0 to 40 deg C Operating, Surface Mounting, Sheet Steel, Painted, 228 mm x 286 mm x 639 mm Dimensions
8903SQG2V02 Application
For one stop shopping, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance, the contactors can also be used for resistance heating loads applications8903SQG2V02 Item Features
- Customizable with hundreds of combinations of contactors, starters and accessories
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils rather than replacing the entire product
8903SQG2V02 Standards
CSA File No. LR60905 Class 3231-01|ECCN: EAR99|UL File No. E78427 CCN Guide No. NRNT|PROP65: This product can expose you to chemicals including: Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2279617Part Number #8903SQG2V02UNSPSC39121529UPC00785901619437
