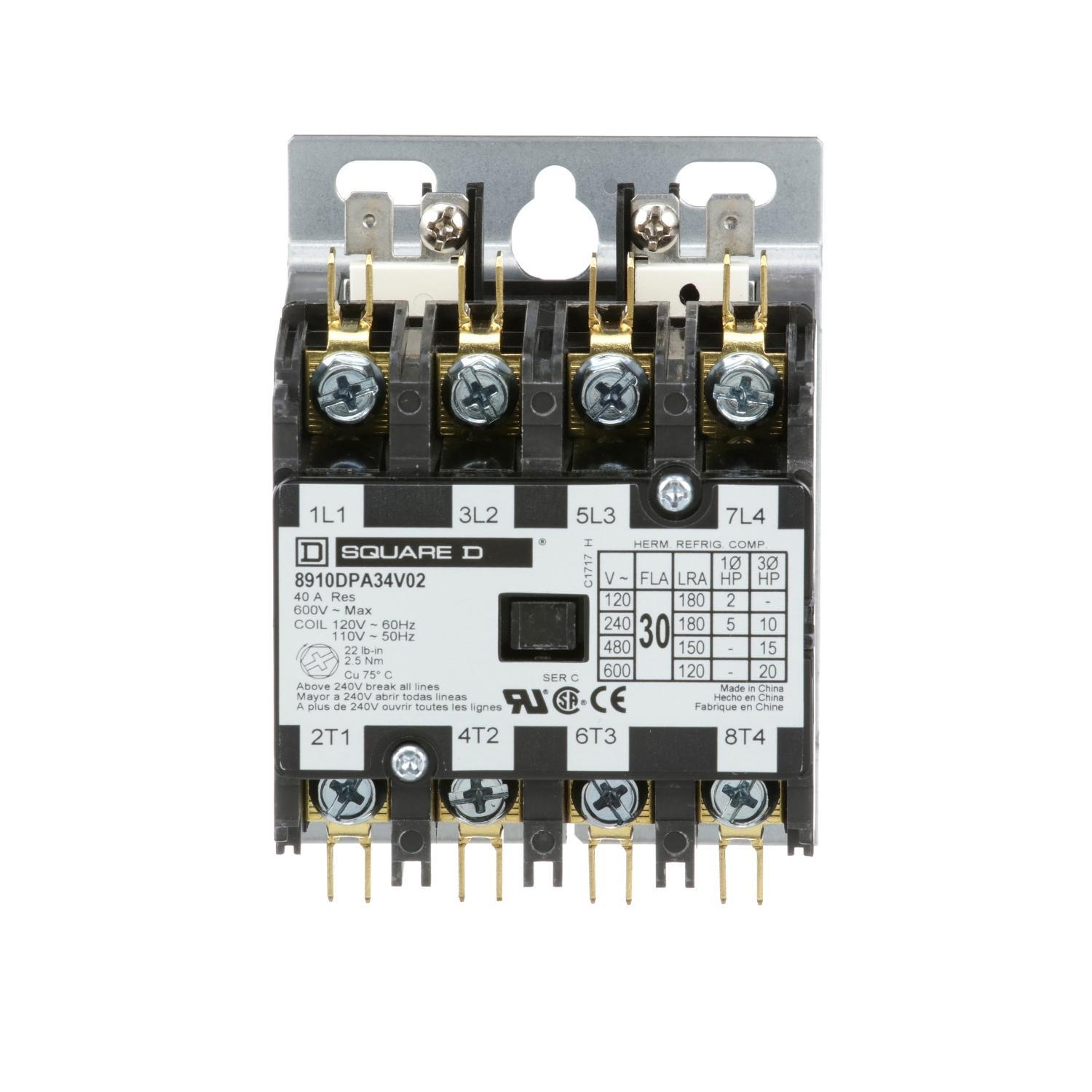

Square D 8910DPA34V02 Definite Purpose Contactor
Part Number # 8910DPA34V02
SKU # 967873
$129.67 / Each
Square D 8910DPA34V02 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8910DPA34V02 |
| SKU #: | 967873 |
| Coil Power Rating: | 2 hp at 115 VAC/5/10 hp at 230 VAC/15 hp at 460 VAC/20 hp at 575 VAC |
| Contact Rating: | 600 |
| Dimensions: | 3.17 in W x 3.11 in D x 4 in H, 4 in H x 3.17 in W x 3.11 in D |
| Operating Cycles: | 500000 Mechanical/200000 Electrical, 500000 cycles Mechanical/200000 cycles Electrical cycles |
| Operating Temperature: | 32 to 149, 32 to 149 deg F |
| Series: | 8910 |
| Type: | 3-Phase Electro-Mechanical, 3-Phase Electromechanical Type DPA |
| Connection type: | Binding Head Screw |
| Mounting type: | DIN Track/Panel |
| UNSPSC: | 39121529 |
| UPC: | 00785901073505 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$129.67 / Each
Quantity:
- Square D, 8910DPA34V02, Definite Purpose Contactor, 3-Phase Electromechanical Type DPA, Series: 8910, 110/120 V AC Coil, 30 A Maximum Load Current, 2 hp at 115 VAC/5/10 hp at 230 VAC/15 hp at 460 VAC/20 hp at 575 VAC Coil, 4 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 4NO Contact Configuration, 600 VAC Contact, Binding Head Screw Connection, Quick-Connect Terminal, Open Enclosure, 500000 cycles Mechanical/200000 cycles Electrical cycles Operating Cycles, 32 to 149 deg F Operating, DIN Track/Panel Mounting, 3.17 in W x 3.11 in D x 4 in H Dimensions
8910DPA34V02 Application
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications8910DPA34V02 Item Features
- Electrical systems protection from overloads and short circuits
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
- https://www.youtube.com/watch?v=zxW2L1mHFtg
8910DPA34V02 Standards
CCN Guide No. NLDX2|CE Certified|CSA File No. LR25490/Class 3211-04|RoHS Compliant|UL File No. E3190|UL Recognized|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.govSKU #967873Part Number #8910DPA34V02UNSPSC39121529UPC00785901073505
