Part Number # 8910DPA42V14
SKU # 2279958
Image Disclaimers Message
8910DPA42V14

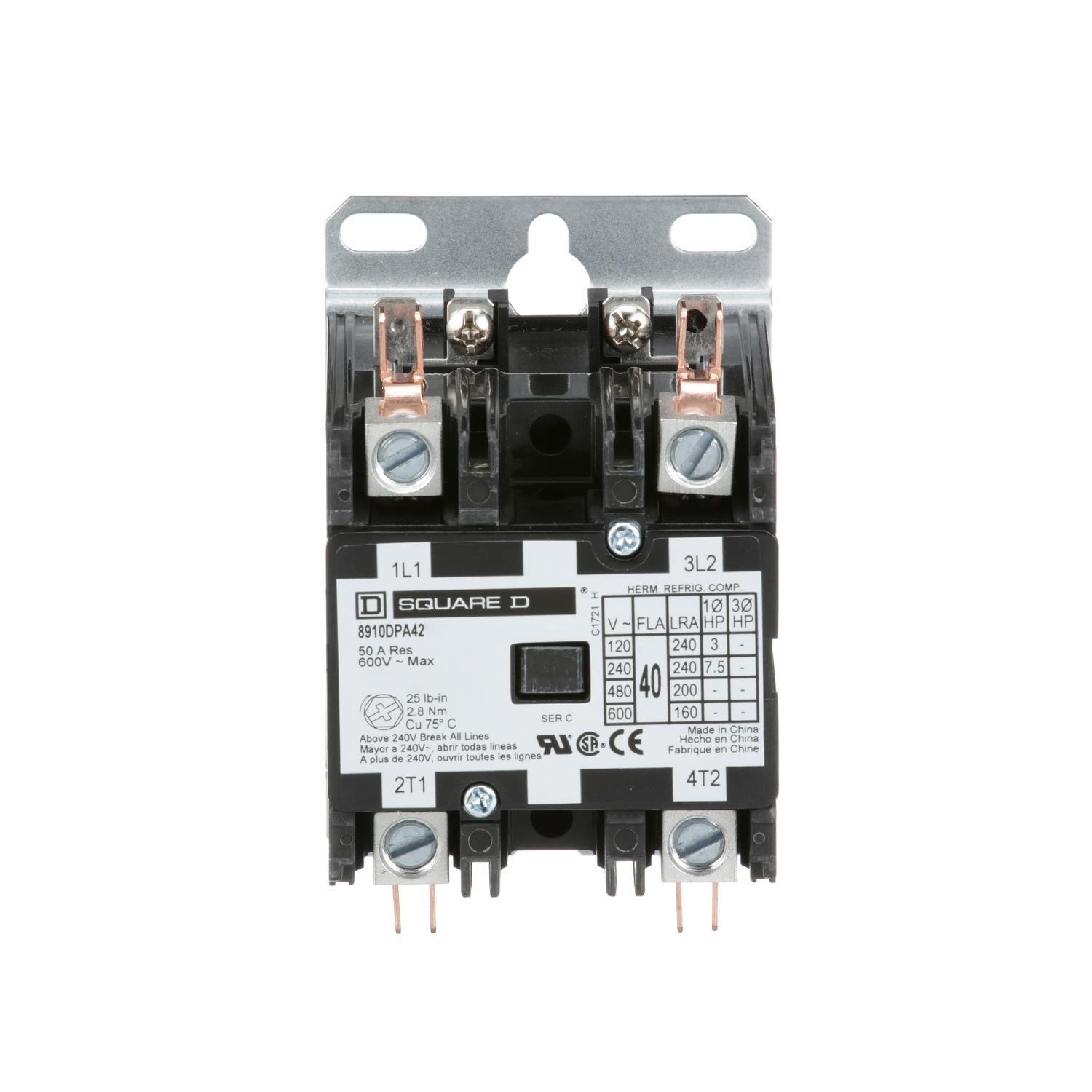

Square D 8910DPA42V14 Definite Purpose Contactor
Part Number # 8910DPA42V14
SKU # 2279958
$103.48 / Each
Square D 8910DPA42V14 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8910DPA42V14 |
| SKU #: | 2279958 |
| Coil Power Rating: | 3 hp at 115 VAC/7.5 hp at 230 VAC |
| Coil Voltage: | 24, 24 V AC, 24 VAC |
| Contact Configuration: | 2NO |
| Contact Rating: | 600, 600 V AC, 600 VAC |
| Dimensions: | 2.5 in W x 3.12 in D x 4 in H, 4 in H x 2.5 in W x 3.12 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 2 |
| Operating Cycles: | 500000 Mechanical/200000 Electrical, 500000 cycles Mechanical/200000 cycles Electrical, 500000 cycles Mechanical/200000 cycles Electrical cycles |
| Operating Temperature: | 32 to 149, 32 to 149 deg F |
| Series: | 8910 |
| Terminal Type: | Quick-Connect |
| Type: | 1-Phase Electro-Mechanical, Type DPA 1-Phase Electromechanical |
| Connection type: | Binding Head Screw |
| Country of origin: | CN |
| Mounting type: | DIN Track/Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901073482 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$103.48 / Each
Quantity:
- Square D Definite Purpose Contactor, Type DPA 1-Phase Electromechanical, Series: 8910, 24 V AC Coil, 40 A Maximum Load Current, Coil Power Rating: 3 hp at 115 VAC/7.5 hp at 230 VAC, 2 Pole, 50/60 Hz, Non-Reversing Contact, 2NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500000 cycles Mechanical/200000 cycles Electrical cycles Operating Cycles, 32 to 149 deg F Operating, DIN Track/Panel Mount, 2.5 in W x 3.12 in D x 4 in H
8910DPA42V14 Application
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications8910DPA42V14 Item Features
- Electrical systems protection from overloads and short circuits
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
8910DPA42V14 Standards
CCN NLDX2|CE Certified|CSA File No. LR25490/Class 3211-04|RoHS Compliant|UL File No. E3190|UR Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.govSKU #2279958Part Number #8910DPA42V14UNSPSC39121529UPC00785901073482
