Part Number # 8910DPA44V09
SKU # 2219287
8910DPA44V09

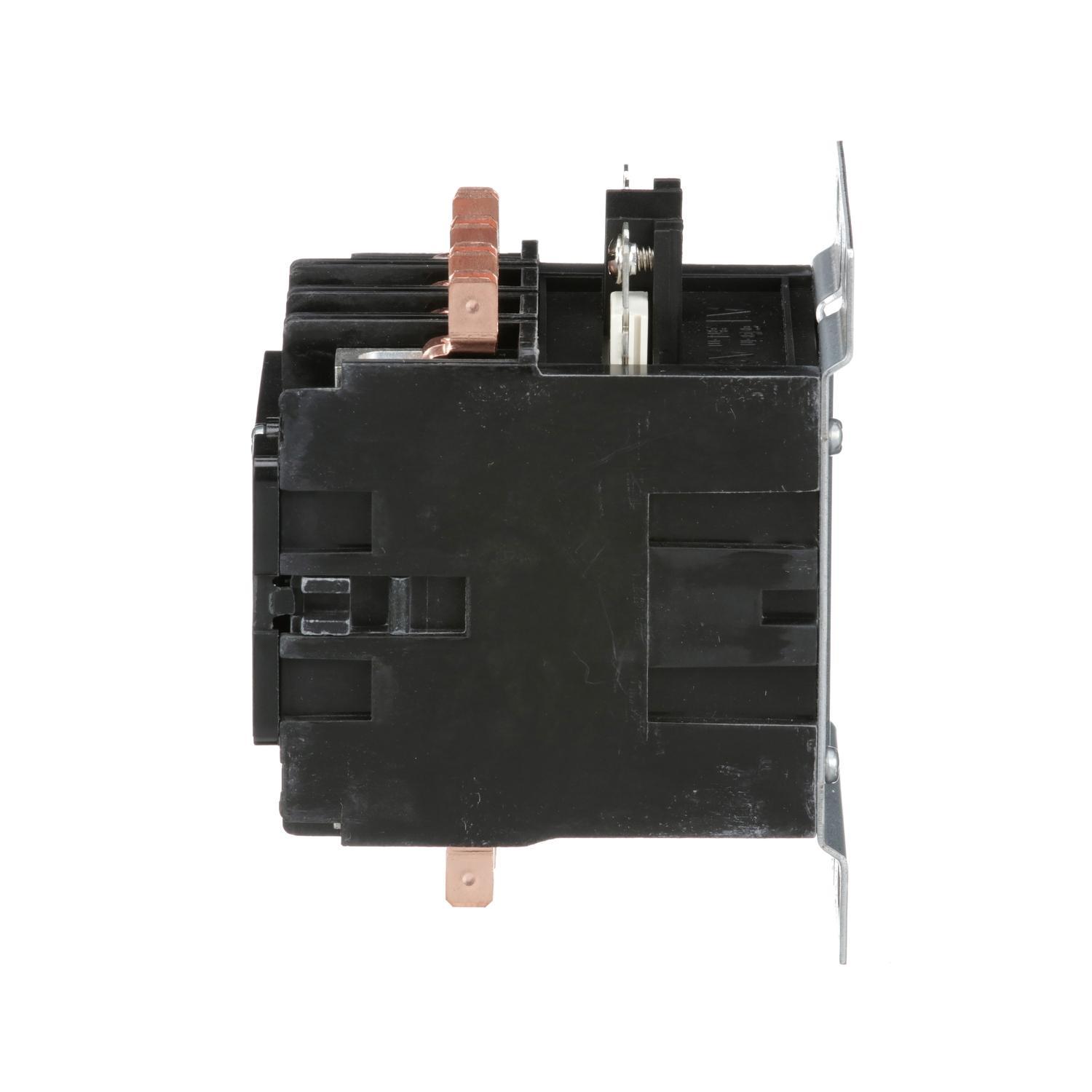

Square D 8910DPA44V09 Definite Purpose Contactor
Part Number # 8910DPA44V09
SKU # 2219287
Square D 8910DPA44V09 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8910DPA44V09 |
| SKU #: | 2219287 |
| Coil Power Rating: | 3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC |
| Coil Voltage: | 208/220/240, 208/220/240 V AC, 208/220/240 VAC |
| Contact Rating: | 600 |
| Dimensions: | 2.5 in W x 3.12 in D x 4 in H, 4 in H x 2.5 in W x 3.12 in D |
| Operating Cycles: | 500000 |
| Operating Temperature: | 0 to 65, 0 to 65 deg C |
| Series: | 8910 |
| Type: | 3-Phase Electro-Mechanical, 3-Phase Electromechanical Type DPA |
| Connection type: | Binding Head Screw |
| UNSPSC: | 39121529 |
| UPC: | 00785901749837 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 8910DPA44V09 Definite Purpose Contactor
Brand: Square D
Part Number: 8910DPA44V09
Square D Definite Purpose Contactor, 3-Phase Electromechanical Type DPA, Series: 8910, 208/220/240 VAC Coil, 40 A Maximum Load Current, Coil Power Rating: 3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC, 4 Pole, 50/60 Hz, Non-Reversing Contact, 4NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500000 cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mount, 2.5 in W x 3.12 in D x 4 in H
Additional Description: SQD -8910DPA44V09 CONTACTOR 600VAC 40AMP DPA +OPTIONS
Catalog Description: Contactor, Definite Purpose, 40A, 4 pole, 25HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
8910DPA44V09 Application
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications8910DPA44V09 Item Features
- Electrical systems protection from overloads and short circuits
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
8910DPA44V09 Standards
CCN NLDX2|CE Certified|CSA File No. LR25490/Class 3211 04|ECCN EAR99|RoHS Compliant|UL File No. E3190|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.govSKU #2219287Part Number #8910DPA44V09UNSPSC39121529UPC00785901749837
Image provided may only be a representation of final product and may include optional equipment
