8910DPA53V02

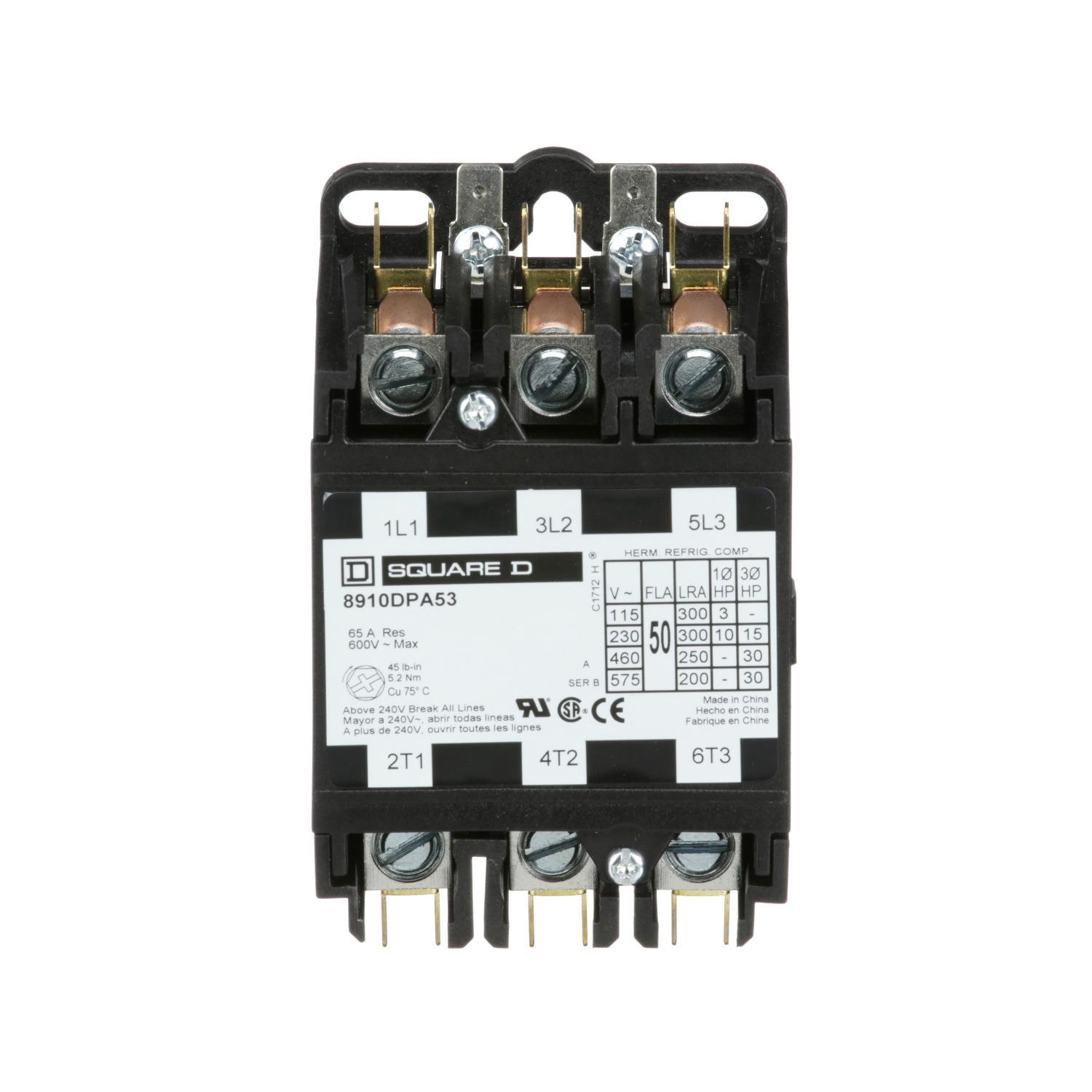

Square D 8910DPA53V02 Definite Purpose Contactor
Part Number # 8910DPA53V02
SKU # 2209099
Square D 8910DPA53V02 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8910DPA53V02 |
| SKU #: | 2209099 |
| Coil Power Rating: | 3 hp at 115 VAC/10 hp at 230 VAC/15 hp at 230 VAC/30 hp 460/575 VAC |
| Coil Voltage: | 110/120, 110/120 V AC, 110/120 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 600 V AC, 600 VAC |
| Dimensions: | 60.2 mm H x 76 mm W x 82.5 mm D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 500000, 500000 Cycles |
| Operating Temperature: | 0 to 65, 0 to 65 deg C |
| Series: | 8910DPA |
| Terminal Type: | Box Lug/Quick-Connect |
| Type: | Electro-Mechanical |
| Connection type: | Box Lug/Quick-Connect, Quick-Connect/Box Lug |
| Country of origin: | CN, US |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901080756 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 8910DPA53V02 Definite Purpose Contactor
Brand: Square D
Part Number: 8910DPA53V02
Square D Definite Purpose Contactor, Electro-Mechanical, Series: 8910DPA, 110/120 VAC Coil, 50 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 3NO Contact Configuration, Box Lug/Quick-Connect Connection, Box Lug/Quick-Connect Terminal, Open Enclosure, 500000 Cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mounting, 60.2 mm H x 76 mm W x 82.5 mm D Dimensions
Additional Description: SQD -8910DPA53V02 CONTACTOR 600VAC 50AMP DPA +OPTIONS
Catalog Description: Contactor, Definite Purpose, 50A, 3 pole, 30HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open
8910DPA53V02 Application
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications8910DPA53V02 Item Features
- Electrical systems protection from overloads and short circuits
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
- https://www.youtube.com/watch?v=yP4g9tSDud4
8910DPA53V02 Standards
CCN Guide No. NLDX2|CE Certified|CSA File No. LR25490/Class 3211-04|RoHS Compliant|UL File No. E3190|UL Recognized|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.govSKU #2209099Part Number #8910DPA53V02UNSPSC39121529UPC00785901080756
