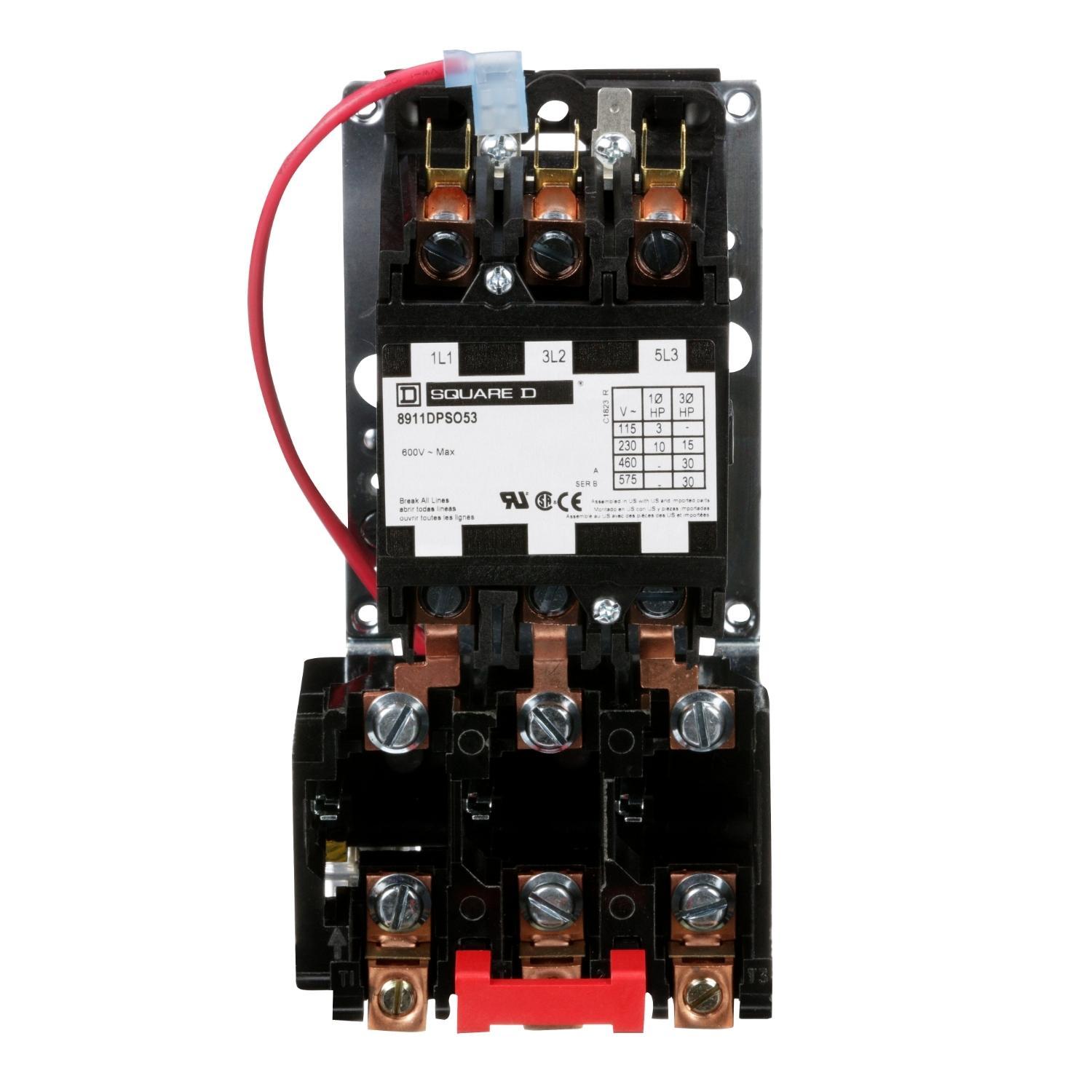

Square D 8911DPSO53V02 Definite Purpose Starter
Part Number # 8911DPSO53V02
SKU # 2329279
8911DPSO53V02
Square D 8911DPSO53V02 Definite Purpose Starter
Part Number # 8911DPSO53V02
SKU # 2329279
Square D 8911DPSO53V02 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8911DPSO53V02 |
| SKU #: | 2329279 |
| Dimensions: | 3-1/2 in W x 4 in D x 7 in H |
| Motor Power: | 3 hp at 115 VAC, 10 hp at 230 VAC, 15 hp at 230 VAC, 30 hp at 460/575 VAC |
| Series: | 8911 |
| Type: | Type DPS |
| UNSPSC: | 39121521 |
| UPC: | 00785901192541 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 8911DPSO53V02 Definite Purpose Starter
Brand: Square D
Part Number: 8911DPSO53V02
Square D Definite Purpose Starter, Type DPS, Series: 8911, 600 VAC, 50 A, 50/60 Hz Frequency, 3 hp at 115 VAC, 10 hp at 230 VAC, 15 hp at 230 VAC, 30 hp at 460/575 VAC Motor, 110 V AC at 50 Hz, 120 V AC at 60 Hz Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Non-Reversing Action, Open Enclosure, 3-1/2 in W x 4 in D x 7 in H Dimensions
Additional Description: SQD -8911DPSO53V02 STARTER 600VAC 50AMP DPS +OPTIONS
Catalog Description: NEMA starter, Definite Purpose, 50A, 30HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open
8911DPSO53V02 Application
Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment Applications8911DPSO53V02 Item Features
- Definite purpose starters are inexpensive starters for applications with relatively low duty cycles
- Small and compact design
8911DPSO53V02 Standards
RoHS Compliant|CSA File No. LR25490 Class 3211-04|ECCN: EAR99|UL File No. E3190|CCN Guide No. NLDX2|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2329279Part Number #8911DPSO53V02UNSPSC39121521UPC00785901192541
Image provided may only be a representation of final product and may include optional equipment
