Square D 9001K2L35R21H13 Harmony Illuminated Pushbutton
Image Disclaimers Message
Square D 9001K2L35R21H13 Harmony Illuminated Pushbutton
Square D 9001K2L35R21H13 Harmony Illuminated Pushbutton
Part #:9001K2L35R21H13
SKU #: 150766
Key Features
Part #:9001K2L35R21H13
SKU #: 150766
Brand: Square D
Bezel/Housing: Polished Chrome Metal
Contact Configuration: 1CO
Contact Rating: 10 A at 24/28 VAC/VDC
Enclosure Type: NEMA 1/2/3/3R/4/6/12/13
Lamp Type: BA9S Incandescent, Incandescent

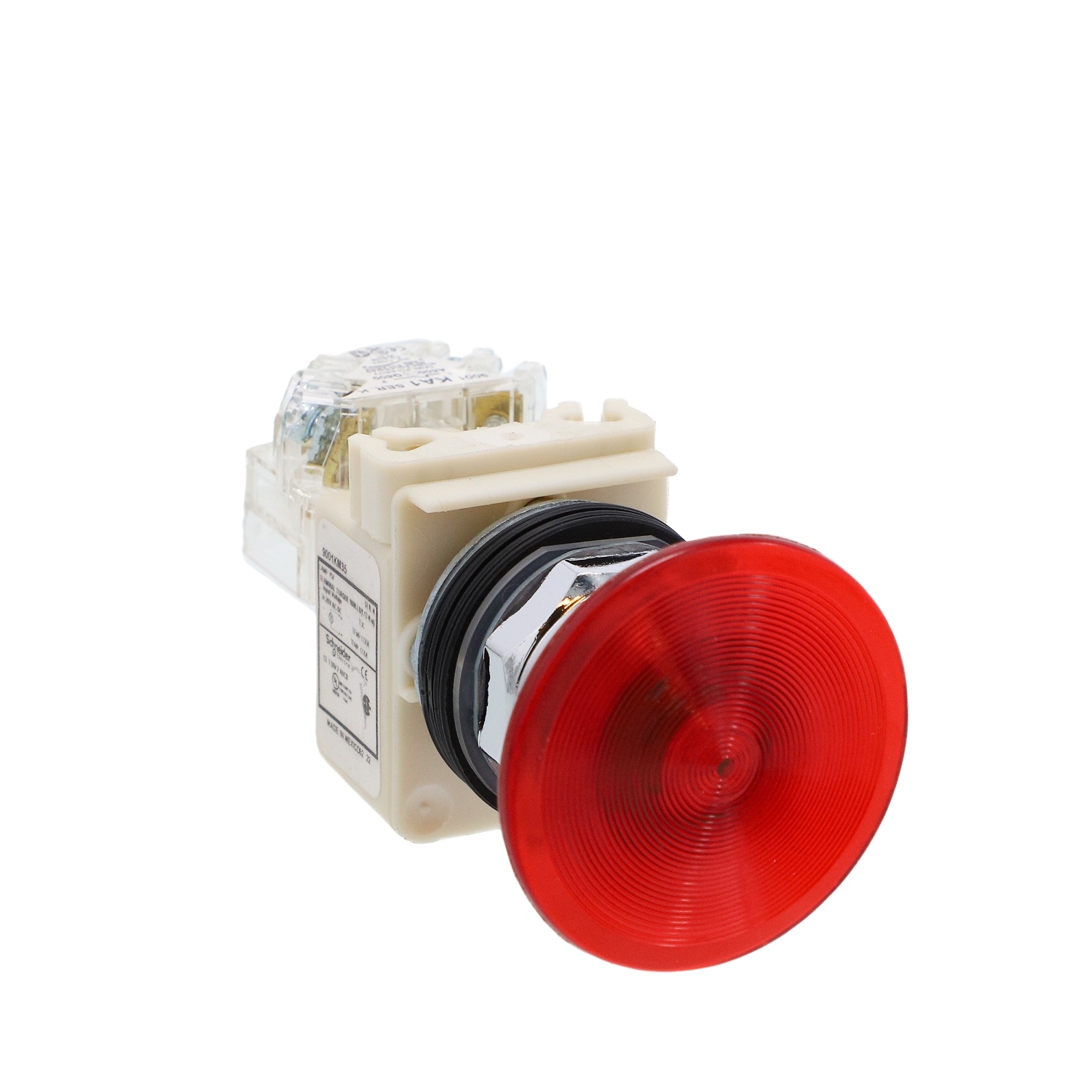

- This Schneider Electric Harmony 9001K modular illuminated red push-button with screw-in head is supplied with a contact block
- It has a chromium-plated metal bezel and is supplied with a 24VAC/DC integral LED
- It has 57mm mushroom head with 1 x NO + 1 x N
- Red projecting operator profile
- Direct light block supply
- 24 to 28 VAC rated supply voltage
- 10 A (AC-15) and 10 A (DC-13) rated operational current
- Without guard rail
- https://www.youtube.com/embed/z4UUZQz35-w
Square D 9001K2L35R21H13 Harmony Illuminated Pushbutton
Square D Harmony Illuminated Pushbutton, Type T-K Standard, Series: 9001K, 30 mm Size, 1CO Contact Configuration, Momentary Contact Mode, 10 A at 24/28 VAC/VDC Contact, Spring Return/2.25 mm Mushroom Head Operator, BA9S Incandescent Lamp, Bezel/Housing: Polished Chrome Metal, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13 Enclosure, Panel Mounting, Red
Additional Description: SQD -9001K2L35R21H13 (N) PUSH BUTTON 600VAC 10A 30MM T-K +OPTIONS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Illuminated push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, spring return, 24-28V, 1 C/O
