Part Number # 9001KP35LGG6
SKU # 2403930
Image Disclaimers Message
Brand: Schneider Electric
9001KP35LGG6

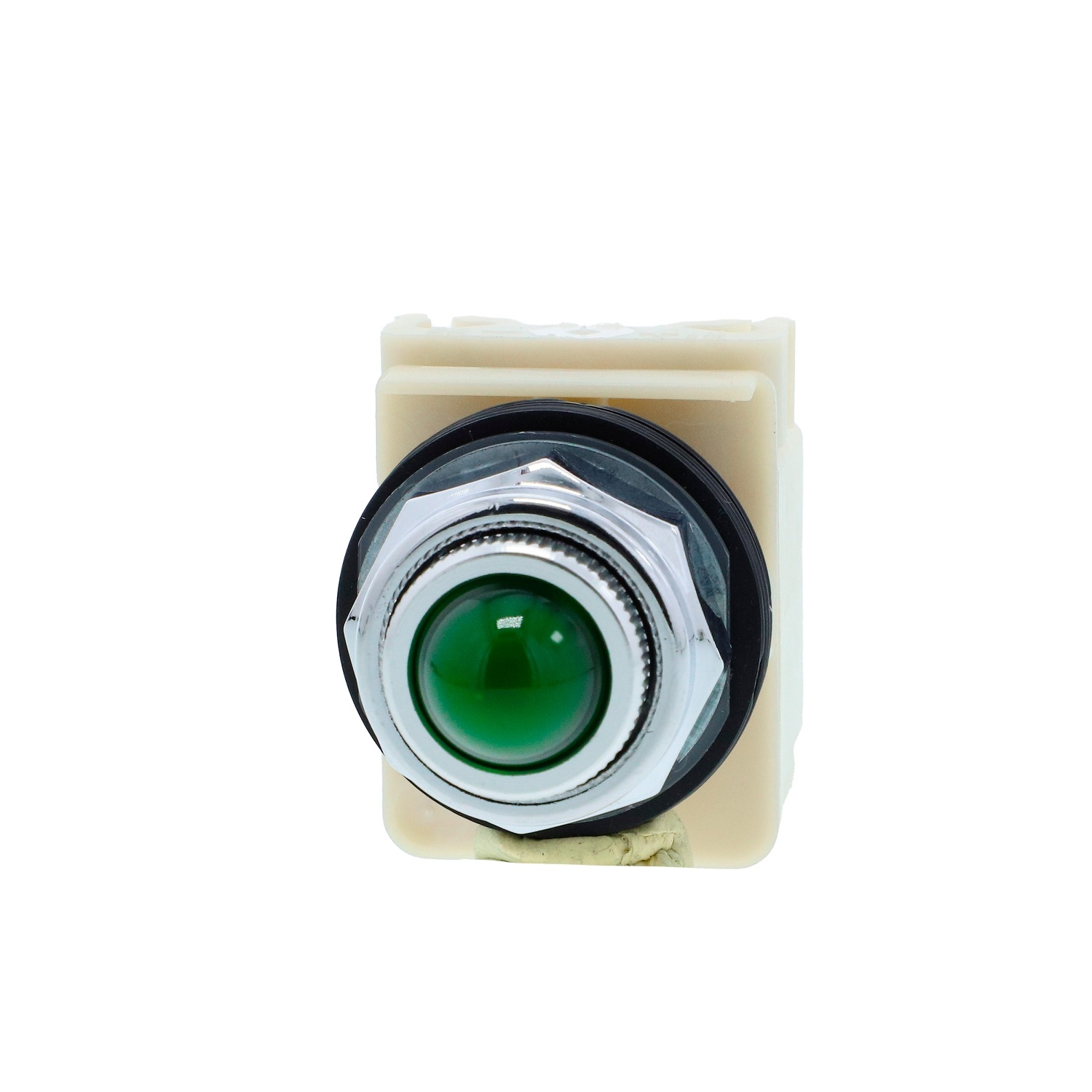

Square D 9001KP35LGG6 Harmony Pilot Light
Part Number # 9001KP35LGG6
SKU # 2403930
$160.02 / Each
Schneider Electric 9001KP35LGG6 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001KP35LGG6 |
| SKU #: | 2403930 |
| Base Type: | BA9s |
| Bezel/Housing: | Polished Chrome Metal/Thermoplastic Polyester |
| Enclosure Type: | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions: | -25 to 70 Operating/-40 to 70 Storage/7 gn Vibration Resistance/50 gn Shock Resistance |
| Lamp Type: | Green LED |
| Lens Color: | Green |
| Lens Material: | Glass |
| Lens Type: | Domed |
| Series: | 9001K |
| Size: | 30 mm |
| Terminal Type: | Screw Clamp |
| Type: | Type K Standard Heavy Duty |
| Wattage: | 0.28 VA |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121534 |
| UPC: | 00785901969280 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$160.02 / Each
Quantity:
- Square D Harmony Pilot Light, Type K Standard Heavy Duty, Series: 9001K, 24/28 V AC/V DC, 0.28 VA Wattage, Domed Lens, Green Lens, Glass Lens, Green LED Lamp, Bezel/Housing: Polished Chrome Metal/Thermoplastic Polyester, 30 mm Size, Round Shape, BA9s Base, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13/IP66 Enclosure, Panel Mounting, Environmental Conditions: -25 to 70 Operating/-40 to 70 Storage/7 gn Vibration Resistance/50 gn Shock Resistance
9001KP35LGG6 Application
Food, Beverage, Chemical, Mining, Mineral, Metal Processing, Pulp/Paper, Waste Water Treatment Plants, Automotive, Crane/Hoists, Machine Tools, Airport, Transportation, Textile, Heavy Industry, Robust, Signaling and Hazardous Location Applications9001KP35LGG6 Item Features
- This Schneider Electric Harmony 9001K green pilot light with integral LED and glass dome is supplied with 24Vac/dc
- It fits in a 30mm hole
- It has a chromium-plated metal bezel
9001KP35LGG6 Standards
CE Certified|CSA LR25490|Class 3211 03|CSA C22.2 File No 14|EN/IEC 60947-5-4|EN/IEC 60947-5-1|EN/IEC 60947-1|IEC 60068-2-27|IEC 60068-2-6|IEC 60529|JIS C 852|JIS C8201-1|JIS C8201-5-1|Green Premium|RoHS Compliant|UL E78403|CCN|NKCR|UL 508|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2403930Part Number #9001KP35LGG6UNSPSC39121534UPC00785901969280
