9001KR20

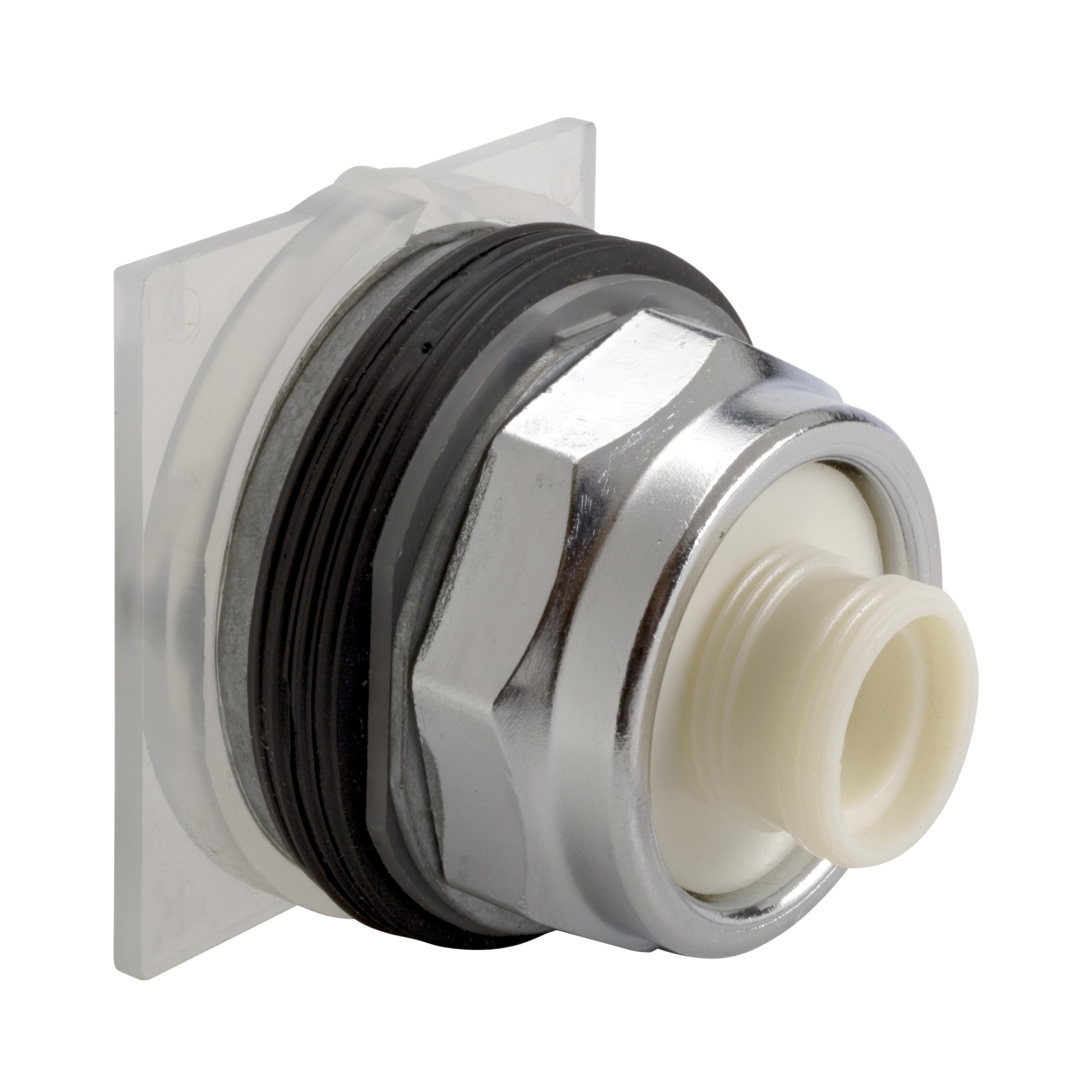

Square D 9001KR20 Harmony Non-Illuminated Pushbutton Operator
Part Number # 9001KR20
SKU # 2182864
Square D 9001KR20 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9001KR20 |
| SKU #: | 2182864 |
| Bezel/Housing: | Polished Chrome Metal |
| Contact Rating: | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Contacts: | Slow Break, Slow-Break |
| Enclosure Type: | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Number of Positions: | 2 |
| Operator Type: | Flush/Full Guard Button/Mushroom Head/Spring Return |
| Series: | 9001KR |
| Size: | 30, 30 mm |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Type K Dusttight/Oiltight/Watertight Heavy Duty Round Unmarked |
| Country of origin: | US |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901173960 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 9001KR20 Harmony Non-Illuminated Pushbutton Operator
Brand: Square D
Part Number: 9001KR20
Square D Harmony Non-Illuminated Pushbutton Operator, Type K Dusttight/Oiltight/Watertight Heavy Duty Round Unmarked, Series: 9001KR, 30 mm Size, Momentary Contact Mode, Slow-Break Contacts, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, 2 Positions, Flush/Full Guard Button/Mushroom Head/Spring Return Operator, NEMA 1/2/3/3R/4/6/12/13/IP66 Enclosure, Screw Clamp Terminal, Panel Mounting, Bezel/Housing: Polished
Additional Description: SQD -9001KR20 30MM PUSH BUTTON OPERATOR WITHOUT KNOB +OPTIONS
Catalog Description: 30mm push button, Type K, nonilluminated momentary push button operator, for screw on mushroom button, NEMA 4, 13
9001KR20 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation, Textile, Heavy Industries, Robust, Indoor/Outdoor Applications9001KR20 Item Features
- Without contact block
- Full guard in metal
- https://www.youtube.com/embed/za0gVi-W-TM
9001KR20 Standards
RoHS Compliant|UL File No. E78403|CCN Guide No. NKCR|CSA File No. LR25490 Class 3211-03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60529|JIS C- 4520/852|UL 508|CSA File No. 14|Green Premium Listed|REACH Compliant|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #2182864Part Number #9001KR20UNSPSC39122216UPC00785901173960
