9001KR25RH5

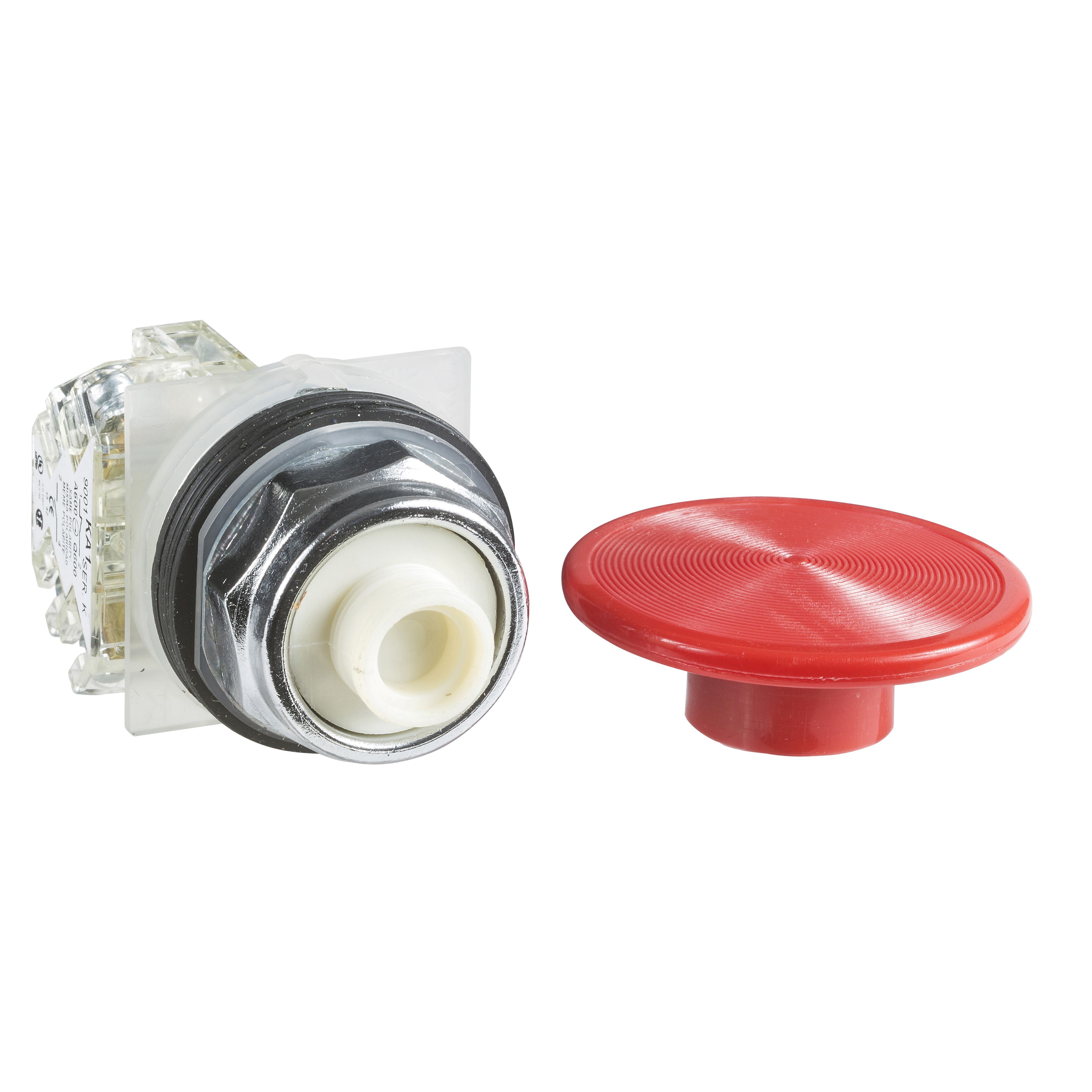

Square D 9001KR25RH5 Harmony Non-Illuminated Pushbutton
Part Number # 9001KR25RH5
SKU # 2171149
$175.70 / Each
Square D 9001KR25RH5 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9001KR25RH5 |
| SKU #: | 2171149 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Chromium Plated Metal, Polished Chrome Metal |
| Contact Configuration: | 1NO |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 460 V AC, 1.2 A at 600 V AC/0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/12/13/IP65/IP66 |
| Environmental Conditions: | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Operator Type: | Spring Return, Spring Return/Mechanically Interlocked |
| Series: | 9001KR |
| Size: | 30, 30 mm |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Type K Heavy Duty, Type K Heavy Duty Dusttight/Oiltight/Watertight Mechanically Interlocked |
| Color: | Red |
| Connection type: | Screw-On |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901033585 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$175.70 / Each
Quantity:
- Square D Harmony Non-Illuminated Pushbutton, Type K Heavy Duty, Series: 9001KR, 30 mm Size, 1NO Contact Configuration, Momentary/Slow Break Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 460 V AC, 1.2 A at 600 V AC/0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC Contact, Bezel/Housing: Chromium Plated Metal, Mushroom Head Actuator, Screw-On Connection, Screw Clamp Terminal, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, Panel Mounting, Red, Environmental Conditions: -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
9001KR25RH5 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Petrochemical, Material Handling, Metallurgy and Industrial Applications9001KR25RH5 Item Features
- This Schneider Electric Harmony 9001K modular red push-button has 2 positions, operates with spring return mechanism
- It has a round shape and is supplied with contact block, 57mm mushroom head and 1 x NO contact
- It fits in a 30mm hole
- https://www.youtube.com/embed/z4UUZQz35-w
9001KR25RH5 Standards
CCN NKCR|CE Marked|CSA C22.2 No. 14|CSA File No. LR25490 Class 321103|ECCN: EAR99|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|Green Premium|JIS C 4520|JIS C 852|REACH Compliant|RoHS Compliant|UL 508|UL File No. E42259|WEEE Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2171149Part Number #9001KR25RH5UNSPSC39122216UPC00785901033585
