Square D 9001KR9RH27 Harmony Non-Illuminated Pushbutton
Image Disclaimers Message

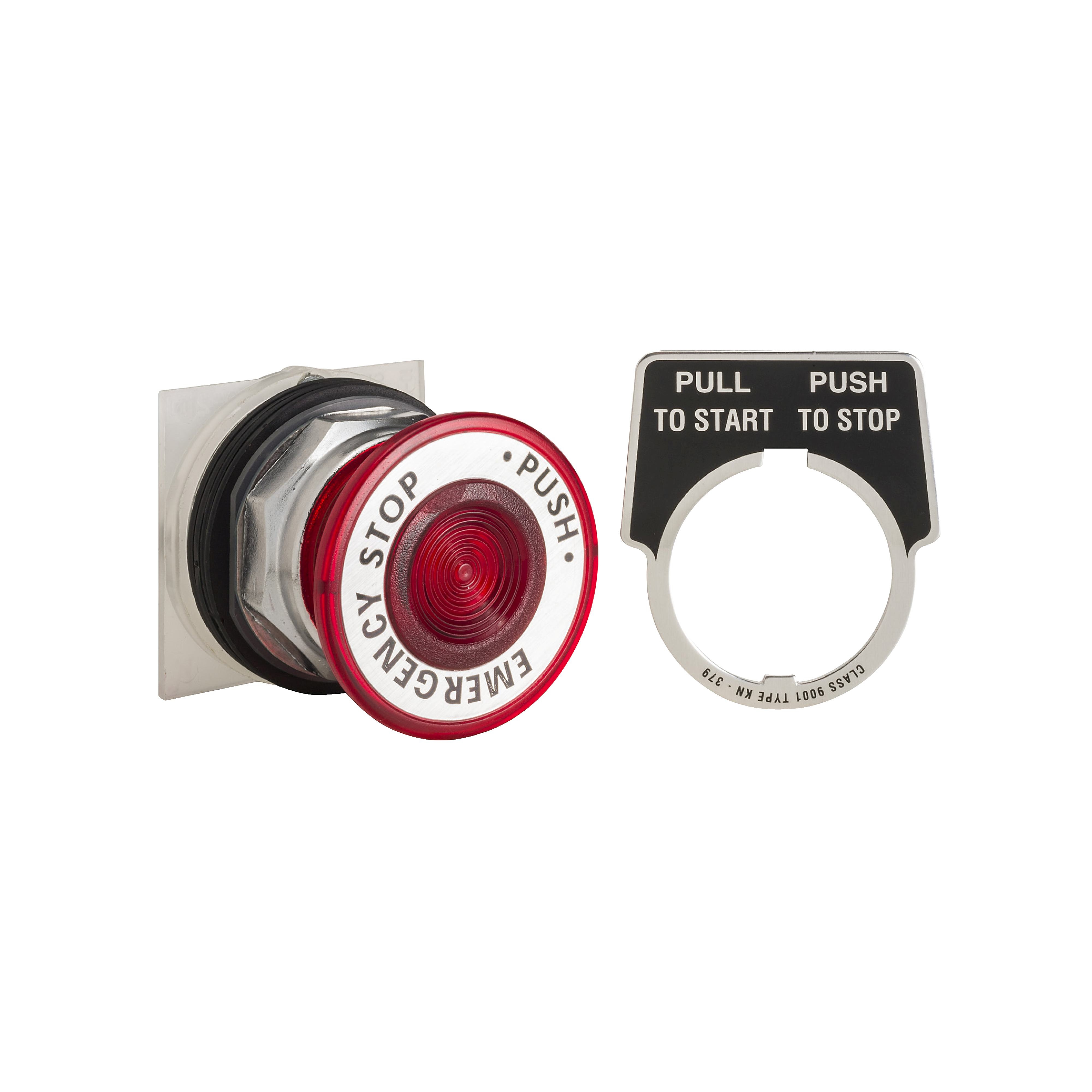

Square D 9001KR9RH27 Harmony Non-Illuminated Pushbutton
Square D 9001KR9RH27 Harmony Non-Illuminated Pushbutton
Part #:9001KR9RH27
SKU #: 2292879
Key Features
Part #:9001KR9RH27
SKU #: 2292879
Brand: Square D
Actuator: Mushroom Head
Bezel/Housing: Polished Chrome Metal
Contact Configuration: 3NC
Contact Rating: 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC
Enclosure Type: NEMA 1/2/3/3R/4/6/12/13/IP65/IP66
- Full size and shallow depth light modules
- Reduced panel space with side by side mounting
- Easy to actuate, tactile feel operators
- Maintenance-free operation
- Simplified installation and identification
- Wide range of accessories, colored lenses and knobs for customer adaptations
- Full guard in plastic
- Without indicator
- https://www.youtube.com/embed/z4UUZQz35-w
Square D 9001KR9RH27 Harmony Non-Illuminated Pushbutton
Square D Harmony Non-Illuminated Pushbutton, Type K Heavy Duty Dusttight/Oiltight/Watertight Mechanically Interlocked, Series: 9001KR, 30 mm Size, 3NC Contact Configuration, Slow-Break Contact, Maintained Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Push-Pull/Spring Return Operator, Bezel/Housing: Polished Chrome Metal, Mushroom Head Actuator, Screw-On Connection, Screw Clamp Terminal, NEMA 1/2/3
Additional Description: SQD -9001KR9RH27 (N) PUSH BUTTON 600VAC 10A 30MM T-K NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Push-button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, 3 NC
