9001SK1L38LGGH13

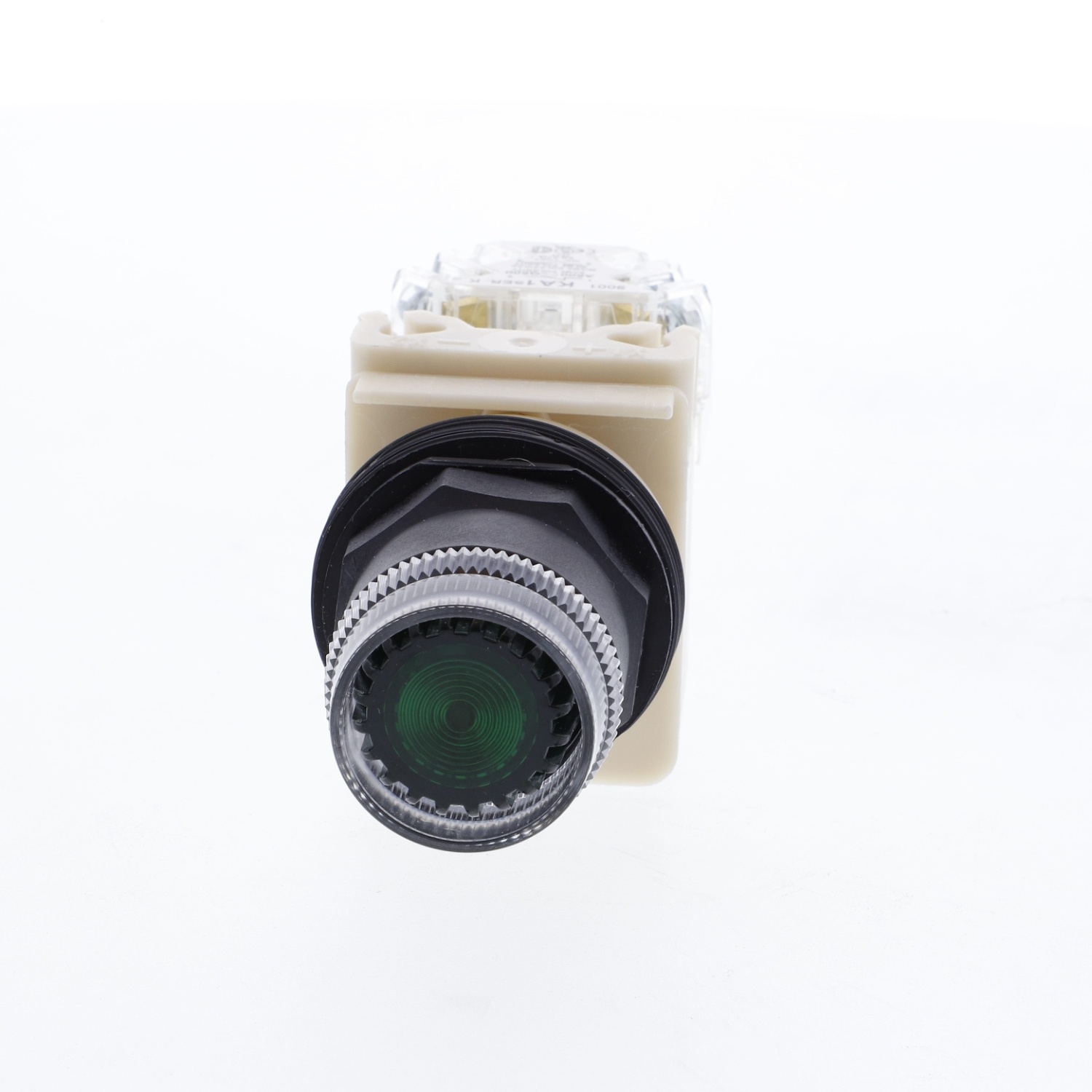

Square D 9001SK1L38LGGH13 Harmony Illuminated Pushbutton
Part Number # 9001SK1L38LGGH13
SKU # 2254431
$241.61 / Each
Square D 9001SK1L38LGGH13 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9001SK1L38LGGH13 |
| SKU #: | 2254431 |
| Actuator: | Flush |
| Bezel/Housing: | Black Plastic |
| Contact Configuration: | 1CO |
| Contact Rating: | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/6/12/13/IP65 |
| Environmental Conditions: | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature, -25 to 70 deg C Operating Temperature, -40 to 158 deg F Storage Temperature |
| Lamp Type: | BA9S LED |
| Operator Type: | Flush, Full Guard Button/Spring Return |
| Series: | 9001SK |
| Size: | 30, 30 mm |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Type SK Corrosion-Resistant Direct Dusttight Oiltight Watertight Heavy Duty Unmarked, Type SK Corrosion-Resistant Direct Dusttight/Oiltight/Watertight Heavy Duty Unmarked |
| Color: | Green |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901040491 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$241.61 / Each
Quantity:
- Square D Harmony Illuminated Pushbutton, Type SK Corrosion-Resistant Direct Dusttight Oiltight Watertight Heavy Duty Unmarked, Series: 9001SK, 30 mm Size, 1CO Contact Configuration, Slow Break Contact, Momentary Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Flush Operator, BA9S LED Lamp, Bezel/Housing: Black Plastic, Flush Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/6/12/13/IP65 Enclosure, Panel Mounting, Green, Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 158 deg F Storage Temperature
9001SK1L38LGGH13 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation, Textile, Heavy Industry, Indoor and Outdoor Applications9001SK1L38LGGH13 Item Features
- It has a plastic bezel, is supplied with a 110Vac/dc integral LED and has 1 x NO + 1 x NC contacts
- It fits in a 30mm hole
- Full Guard Button
9001SK1L38LGGH13 Standards
CE Certified|CSA C22.2 NO 14|CSA File No. 14|CSA File No. LR25490 Class 3211 03|ECCN: EAR99|EN/IEC 60529|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-4|Green Premium|IEC 60068-2-27/60068-2-6/60529|JIS C 4520-EN/IEC 60947-1|JIS C 4520/852|JIS C 852|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|REACH Compliant|RoHS Compliant|UL 508|UL 508|UL File No. E78403 CCN NKCR|WEEE CompliantSKU #2254431Part Number #9001SK1L38LGGH13UNSPSC39122216UPC00785901040491
