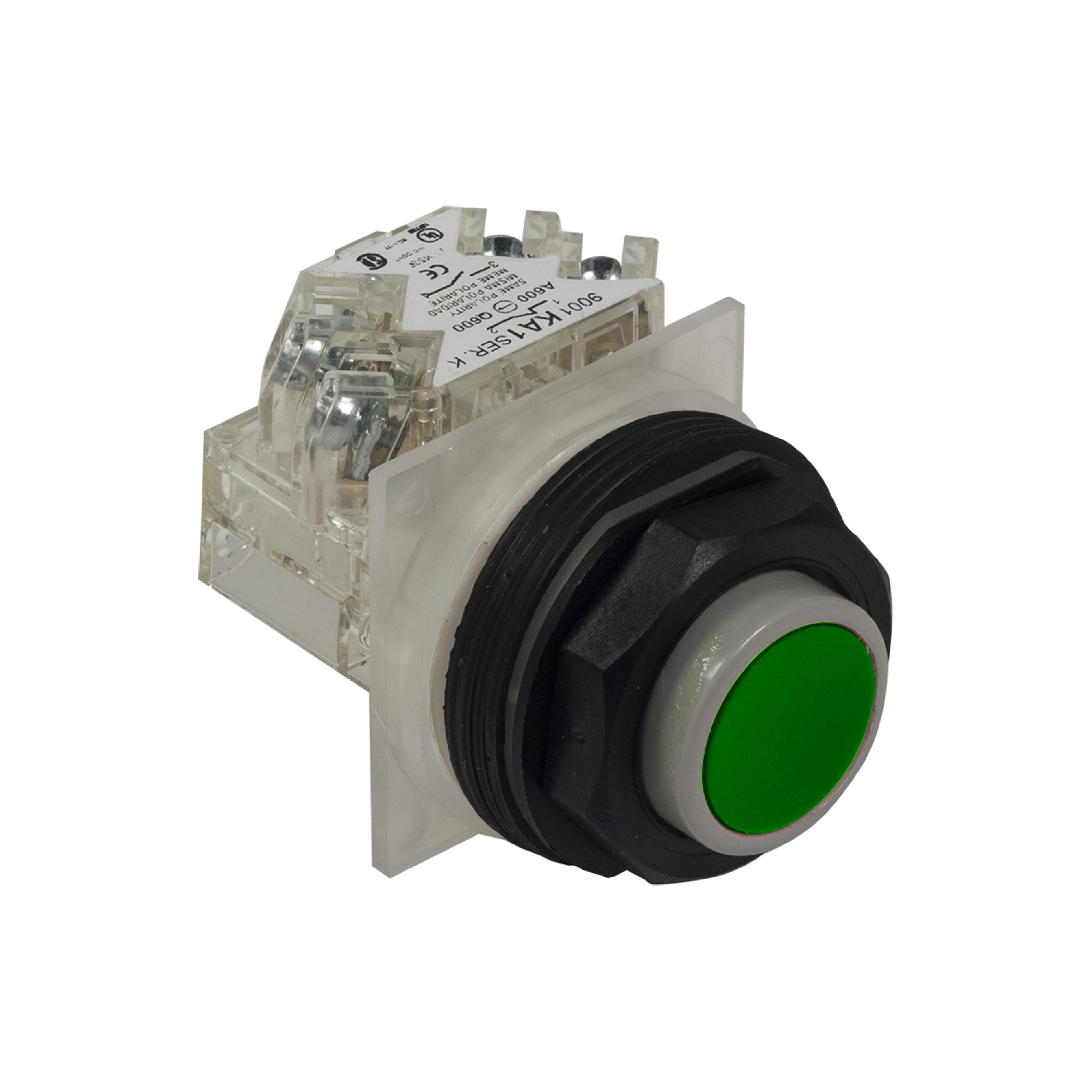

Square D 9001SKR3GH5 Harmony Non-Illuminated Pushbutton
Part Number # 9001SKR3GH5
SKU # 2238795
Square D 9001SKR3GH5 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9001SKR3GH5 |
| SKU #: | 2238795 |
| UNSPSC: | 39122216 |
| UPC: | 00785901042716 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 9001SKR3GH5 Harmony Non-Illuminated Pushbutton
Brand: Square D
Part Number: 9001SKR3GH5
Square D Harmony Non-Illuminated Pushbutton, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked, Series: 9001SK, 30 mm Size, 1NO Contact Configuration, Slow-Break Contact, Momentary Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Spring Return Operator, Bezel/Housing: Plastic, Projecting Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Enclosure, Pan
Additional Description: SQD -9001SKR3GH5 PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS
Catalog Description: Push-button, Harmony 9001SK, plastic, projecting, green, 30mm, spring return, 1 NO
9001SKR3GH5 Application
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Petrochemical, Material Handling, Wastewater Treatment, Metallurgy and Industrial Applications9001SKR3GH5 Item Features
- This Schneider Electric Harmony 9001SK modular projecting green push-button has 2 positions, operates with spring return mechanism and has a double insulated plastic bezel
- It has 1 x NO contact and fits in a 30mm hole
- It is supplied with contact block a
9001SKR3GH5 Standards
RoHS Compliant|REACH Compliant|CSA File No. LR25490|CSA C22.2 No. 14|Class 3211-03|UL 508|UL File No. E78403|UL File No. E42259|CCN NKCR|EN/IEC 60947-1|EN/IEC60947-5-1|EN/IEC60947-5-4|JIS C 4520|JIS C 852|CE Certified|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2238795Part Number #9001SKR3GH5UNSPSC39122216UPC00785901042716
Image provided may only be a representation of final product and may include optional equipment
