Part Number # 9001SKS11BH5
SKU # 1938406
Image Disclaimers Message
Brand: Square D
9001SKS11BH5

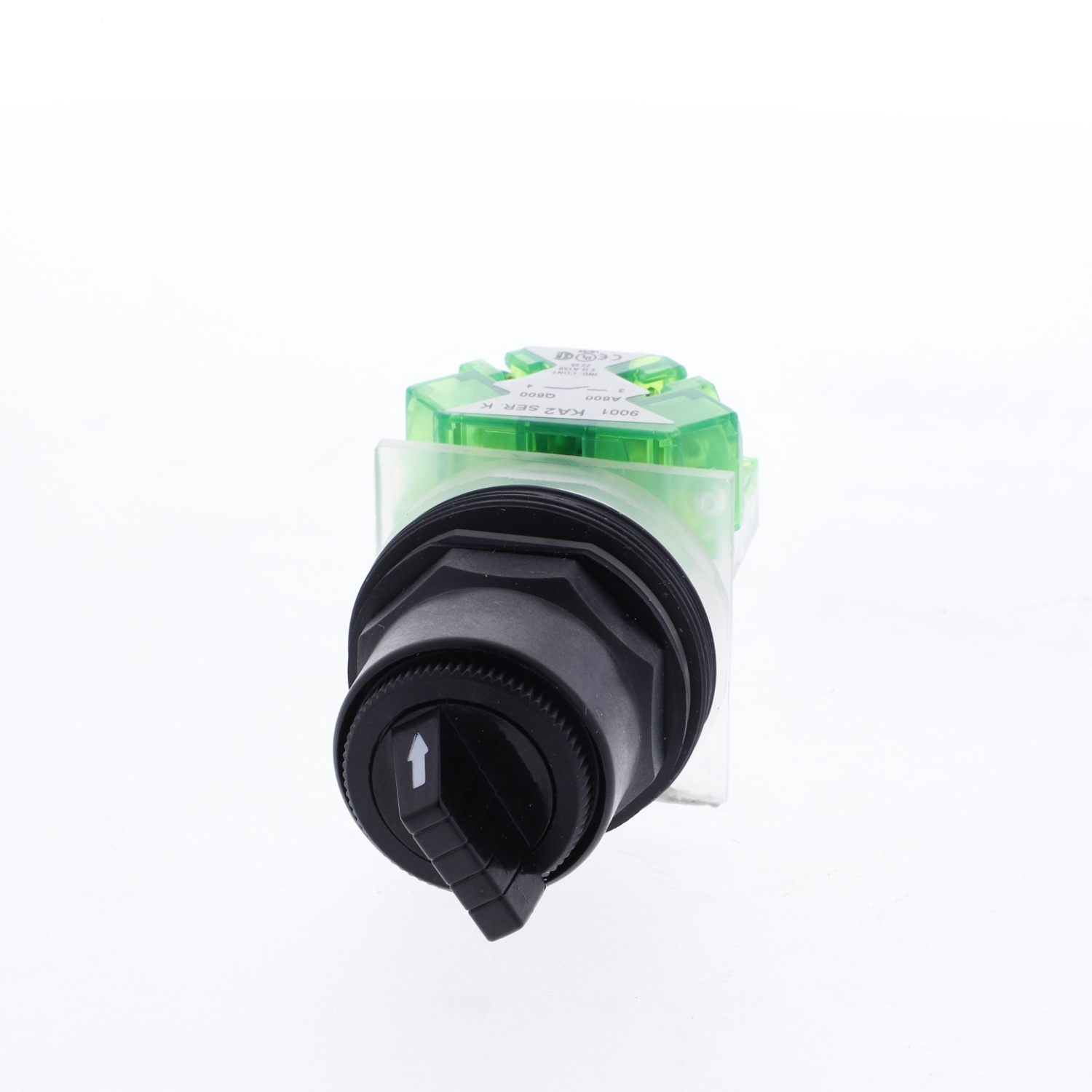

Square D 9001SKS11BH5 Harmony Non-Illuminated Selector Switch
Part Number # 9001SKS11BH5
SKU # 1938406
$84.72 / Each
Square D 9001SKS11BH5 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9001SKS11BH5 |
| SKU #: | 1938406 |
| Bezel/Housing: | Plastic |
| Cam Code: | E |
| Contact Configuration: | 1NO |
| Contact Rating: | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
| Environmental Conditions: | -13 to 158 deg F Operating, -40 to 158 deg F Storage, -25 to 70 deg C Operating, -40 to 158 deg F Storage |
| Number of Positions: | 2 |
| Operator Type: | Knob |
| Series: | 9001SK |
| Size: | 30, 30 mm |
| Terminal Type: | Screw Clamp |
| Throw: | 70 deg/Left to Right, 70 deg/Left/Right |
| Type: | Type SK Corrosion-Resistant Dusttight Oiltight Watertight Heavy Duty Round, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round |
| Color: | Black |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901043553 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.72 / Each
Quantity:
- Square D Harmony Non-Illuminated Selector Switch, Type SK Corrosion-Resistant Dusttight Oiltight Watertight Heavy Duty Round, Series: 9001SK, 30 mm Size, 1NO Contact Configuration, Slow Break Contact, Maintained Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Knob Operator, 2 Positions, 70 deg/Left/Right Throw, Cam Code: E, Bezel/Housing: Plastic, Screw Clamp Connection, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/6/12/13/IP66 Enclosure, Panel Mounting, Black, Environmental Conditions: -25 to 70 deg C Operating, -40 to 158 deg F Storage
9001SKS11BH5 Application
Automotive, Machine Tool, Crane and Hoist, Food and Beverage, Material Handling, Petrochemical, Wastewater Treatment, Metallurgy and Heavy Industries, Indoor and Outdoor Applications9001SKS11BH5 Item Features
- This robust range offers long term reliability in heavy duty industrial application and extreme environment
- Simple and easy installation reduces commissioning time
- Flexible, compact and modular, it enables you to build the right operator to meet your requirements
- Easy installation with octagonal ring nut
9001SKS11BH5 Standards
CE Certified|CSA File No. LR24590 Class 3211 03|ECCN: EAR99|Green Premium|IEC 60529|IEC/EN/NOM Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|REACH Compliant|RoHS Compliant|UL File No. E42259 CCN NKCR|WEEE CompliantSKU #1938406Part Number #9001SKS11BH5UNSPSC39122216UPC00785901043553
