9001SKS42FBH21

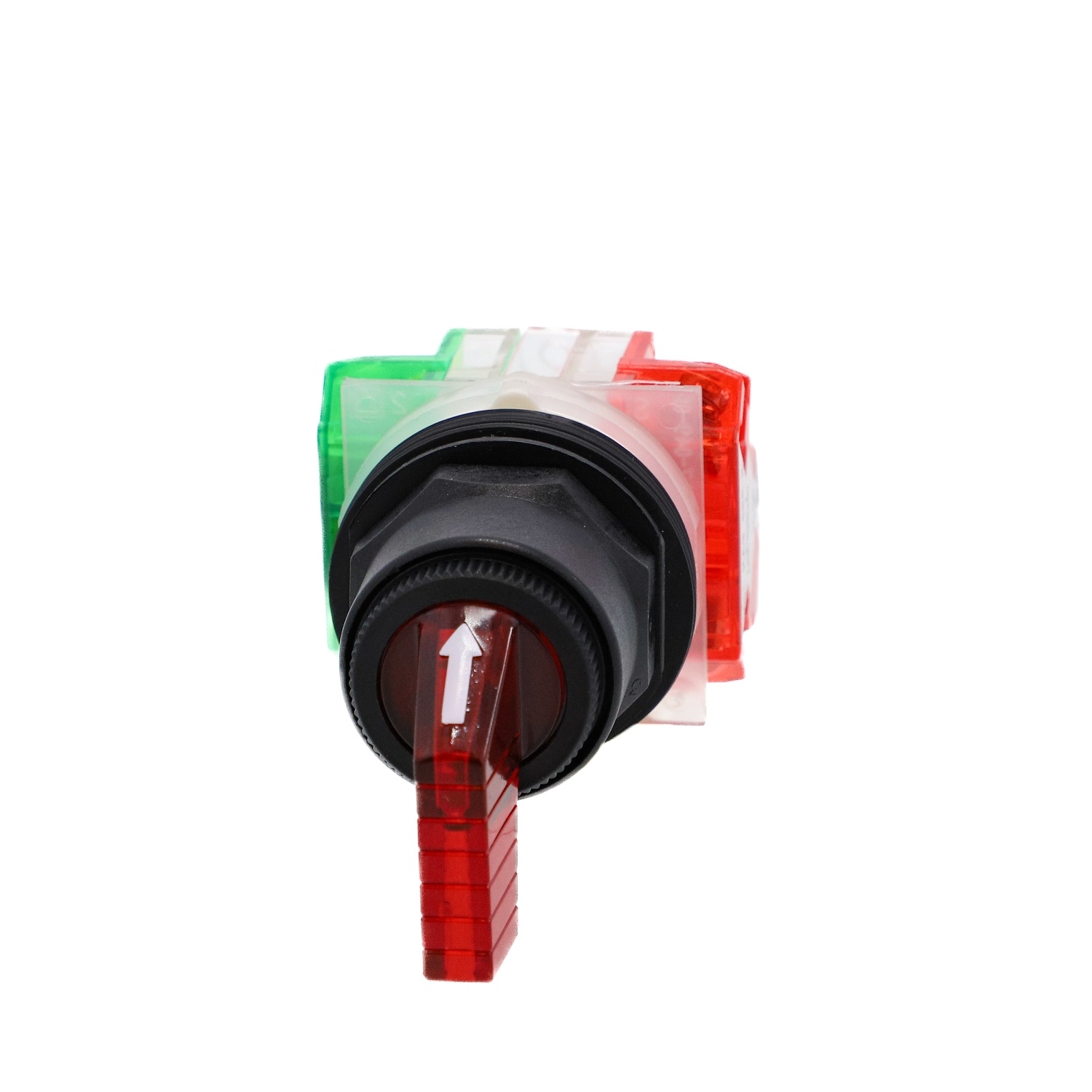

Square D 9001SKS42FBH21 Harmony Non-Illuminated Selector Switch
Part Number # 9001SKS42FBH21
SKU # 2404819
Schneider Electric 9001SKS42FBH21 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001SKS42FBH21 |
| SKU #: | 2404819 |
| Bezel/Housing: | Plastic |
| Cam Code: | B |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
| Environmental Conditions: | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Number of Positions: | 2 |
| Operator Type: | Knob |
| Series: | 9001SK |
| Size: | 30 mm |
| Terminal Type: | Screw Clamp |
| Throw: | 70 deg Left/Center/Right |
| Type: | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round |
| Color: | Black |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901398745 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 9001SKS42FBH21 Harmony Non-Illuminated Selector Switch
Brand: Schneider Electric
Part Number: 9001SKS42FBH21
Square D Harmony Non-Illuminated Selector Switch, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round, Series: 9001SK, 30 mm, 1NO-1NC, Slow-Break Contact, Maintained Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Knob Operator, 2 Positions, 70 deg/Left-Center-Right Throw, Cam Code: B, Bezel/Housing: Plastic, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/6/12/13/IP66, Panel Mount,
Additional Description: SQD -9001SKS42FBH21 (N) SELECTOR SWITCH 600VAC 10A 30MM SK position selector switch, 6A inductive at 120VAC, 1NO/1NC contacts, black knob, NEMA 4, 4X NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 30mm push button, Type SK, 3 position selector switch, 6A inductive at 120VAC, 1NO/1NC contacts, black knob, NEMA 4, 4X
9001SKS42FBH21 Application
Automotive, Machine Tool, Crane and Hoist, Food and Beverage, Material Handling, Petrochemical, Wastewater Treatment, Metallurgy and Heavy Industry and Indoor/Outdoor Applications9001SKS42FBH21 Item Features
- This robust range offers long term reliability in heavy duty industrial applications and extreme environments
- Simple and easy installation reduces commissioning time
- Flexible, compact and modular, it enables you to build the right operator to meet your requirements
- Easy installation with octagonal ring nut
9001SKS42FBH21 Standards
RoHS Compliant|UL File No. E42259 CCN NKCR|CSA File No. LR24590 Class 3211 03|CE Certified|IEC/EN/NOM Certified|Green Premium|WEEE Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2404819Part Number #9001SKS42FBH21UNSPSC39122216UPC00785901398745
