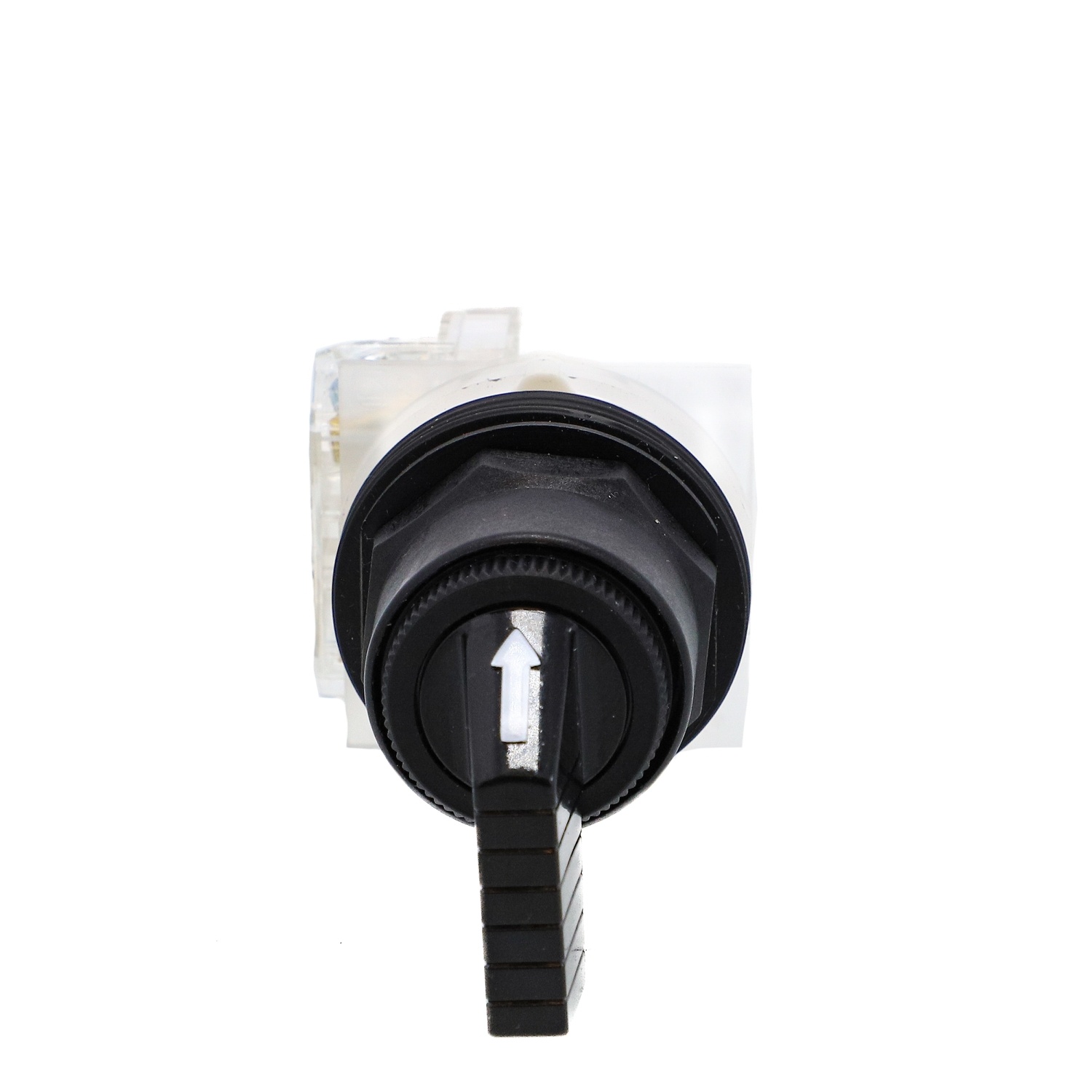

Square D 9001SKS43FBH13 Harmony Non-Illuminated Selector Switch
Image Disclaimers Message
Square D 9001SKS43FBH13 Harmony Non-Illuminated Selector Switch
Square D 9001SKS43FBH13 Harmony Non-Illuminated Selector Switch
Part #:9001SKS43FBH13
SKU #: 2171608
Key Features
Part #:9001SKS43FBH13
SKU #: 2171608
Brand: Square D
Bezel/Housing: Plastic
Cam Code: C
Contact Configuration: 1CO
Contact Rating: 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC
Enclosure Type: NEMA 1/2/3/3R/4/4X/6/12/13/IP66
- Simple and easy installation reduces commissioning time
- Flexible, compact and modular, it enables you to build the right operator to meet your requirements
- Suitable for use in applications requiring resistance to corrosion
- It uses screw-clamp terminals and has 1 x NO + 1 x NC contacts
- It fits in a 30 mm hole
Square D 9001SKS43FBH13 Harmony Non-Illuminated Selector Switch
Square D Harmony Non-Illuminated Selector Switch, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round, Series: 9001SK, 30 mm Size, 1CO Contact Configuration, Slow-Break Contact, Maintained/Stay Put Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Long Handle Operator, 3 Positions, 70 deg Left/Center/Right Throw, Cam Code: C, Bezel/Housing: Plastic, Screw Clamp Terminal, NEMA 1/
Additional Description: SQD -9001SKS43FBH13 (N) SELECTOR SWITCH 600VAC 10A 30MM SK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Selector switch, Harmony 9001SK, plastic, long handle, black, 30mm, 3 positions, stay put, 1 C/O
