Part Number # 9001SKS73
SKU # 2280057
Image Disclaimers Message
9001SKS73

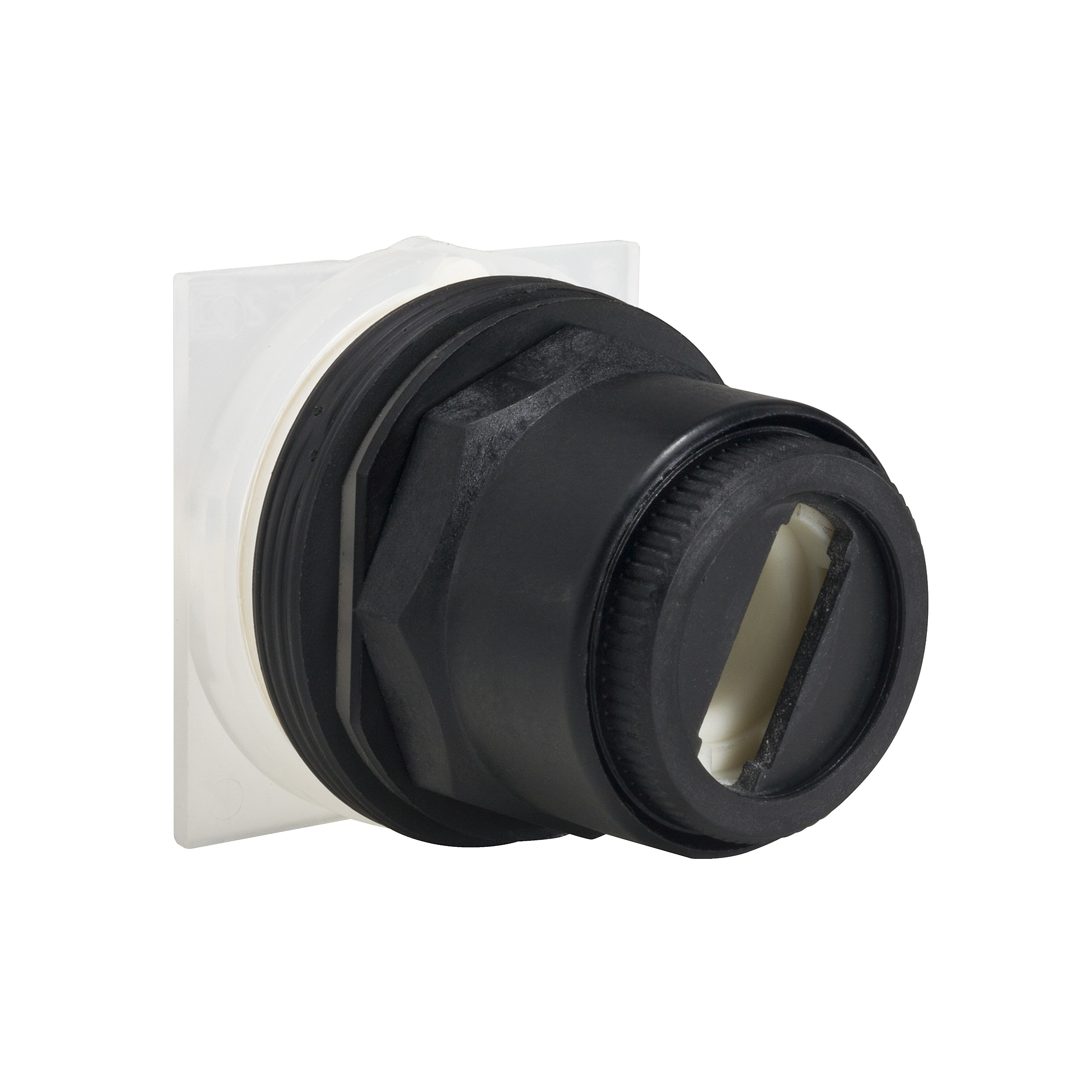

Square D 9001SKS73 Harmony Non-Illuminated Selector Switch Operator
Part Number # 9001SKS73
SKU # 2280057
$111.39 / Each
Square D 9001SKS73 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9001SKS73 |
| SKU #: | 2280057 |
| Bezel/Housing: | Plastic |
| Cam Code: | C |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
| Number of Positions: | 3 |
| Operator Type: | Spring Return |
| Series: | 9001SK |
| Size: | 30, 30 mm |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Terminal Type: | Screw |
| Throw: | Right to Center |
| Type: | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round |
| Color: | Black |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901959908 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$111.39 / Each
Quantity:
- Square D Harmony Non-Illuminated Selector Switch Operator, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round, Series: 9001SK, 30 mm, Momentary/Maintained/Momentary Contact Mode, 3 Positions, Right to Center Throw, Cam Code: C, 600 V AC, NEMA 1/2/3/3R/4/4X/6/12/13/IP66, Screw Terminal, Panel Mount, Bezel/Housing: Plastic, -13 to 158 deg F, Black
9001SKS73 Application
Automotive, Machine Tool, Crane and Hoist, Food and Beverage, Material Handling, Petrochemical, Wastewater Treatment, Metallurgy, Industrial and Indoor/Outdoor Applications9001SKS73 Item Features
- This robust range offers long term reliability in heavy duty industrial applications and extreme environments
- Simple and easy installation reduces commissioning time
- Flexible, compact and modular, it enables you to build the right operator to meet your requirements
9001SKS73 Standards
RoHS Compliant|UL File No. E42259/E78403 CCN NKCR|CSA C22.2 No. 14 File No. LR24590 Class 3211 03|CE Certified|NOM Certified|EN/IEC 60947-1, EN/IEC EN, EN/IEC 60947-5-1, EN/IEC 60947-5-4|JIS C 4520|JIS C 852|UL 508|Green Premium|WEEE Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2280057Part Number #9001SKS73UNSPSC39122216UPC00785901959908
