Brand: Square D
9050JCK11V14

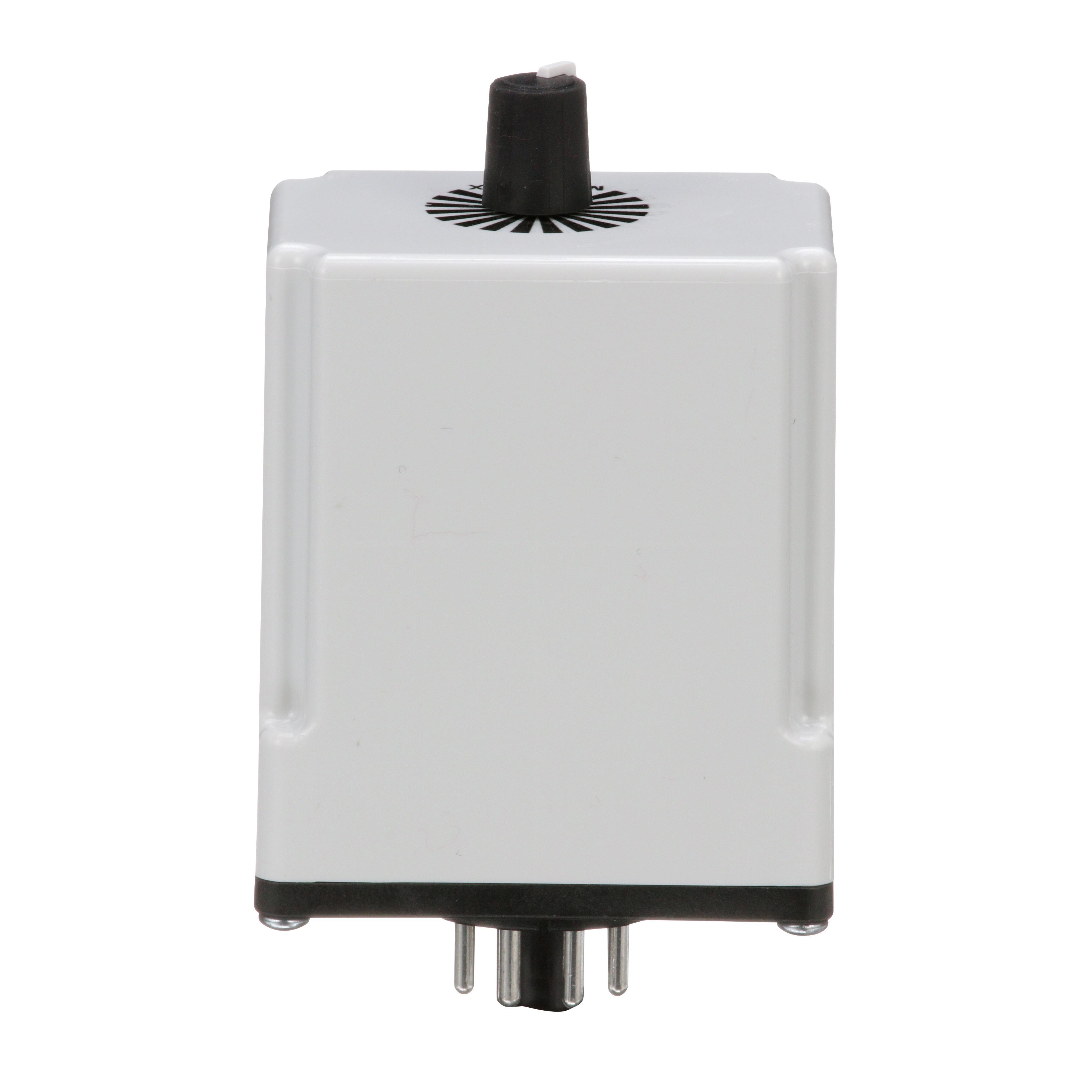

Square D 9050JCK11V14 Timing Relay
Part Number # 9050JCK11V14
SKU # 2213579
$82.01 / Each
Square D 9050JCK11V14 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9050JCK11V14 |
| SKU #: | 2213579 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 V AC/DC, 24 VAC/VDC |
| Contact Form: | 2NO-2NC 2 Form C DPDT, 2NO-2NC/DPDT |
| Dimensions: | 43 mm W x 104 mm D x 61 mm H |
| Electrical Connections: | Tubular |
| Enclosure Type: | IP20 |
| Horsepower: | 1/2 hp, 1/3 hp |
| Number of Pins: | 8 |
| Operation Mode: | ON-Delay |
| Temperature Rating (Degrees F): | -18 to 150 deg F |
| Time Setting: | 0.1 to 10 s |
| Type: | Type JCK Class 9050 Electronic Adjustable Time |
| Country of origin: | US |
| Mounting type: | Socket |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122329 |
| UPC: | 00785901032687 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.01 / Each
Quantity:
- Square D Timing Relay, Type JCK Class 9050 Electronic Adjustable Time, Operation Mode: On-Delay, 240 V AC, 10 A, 1/2 hp, 1/3 hp, 8 Pins, 2NO-2NC 2 Form C DPDT Contact Form, 0.1 to 10 s Time Setting, 24 V AC/VDC Coil, Tubular Electrical Connections, IP20 Enclosure, -18 to 150 deg F, Socket Mounting, 43 mm W x 104 mm D x 61 mm H Dimensions
9050JCK11V14 Item Features
- Up to +/-0.1% repeat accuracy
- Timing from 0.05 s to 999 hr
- Transient protected
- Variable or fixed time delay
- Horsepower rated
- Tubular shape of pin
- https://www.youtube.com/embed/LISYDXFh9Xk
9050JCK11V14 Standards
CE Certified|cURcs File No. E3190, cULus File No. E3190, CSA File No. 260367 Class: 3211 07, CE IEC 61810-1|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS Compliant|UL Listed|UL RecognizedSKU #2213579Part Number #9050JCK11V14UNSPSC39122329UPC00785901032687
