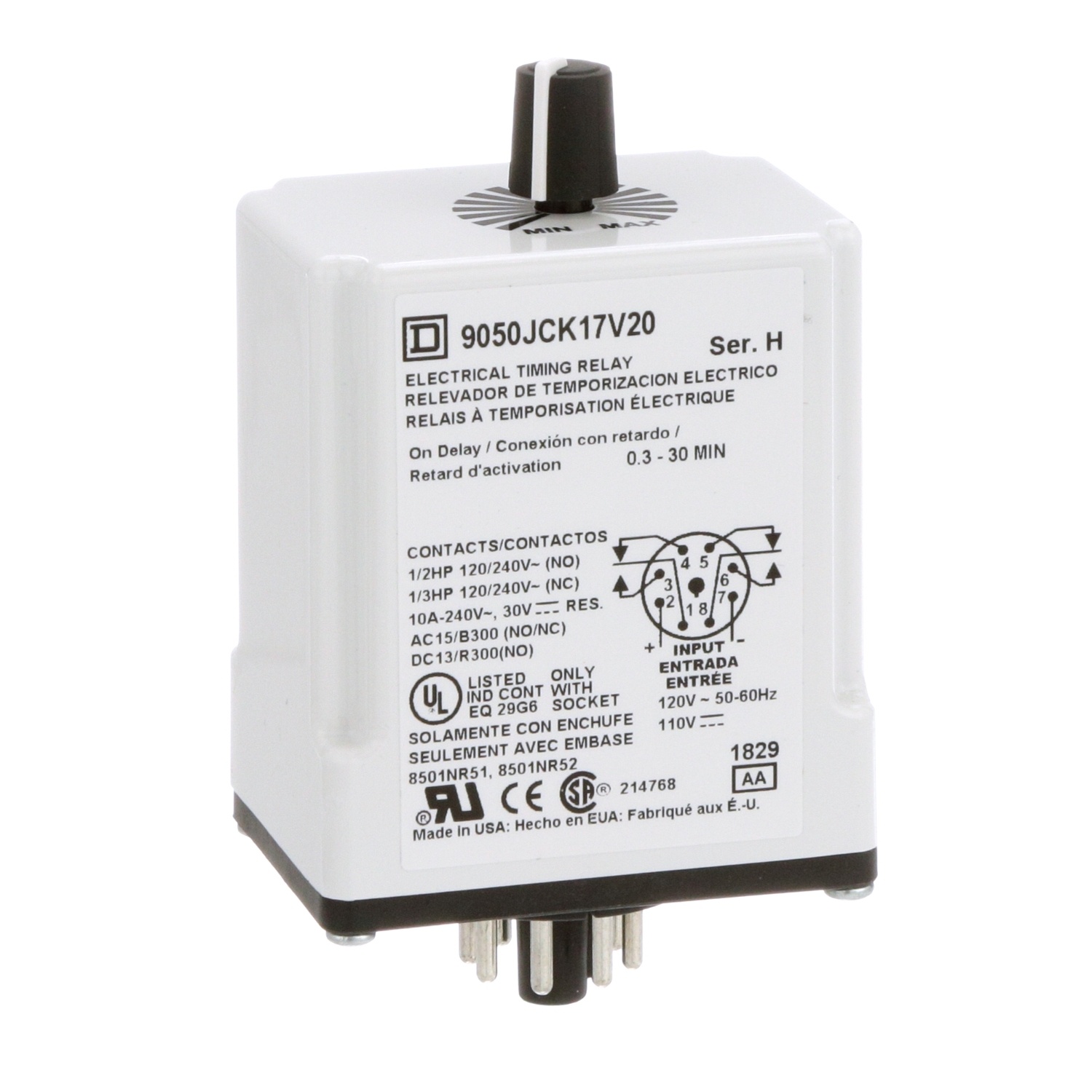

Square D 9050JCK17V20 Timing Relay
Square D 9050JCK17V20 Timing Relay
Part #:9050JCK17V20
SKU #: 2317087
Key Features
Part #:9050JCK17V20
SKU #: 2317087
Brand: Square D
Amperage Rating: 10, 10 A
Coil Voltage: 110 to 120, 120 VAC, 110 VDC
Contact Form: 2NO-2NC/DPDT
Dimensions: 4.1 in H x 2.4 in W x 1.71 in D, 43 mm W x 104 mm D x 61 mm H
Electrical Connections: Tubular
- up to +/-0.1% repeat accuracy
- Timing from 0.1 s to 120 min
- Transient protected
- Variable or fixed time delay
- Horsepower rated
- https://www.youtube.com/embed/LISYDXFh9Xk
Square D 9050JCK17V20 Timing Relay
Square D Timing Relay, Type JCK Class 9050 Electronic Adjustable Time, Operation Mode: On-Delay, 240 VAC, 10 A, 1/2 hp, 1/3 hp, 8 Pins, 2NO-2NC/DPDT Contact Form, 0.3 to 30 min Time Setting, 120 VAC, 110 VDC Coil, Tubular Electrical Connections, IP20 Enclosure, -18 to 150 deg F, Socket Mounting, 43 mm W x 104 mm D x 61 mm H Dimensions
Additional Description: SQD -9050JCK17V20 TIMER RELAY 240VAC 10AMP +OPTIONS
Catalog Description: Timing Relay, Type JCK, plug In, on delay, adjustable time, 0.3 to 30 minutes, 10A, 240 VAC, 120 VAC/110 VDC
