Part Number # 9050JCK26V20
SKU # 2224604
9050JCK26V20

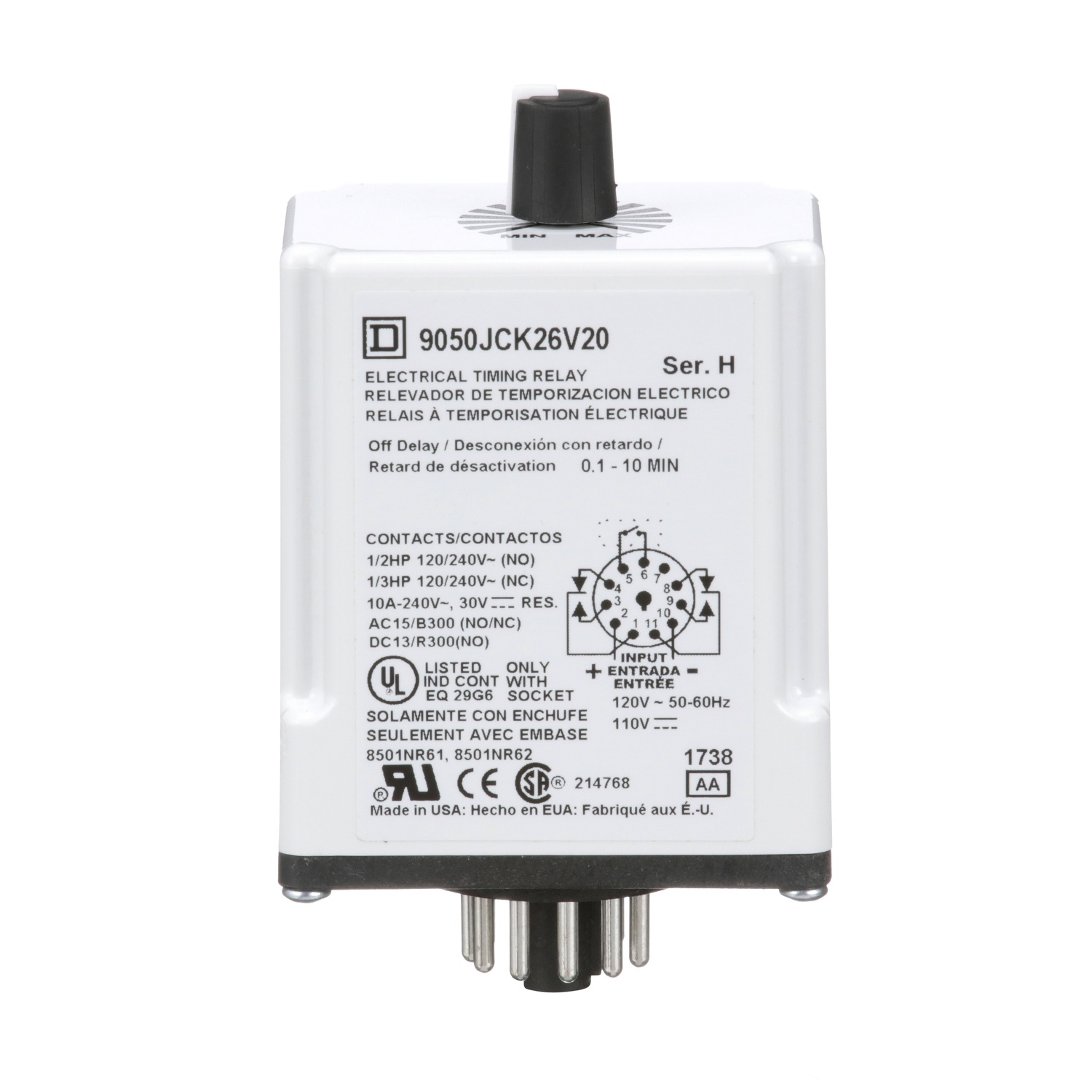

Square D 9050JCK26V20 Timing Relay
Part Number # 9050JCK26V20
SKU # 2224604
Square D 9050JCK26V20 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9050JCK26V20 |
| SKU #: | 2224604 |
| Coil Voltage: | 120 V AC, 110 V DC |
| Contact Form: | 2NO-2NC 2 Form C DPDT |
| Dimensions: | 43 mm W x 104 mm D x 61 mm H |
| Electrical Connections: | Tubular |
| Horsepower: | 1/2 hp, 1/3 hp |
| Number of Pins: | 11 |
| Operation Mode: | OFF-Delay |
| Series: | 9050 |
| Temperature Rating (Degrees F): | -18 to 150 deg F |
| Time Setting: | 0.1 to 10 min |
| Type: | Type JCK Adjustable Time |
| Mounting type: | Socket |
| UNSPSC: | 39122329 |
| UPC: | 00785901032663 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 9050JCK26V20 Timing Relay
Brand: Square D
Part Number: 9050JCK26V20
Square D Timing Relay, Type JCK Adjustable Time, Series: 9050, Operation Mode: Off-Delay, 240 VAC, 10 A, 1/2 hp, 1/3 hp, 11 Pins, 2NO-2NC/DPDT Contact Form, 0.1 to 10 min Time Setting, 120 VAC, 110 VDC Coil, Tubular Electrical Connections, IP20 Enclosure, -18 to 150 deg F, Socket Mounting, 43 mm W x 104 mm D x 61 mm H Dimensions
Additional Description: SQD -9050JCK26V20 TIMER RELAY 240VAC 10AMP +OPTIONS
Catalog Description: Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC
9050JCK26V20 Item Features
- Timing from 0.1 s to 120 min
- Transient protected
- Variable or fixed time delay
- Horsepower rated
- https://www.youtube.com/embed/LISYDXFh9Xk
9050JCK26V20 Standards
CCN NLDX|CE Certified|CSA 214768 Class 321107|RoHS Compliant|UL File No. E78351|UL Listed|UL RecognizedSKU #2224604Part Number #9050JCK26V20UNSPSC39122329UPC00785901032663
Image provided may only be a representation of final product and may include optional equipment
