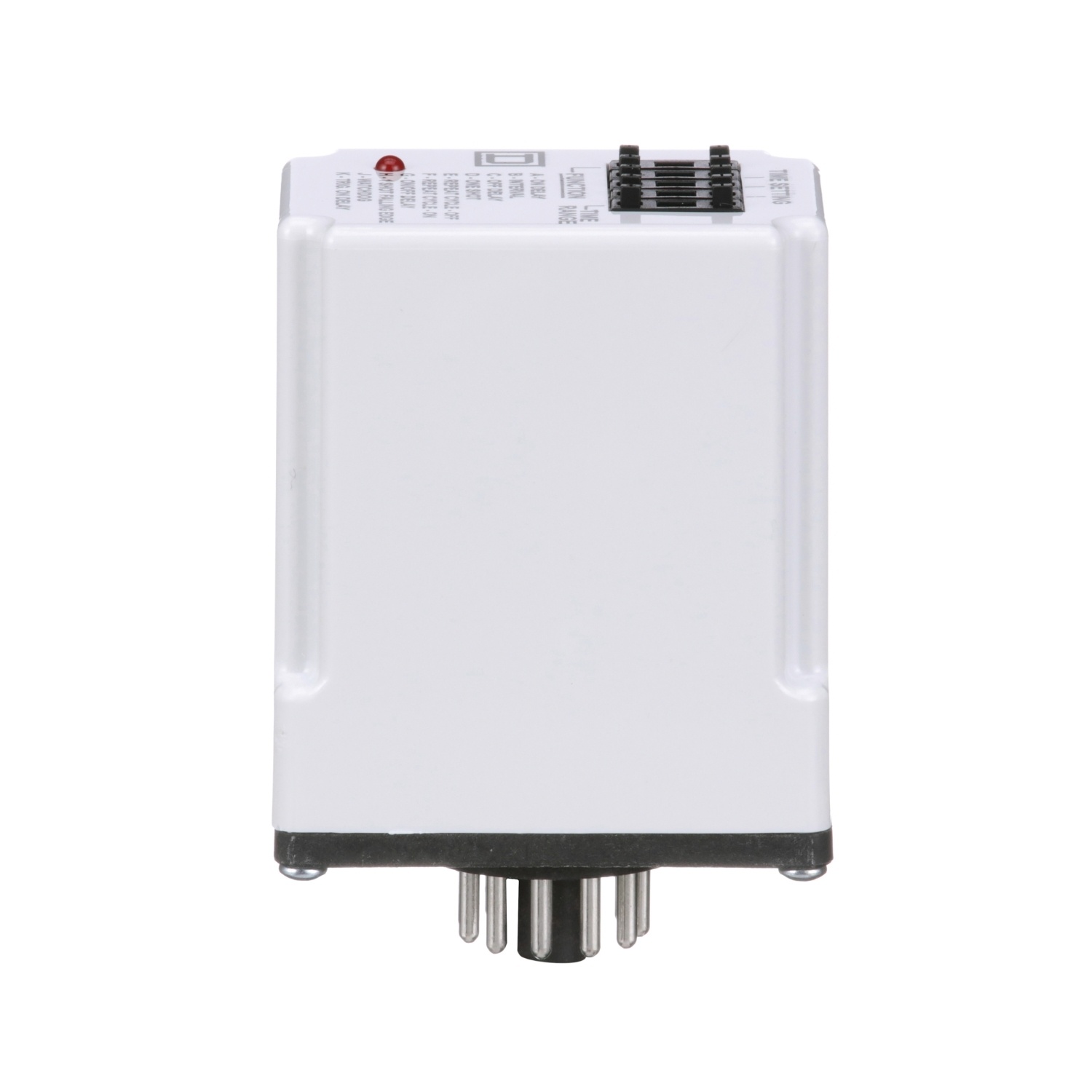

Square D 9050JCK70V14 Timing Relay
Image Disclaimers Message
Square D 9050JCK70V14 Timing Relay
Square D 9050JCK70V14 Timing Relay
Part #:9050JCK70V14
SKU #: 2273921
Key Features
Part #:9050JCK70V14
SKU #: 2273921
Brand: Square D
Amperage Rating: 10, 10 A
Coil Voltage: 24, 24 VAC
Contact Form: 2NO-2NC DPDT, 2NO-2NC/DPDT
Dimensions: 2.36 in H x 1.73 in W x 3.58 in D, 44 mm W x 60 mm D x 91 mm H
Electrical Connections: Tubular
- up to +/-0.1% repeat accuracy
- Timing from 0.05 s to 999 hr
- Transient protected
- Variable or fixed time delay
- Horsepower rated
- https://www.youtube.com/embed/LISYDXFh9Xk
Square D 9050JCK70V14 Timing Relay
Square D Timing Relay, Type JCK Class 9050 Electronic, Operation Mode: On-Delay, 240 VAC, 10 A, 1/2 hp, 1/3 hp, 11 Pins, 2NO-2NC/DPDT Contact Form, 1 to 999 min Time Setting, 24 VAC Coil, Tubular Electrical Connections, IP20 Enclosure, -18 to 150 deg F, Socket Mounting, 44 mm W x 60 mm D x 91 mm H Dimensions
Additional Description: SQD -9050JCK70V14 TIMER RELAY 240VAC 10AMP +OPTIONS
Catalog Description: Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
