Part #:9070SK2000G2D1
SKU #: 173933
Key Features
Part #:9070SK2000G2D1
SKU #: 173933
Brand: Square D
Amperage Rating: 45, 45 A
Dimensions: 13.4 in H x 14.8 in W x 12.21 in D
Electrical Connections: Screw Clamp
Frequency Rating: 50/60, 50/60 Hz
Insulation: 356, 356 deg F
- The square D disconnect switch is rated 600 VAC, 45 A, 100 kA, the disconnect can be locked in the OFF position
- Knockouts conveniently located on NEMA 1 enclosures
- External mounting flanges with slotted holes for "hook and hang" mounting on NEMA 1 enclosures
- Ground terminal
- 90 deg access cover stop
- 240/480 VAC primary voltage 120 secondary voltage
- Without outlet

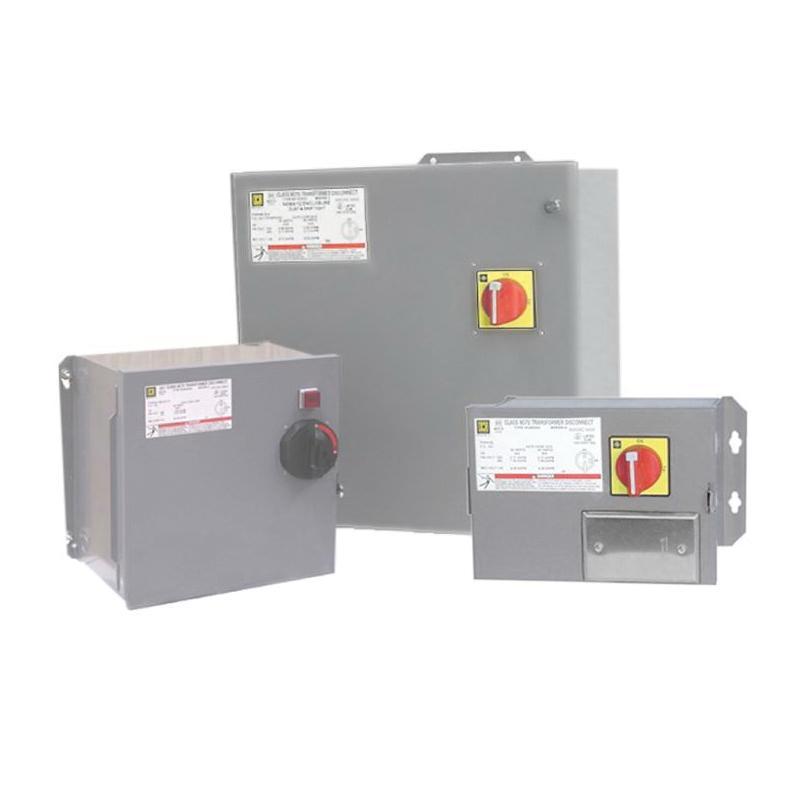

Square D 9070SK2000G2D1 Transformer Disconnect
Square D Transformer Disconnect, 1-Phase Type SK Class 9070, 120/240/480 VAC, 45 A, 2 kVA Power, 50/60 Hz Frequency, Screw Clamp Electrical Connections, Surface/Panel Mounting, 356 deg F Insulation, NEMA 1 NEMA Rating, 115 deg C, 13.4 in H x 14.8 in W x 12.21 in D Dimensions
Additional Description: SQD -9070SK2000G2D1 (N) Transformer Control Disconnect 2kVA 240/480V-120V NO OUTLET NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Transformer disconnect, 2000VA, 240x480VAC primary, 120VAC secondary, without outlet, Type 1
