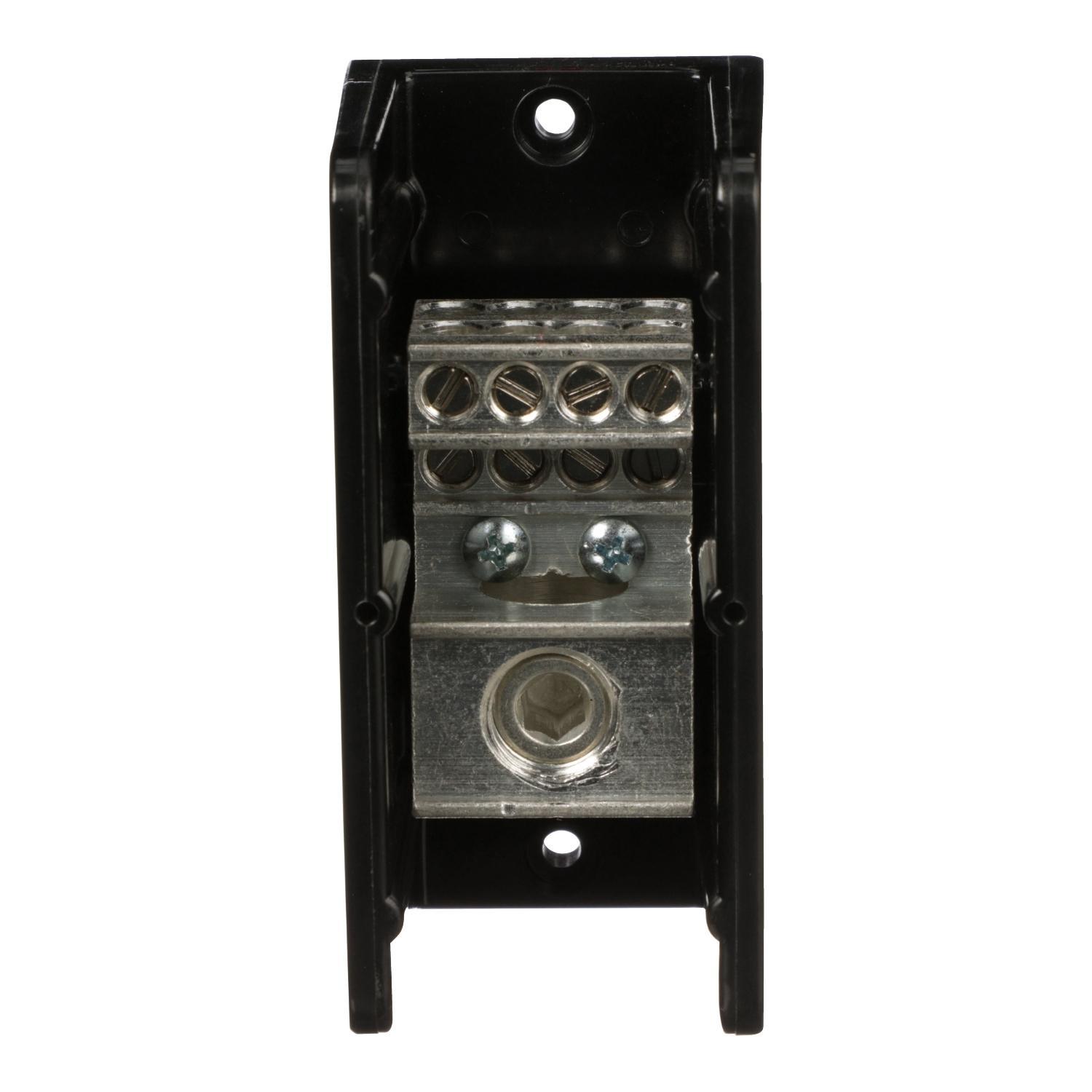

Square D 9080LBA164108 Tesys Linergy Power Distribution Block
Part Number # 9080LBA164108
SKU # 2356282
$84.74 / Each
Typical price:$93.00 / Each
Square D 9080LBA164108 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9080LBA164108 |
| SKU #: | 2356282 |
| Amperage Rating: | 270/335, 270/335 A |
| Dimensions: | 2.29 in W x 2.28 in D x 4.75 in H, 4.75 in H x 2.29 in W x 2.28 in D |
| Number of Poles: | 1 |
| Series: | 9080LB |
| Short Circuit Current Rating (kA): | 65, 65 kA |
| Type: | General Purpose Linergy Standard, General Purpose Standard |
| Wire Size: | 6 AWG to 400 kcmil Al/Cu, 14 to 2 AWG Al/Cu |
| Country of origin: | US |
| Material: | Phenolic |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121410 |
| UPC: | 00785901097358 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.74 / Each
Typical price:$93.00 / Each
Quantity:
- Square D TeSys Linergy Power Distribution Block, General Purpose Linergy Standard, Series: 9080LB, 600 V AC/DC, 270/335 A, 1 Pole, 1 Primary Connections/Pole, 8 Secondary Connection/Pole, 6 AWG to 400 kcmil Al/Cu, 14 to 2 AWG Al/Cu Wire, 65 kA Short Circuit, Phenolic, 2.29 in W x 2.28 in D x 4.75 in H Dimensions
9080LBA164108 Application
For 9080LB and 9080LB41 power distribution block covers and general purpose applications9080LBA164108 Item Features
- One lug opening on main side and eight on branch side
9080LBA164108 Standards
RoHS Compliant|CE Certified|CSA File No. LR70361|UL File No. E60616 CCN Guide No. XCFR2|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2356282Part Number #9080LBA164108UNSPSC39121410UPC00785901097358
