Part #:9080LBA365202
SKU #: 968637
Key Features
Part #:9080LBA365202
SKU #: 968637
Brand: Square D
Amperage Rating: 500/620 A, 620 A, 500 A
Dimensions: 5.5 in H x 8.54 in W x 3.12 in D, 8.54 in W x 3.12 in D x 5.5 in H
Number of Poles: 3
Series: 9080LB
Short Circuit Current Rating (kA): 100, 100 kA
- (2) 6 AWG to 350 kcmil branch and main cable
- Lugs tin plated aluminum connection
- For use with copper or aluminum wire

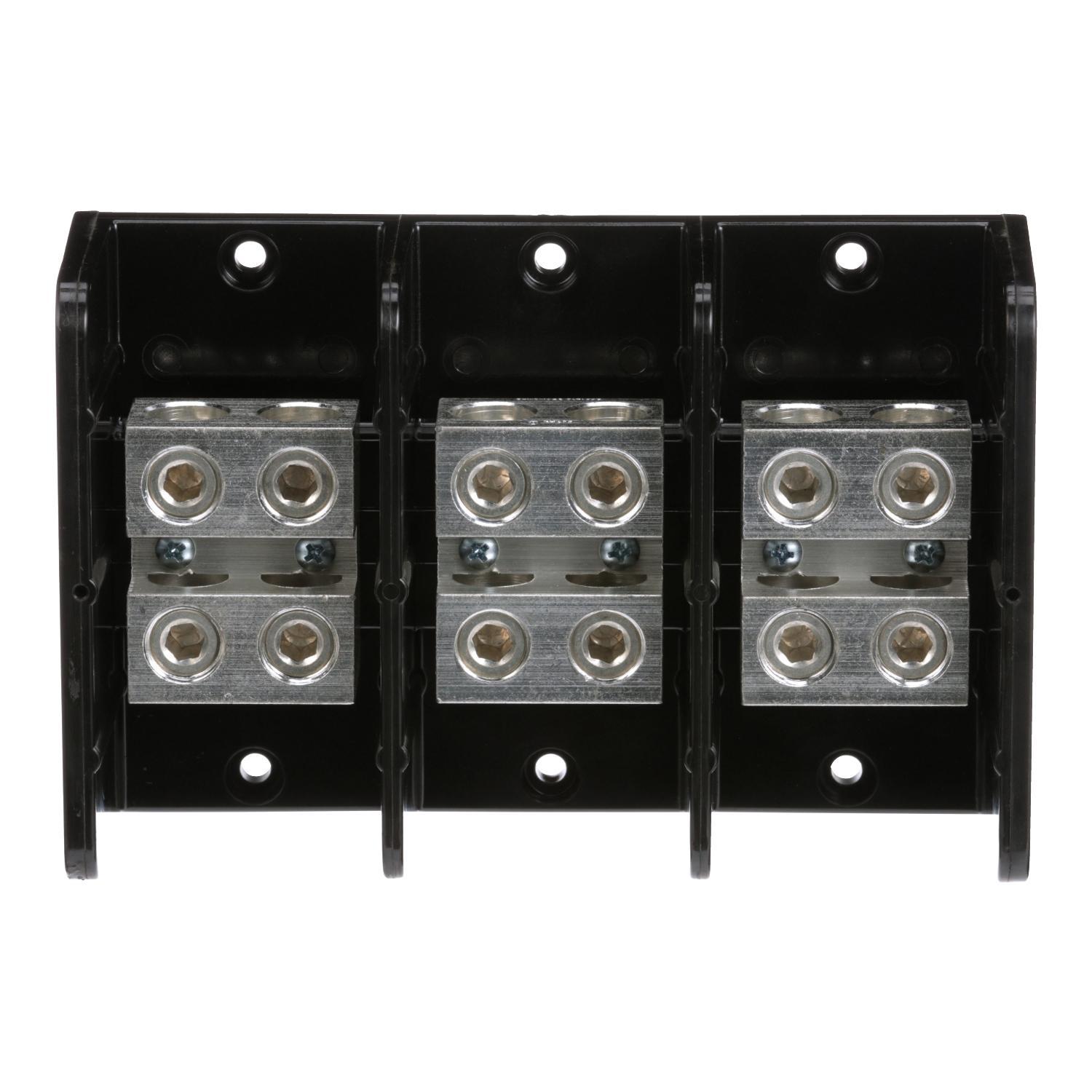

Square D 9080LBA365202 Tesys Linergy Multi-Pole Power Distribution Block
Square D TeSys Linergy Multi-Pole Power Distribution Block, Linergy, Series: 9080LB, 600 VAC/VDC, 500/620 A, 3 Pole, 2 Primary Connections/Pole, 2 Secondary Connection/Pole, (2) 6 AWG to 350 kcmil Wire, 100 kA Short Circuit, Phenolic, Clear, 8.54 in W x 3.12 in D x 5.5 in H Dimensions
Additional Description: SQD -9080LBA365202 PWR DISTR BLK 600V 620A TYPE LB
Catalog Description: Power distribution block, Linergy, 3 pole, 2 line, 2 load, 620A Cu, 500A Al, 600V
