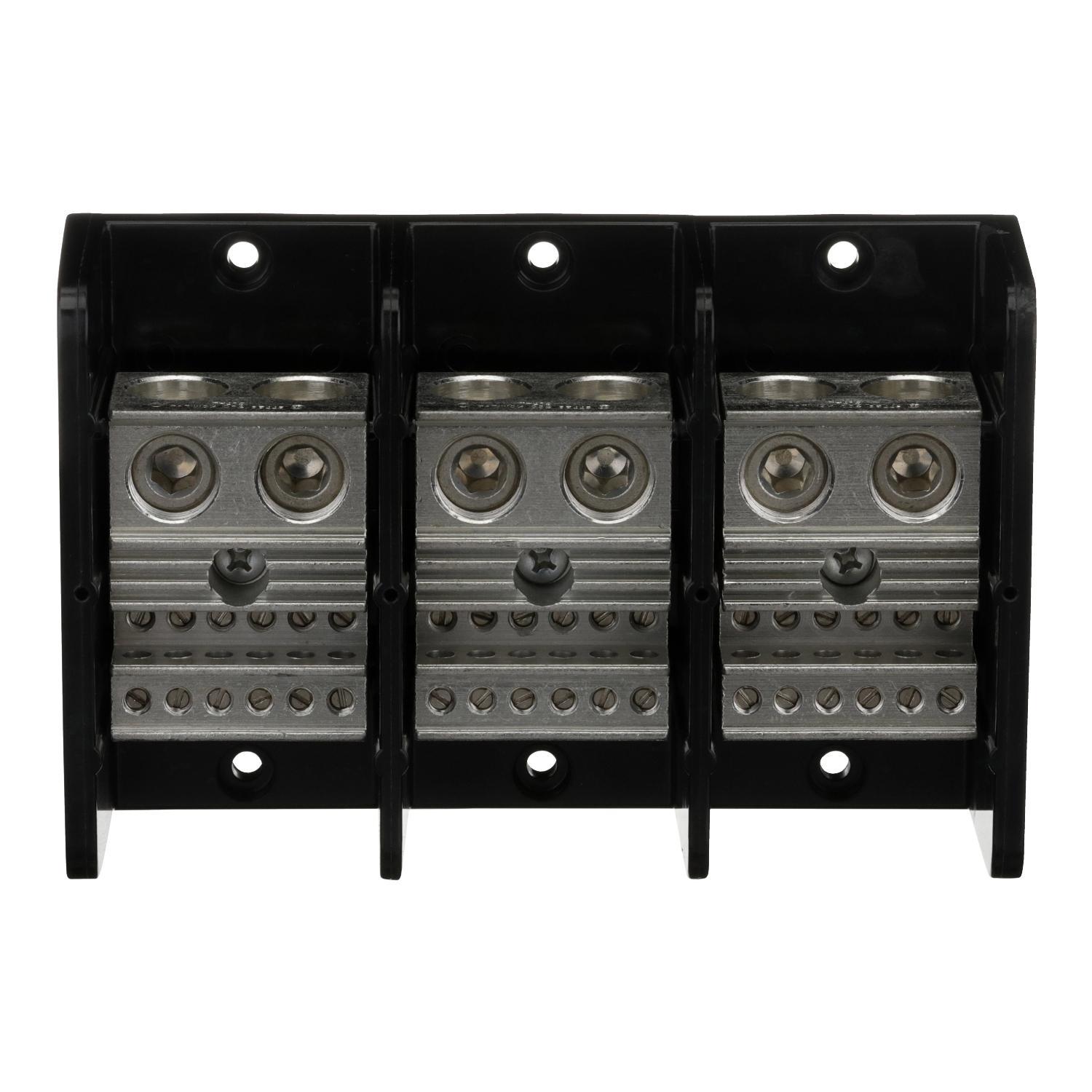

Square D 9080LBA365212 Tesys Linergy Multi-Pole Power Distribution Block
Square D 9080LBA365212 Tesys Linergy Multi-Pole Power Distribution Block
Part #:9080LBA365212
SKU #: 194907
Key Features
Part #:9080LBA365212
SKU #: 194907
Brand: Square D
Amperage Rating: 620/760 A, 760 A, 620 A
Dimensions: 5.5 in H x 8.54 in W x 3.12 in D, 8.54 in W x 3.12 in D x 5.5 in H
Number of Poles: 3
Series: 9080LB
Short Circuit Current Rating (kA): 65, 65 kA
- Main (2) 4 AWG to 500 kcmil branch, (12) 14 to 4 AWG aluminum/copper wire size
- Lugs tin plated aluminum connection
- Block type copper/aluminum wire
- Service class c
- -40 to 302 deg f temperature rating
- (2) lug primary and (12) lug secondary
Square D 9080LBA365212 Tesys Linergy Multi-Pole Power Distribution Block
Square D TeSys Linergy Multi-Pole Power Distribution Block, General Purpose Linergy Standard, Series: 9080LB, 600 VAC/VDC, 620/760 A, 3 Pole, 2 Primary Connections/Pole, 12 Secondary Connection/Pole, (2) 4 AWG to 500 kcmil, (12) 14 to 4 AWG Wire, 65 kA Short Circuit, Phenolic, Black, 8.54 in W x 3.12 in D x 5.5 in H Dimensions
Additional Description: SQD -9080LBA365212 PWR DISTR BLK 600V 760A
Catalog Description: Power distribution block, Linergy, 3 pole, 2 line, 12 load, 760A Cu, 620A Al, 600V
