Part Number # 9080LBC263206
SKU # 2370876
Image Disclaimers Message
9080LBC263206

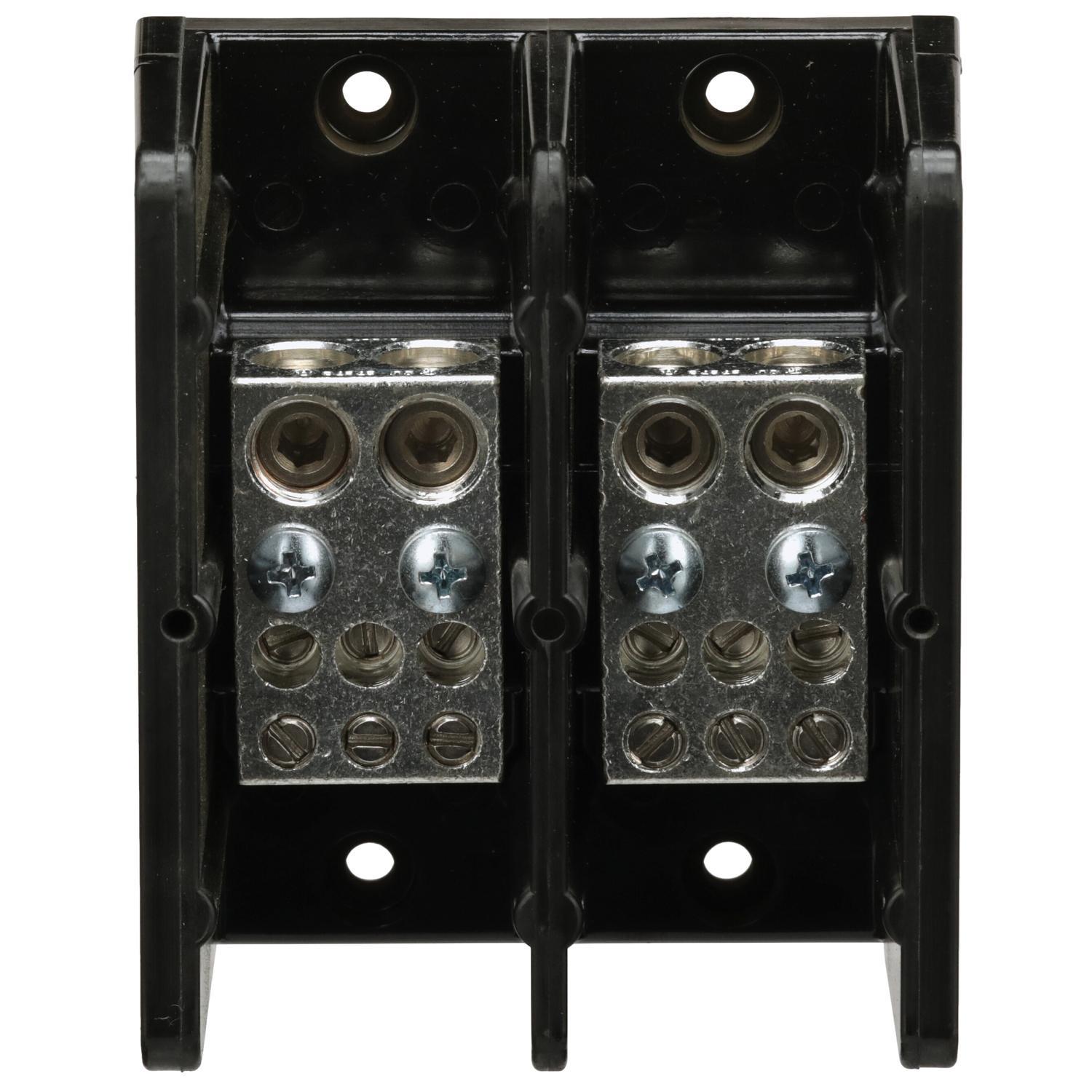

Square D 9080LBC263206 Linergy Multi-Pole Power Distribution Block
Part Number # 9080LBC263206
SKU # 2370876
$221.19 / Each
Typical price:$242.77 / Each
Square D 9080LBC263206 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9080LBC263206 |
| SKU #: | 2370876 |
| Amperage Rating: | 350, 350 A |
| Dimensions: | 3.47 in W x 2.61 in D x 4 in H, 4 in H x 3.47 in W x 2.61 in D |
| Number of Poles: | 2 |
| Series: | 9080LB |
| Short Circuit Current Rating (kA): | 65, 65 kA |
| Type: | Linergy |
| Wire Size: | 14 to 2/0 AWG, 14 to 4 AWG Al/Cu |
| Country of origin: | US |
| Material: | Phenolic |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121410 |
| UPC: | 00785901157120 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$221.19 / Each
Typical price:$242.77 / Each
Quantity:
- Square D Linergy Multi-Pole Power Distribution Block, Linergy, Series: 9080LB, 600 V AC/DC, 350 A, 2 Pole, 2 Primary Connections/Pole, 6 Secondary Connection/Pole, 14 to 2/0 AWG, 14 to 4 AWG Al/Cu Wire, 65 kA Short Circuit, Phenolic, 3.47 in W x 2.61 in D x 4 in H Dimensions
9080LBC263206 Application
For 9080LB and 9080LB32 power distribution block covers and general purpose applications9080LBC263206 Item Features
- Two lug opening on main side and six on branch side
- The housing is made of general purpose phenolic
9080LBC263206 Standards
RoHS Compliant|REACH Compliant|CE Certified|CSA File No. 62144 Class 6228-01|UL File No. E60616 CCN Guide No. XCFR2|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2370876Part Number #9080LBC263206UNSPSC39121410UPC00785901157120
