Part Number # 9422ATCF301
SKU # 82084
Image provided may only be a representation of
final product and may include optional equipment
9422ATCF301

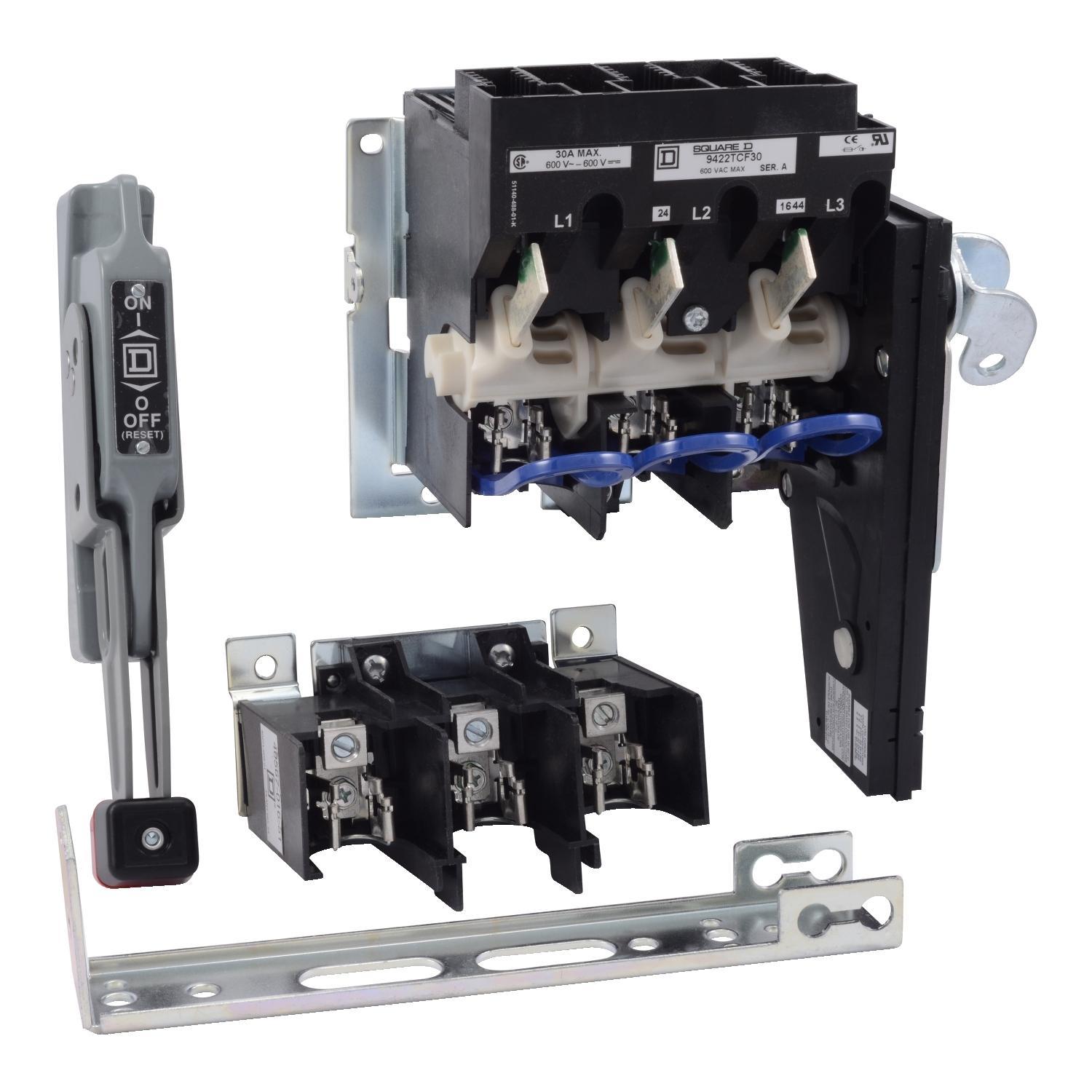

Square D 9422ATCF301 Fixed/Variable Depth Fusible Disconnect Switch, 250 VAC, 30 A, 5 hp
Part Number # 9422ATCF301
SKU # 82084
$597.03 / Each
Typical price:$661.32 / Each
Square D 9422ATCF301 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9422ATCF301 |
| SKU #: | 82084 |
| Actuator Type: | Handle |
| Amperage Rating: | 30, 30 A |
| Enclosure Type: | NEMA 1/3/3R/4/12 |
| Horsepower: | 5, 5 hp |
| Series: | 9422AT |
| Terminal Type: | Lug |
| Type: | Fixed/Variable Depth Fusible |
| Country of origin: | MX |
| Mounting type: | Bracket/Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122233 |
| UPC: | 00785901872153 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$597.03 / Each
Typical price:$661.32 / Each
Quantity:
Square D 9422ATCF301 Fixed/Variable Depth Fusible Disconnect Switch, 250 VAC, 30 A, 5 hp
Brand: Square D
Part Number: 9422ATCF301
Additional Description: SQD -9422ATCF301 Switch A1 Handle+Mech Fuse 30A 250Vac 250VAC
Catalog Description: Operating mechanism, flange mounted, variable depth, 30A, 250V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
9422ATCF301 Specifications
- 7.5 hp at 200/230 VAC, 15 hp at 460 VAC, 20 hp at 575 VAC rated power
- Class H, K, J and R fuse type trip
9422ATCF301 Application
For control panel installations and variable depth rod operator applications9422ATCF301 Includes
Switch, 9422A1 6 in Handle and Operating Mechanism9422ATCF301 Item Features
- Used with all disconnect switch and circuit breaker installations
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
9422ATCF301 Standards
RoHS Compliant|ECCN: EAR99|CSA File No. LR44199 Class 4652-04|UL File No. E52639|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov9422ATCF301 Warranty
18 monthsSKU #82084Part Number #9422ATCF301UNSPSC39122233UPC00785901872153
