9422TCN30

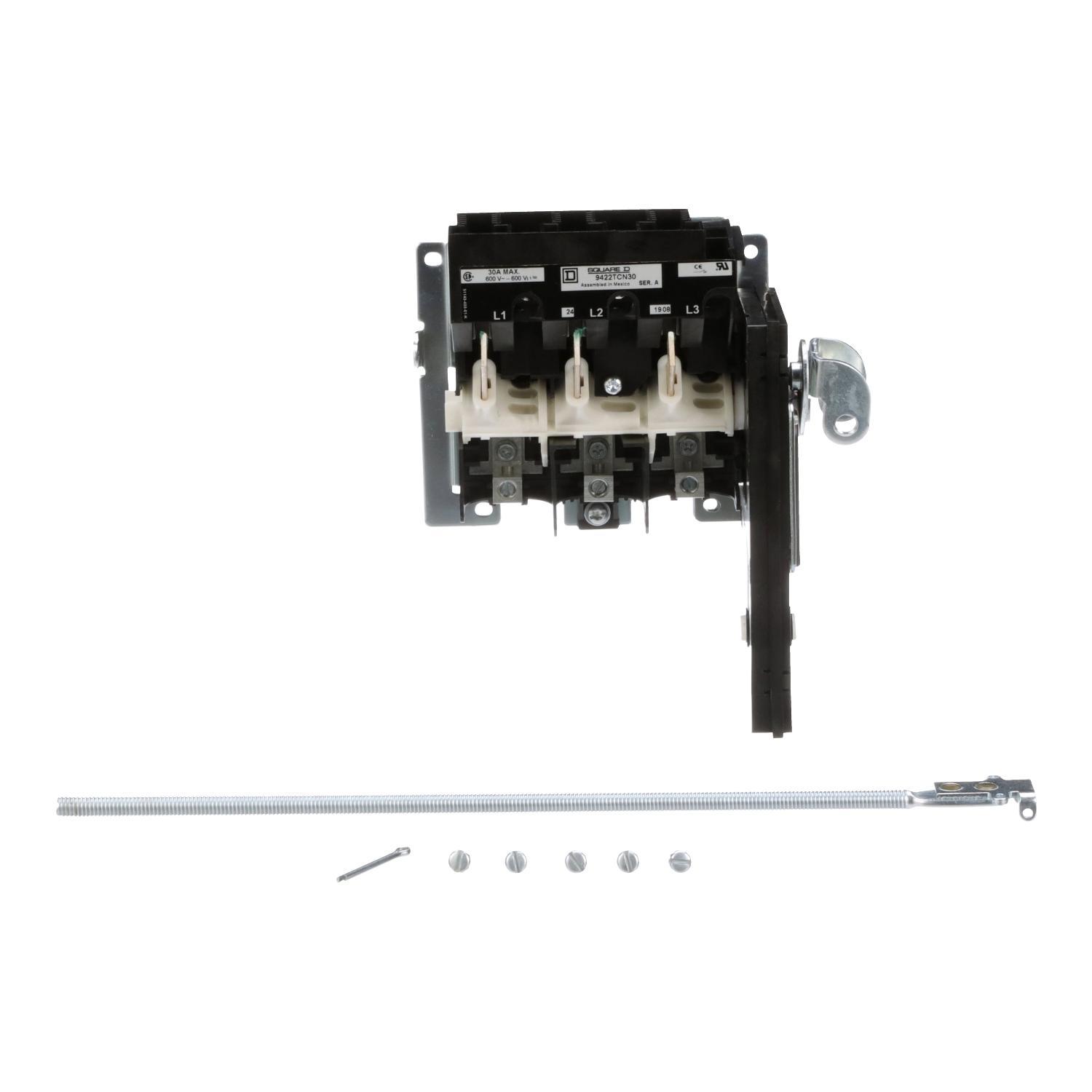

Square D 9422TCN30 Fixed/Variable Depth Non-Fusible Disconnect Switch
Part Number # 9422TCN30
SKU # 2227687
$386.47 / Each
Typical price:$424.18 / Each
Square D 9422TCN30 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9422TCN30 |
| SKU #: | 2227687 |
| Actuator Type: | Type A Handle |
| Amperage Rating: | 30 A |
| Horsepower: | 20 hp |
| Number of Poles: | 3 |
| Series: | 9422T |
| Terminal Type: | Lug |
| Type: | Fixed/Variable Depth Non-Fusible |
| Country of origin: | MX |
| Mounting type: | Bracket/Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122233 |
| UPC: | 00785901879749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$386.47 / Each
Typical price:$424.18 / Each
Quantity:
- Square D Disconnect Switch, Fixed/Variable Depth Non-Fusible, Series: 9422T, 600 V AC, 30 A, 20 hp, 3 Pole, Type A Handle Actuator, Bracket/Flange Mounting, Lug Terminal
9422TCN30 Specifications
- 7.5 hp at 200/230 VAC, 15 hp at 460 VAC, 5 hp at 250 VDC rated power
- Uses 9422 type A handle
9422TCN30 Application
For control panel installations and variable depth rod operator applications9422TCN30 Includes
Non-Fusible Disconnect Switch, Handle and Operating Mechanism9422TCN30 Item Features
- Used with all disconnect switch and circuit breaker installations
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
9422TCN30 Standards
RoHS Compliant|ECCN: EAR99|CSA File No. LR44199 Class 4652-04|UL 98 File No. E52639|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov9422TCN30 Warranty
18 MonthsSKU #2227687Part Number #9422TCN30UNSPSC39122233UPC00785901879749
