Brand: Square D

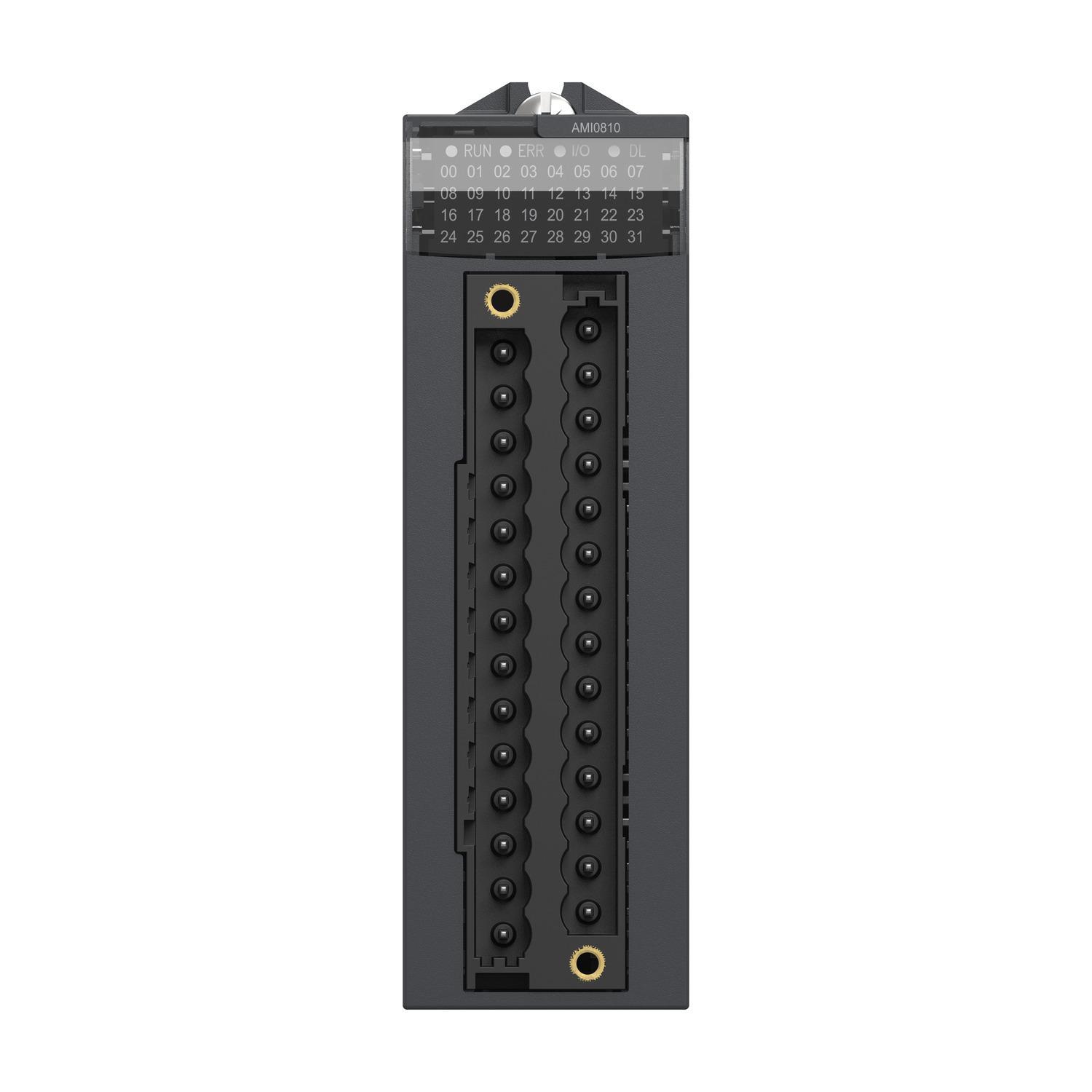

Square D BMXAMI0810 Modicon Analog Input Module
Image Disclaimers Message
Brand: Square D
Square D BMXAMI0810 Modicon Analog Input Module
Brand: Square D
Square D BMXAMI0810 Modicon Analog Input Module
Part #:BMXAMI0810
SKU #: 2196538
$1177.80/EA
Key Features
Part #:BMXAMI0810
SKU #: 2196538
Brand: Square D
Amperage Rating: 150/45, 150/45 mA
Series: X80
Temperature Rating (Degrees F): 0 to 60, 0 to 60 deg C
Type: Isolated
Country of origin: FR
$1177.80/EA
Call For Availability
- (1) connector 28 ways electrical connection
- Isolated input output isolation
- High level input
- 10 mohm input impedance
- 250 Ohm internal conversion resistor
- 0.1% to 15 ppm/deg c precision of internal conversion resistor
- First order digital filtering
- 1 ms +1 ms x number of channel used fast read cycle time
- 9 ms for 8 channel nominal read cycle time
- 30/50 ppm/deg c temperature drift
- 300 VDC between channel, 1400 VDC between channel and ground, 1400 VDC between channel and bus isolation voltage
- 1 led green run, 1 led per channel green channel diagnostic, 1 led red ERR, 1 led red input/output status led
- 10 to 95% without condensation relative humidity
- IP20 deg of protection conforming to IEC 60529
- TC protective treatment
Specifications
Brand: Square D
Amperage Rating: 150/45, 150/45 mA
Series: X80
Temperature Rating (Degrees F): 0 to 60, 0 to 60 deg C
Type: Isolated
Country of origin: FR
Number of inputs: 8
Resolution: 15, 15 bit
Manufacturer Name: Schneider Electric
UNSPSC: 32151705
UPC: 00785901676003
Square D BMXAMI0810 Modicon Analog Input Module
Square D Modicon Analog Input Module, Isolated, Series: X80, 8 Inputs, 16 bit Conversion Rate, 15 bit Resolution, 150/45 mA, 0 to 60 deg C
Additional Description: SQD -BMXAMI0810 ANA 8 U/I IN ISOLATED FAST FAST
Catalog Description: analog isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
Item FeaturesModicon M340 Automation Platform Applications
Item Features
Item FeaturesRoHS Compliant|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
