Part Number # CA2SK20B7
SKU # 2193481
Image Disclaimers Message
CA2SK20B7

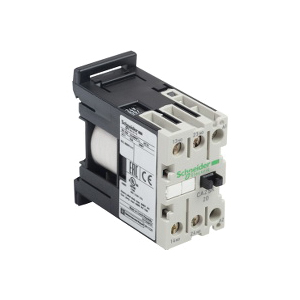

Square D CA2SK20B7 Tesys Control Relay
Part Number # CA2SK20B7
SKU # 2193481
$58.00 / Each
Typical price:$58.73 / Each
Square D CA2SK20B7 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | CA2SK20B7 |
| SKU #: | 2193481 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 24, 24 VAC |
| Contact Form: | 2NO, 2NO 2 Form A |
| Contact Rating: | 10 A at 690 VAC |
| Dimensions: | 1.06 in W x 2.19 in D x 2.2 in H, 2.2 in H x 1.06 in W x 2.19 in D |
| Enclosure Type: | IP2X |
| Frequency Rating: | 400, 400 Hz |
| Series: | SK Series |
| Temperature Rating (Degrees F): | -20 to 50, -4 to 122, -4 to 122 deg F |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Country of origin: | CZ |
| Mounting type: | Plate/Rail, Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901866695 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$58.00 / Each
Typical price:$58.73 / Each
Quantity:
Square D CA2SK20B7 Tesys Control Relay
Brand: Square D
Part Number: CA2SK20B7
Square D TeSys Control Relay, Series: SK Series, 10 A, 400 Hz Frequency, 24 VAC Coil, 2NO Contact Form, Plate/Rail Mounting, Screw Clamp Terminal, IP2X Enclosure, -4 to 122 deg F, 2.2 in H x 1.06 in W x 2.19 in D Dimensions
Additional Description: SQD -CA2SK20B7 RELAY
Catalog Description: Control relay, TeSys SK, 2NO, <= 690V, 24V AC coil
CA2SK20B7 Application
For use with control circuitCA2SK20B7 Item Features
- 690 VAC conforming to CSA C22.2 No 14, 690 VAC conforming to BS 5424, 690 VAC conforming to IEC 60947, 690 VAC conforming to VDE 0110 group C, 690 VAC conforming to UL 508 rated insulation voltage
- 24 VAC 50/60 Hz control circuit voltage
- 6 to 8 ms coil de-energization and no opening, 7 to 14 ms coil energization and no closing operating time
- 1200 cycles/hr operating rate
- 1.4 W heat dissipation
- -58 to 158 deg F storage temperature
- 690 VAC system voltage
CA2SK20B7 Standards
UL Listed|BS 5424|IEC 60947|NF C 63-110|VDE 0660SKU #2193481Part Number #CA2SK20B7UNSPSC39122331UPC00785901866695
