Part Number # CAD32U7
SKU # 2210744
Image Disclaimers Message
CAD32U7

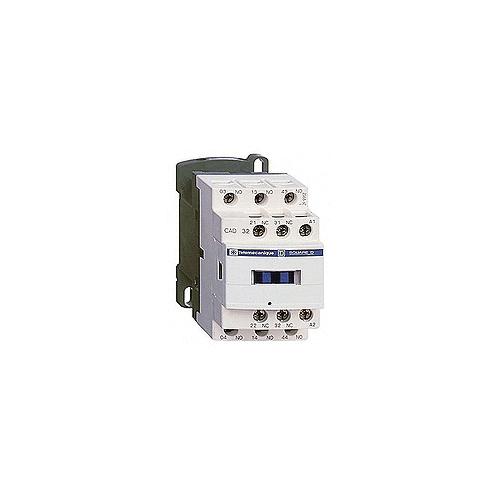

Square D CAD32U7 Tesys Control Relay
Part Number # CAD32U7
SKU # 2210744
$82.24 / Each
Typical price:$83.28 / Each
Square D CAD32U7 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | CAD32U7 |
| SKU #: | 2210744 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 240, 240 VAC |
| Contact Form: | 3NO-2NC, 3NO-2NC 3 Form A/2 Form B |
| Contact Rating: | 10 A at 600 VAC |
| Dimensions: | 1.77 in W x 3.66 in D x 3.03 in H, 3.03 in H x 1.77 in W x 3.66 in D |
| Enclosure Type: | IP2X |
| Frequency Rating: | 400, 400 Hz |
| Series: | D Series |
| Temperature Rating (Degrees F): | -40 to 158, -40 to 158 deg F, -40 to 70 |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Country of origin: | FR |
| Mounting type: | Plate/Rail, Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901204879 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.24 / Each
Typical price:$83.28 / Each
Quantity:
Square D CAD32U7 Tesys Control Relay
Brand: Square D
Part Number: CAD32U7
Square D TeSys Control Relay, Series: D Series, 10 A, 400 Hz Frequency, 240 VAC Coil, 3NO-2NC Contact Form, Plate/Rail Mounting, Screw Clamp Terminal, IP2X Enclosure, -40 to 158 deg F, 3.03 in H x 1.77 in W x 3.66 in D Dimensions
Additional Description: SQD -CAD32U7 TeSys AUXILIARY CONTACTOR
Catalog Description: TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 240 V AC standard coil
CAD32U7 Application
For use with control circuitCAD32U7 Item Features
- 690 VAC conforming to IEC 60947-5-1, 600 V certifications UL, 600 V certifications CSA rated insulation voltage
- 240 VAC 50/60 Hz control circuit voltage
- 4 to 19 ms coil energization and NC opening, 12 to 22 ms coil energization and no closing, 4 to 12 ms coil de-energization and no opening, 6 to 17 ms coil de-energization and NC closing operating time
- 180 cycles/min operating rate
- 17 V minimum switching voltage
- 5 mA minimum switching current
- 6 kV conforming to IEC 60947 rated impulse withstand voltage
- -76 to 176 deg F storage temperature
- 690 VAC system voltage
CAD32U7 Standards
VDE 0660|IEC 60947-5-1, NF C 63-140, BS 4794, EN 60947-5|CSA Certified|UL Listed|RoHS CompliantSKU #2210744Part Number #CAD32U7UNSPSC39122331UPC00785901204879
