Part Number # D225N
SKU # 2210656
Image Disclaimers Message
D225N

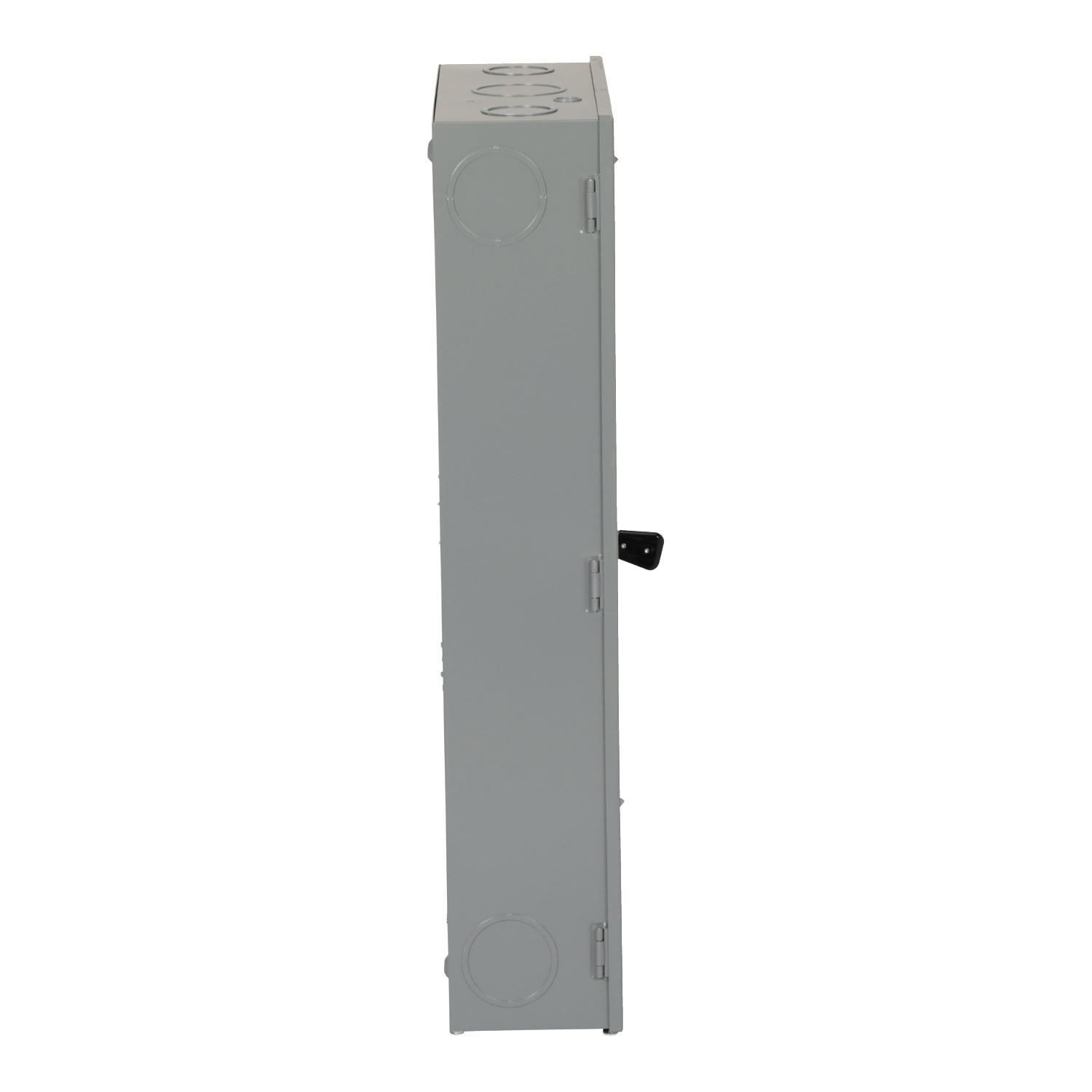

Square D D225N Safety Switch
Part Number # D225N
SKU # 2210656
$1314.00 / Each
Typical price:$2555.00 / Each
Square D D225N Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | D225N |
| SKU #: | 2210656 |
| Actuator Type: | Handle |
| Amperage Rating: | 400, 400 A |
| Contact Form: | DPST |
| Dimensions: | 24 in W x 8.88 in D x 45.12 in H |
| Enclosure Type: | NEMA 1 |
| Finish: | Baked Enamel/Galvanized/Phosphatized |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | E3 Series |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Terminal Type: | Lug |
| Type: | Fusible, Fusible General Duty |
| Color: | Gray |
| Country of origin: | MX |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 00785901460800 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1314.00 / Each
Typical price:$2555.00 / Each
Quantity:
- Square D Safety Switch, Fusible General Duty, Series: E3 Series, 240 V AC, 400 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, DPST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 24 in W x 8.88 in D x 45.12 in H Dimensions, Steel, Gray, Baked Enamel/Galvanized/Phosphatized
D225N Application
General Purpose, Indoor, Light Commercial and Residential ApplicationsD225N Item Features
- Provides over-current and short circuit protection
- Excellent for disconnecting lighting, air condition, and appliances
- Quick make, quick break operating mechanism
D225N Standards
Buy American Act Compliant|RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875|NEMA KS1|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.govSKU #2210656Part Number #D225NUNSPSC39122205UPC00785901460800
