Brand: Square D

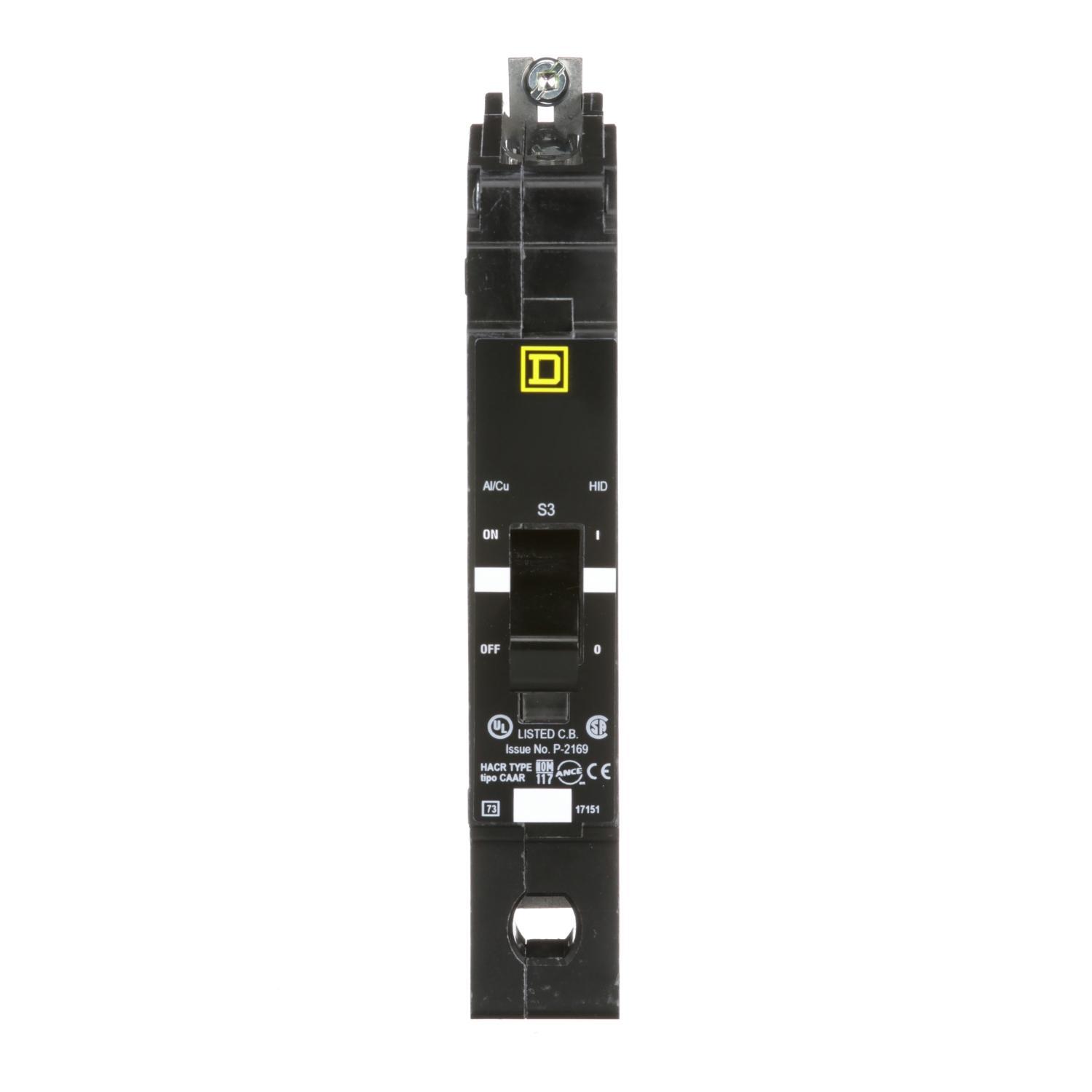

Square D EDB14030 E-Frame Miniature Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D EDB14030 E-Frame Miniature Circuit Breaker
Brand: Square D
Square D EDB14030 E-Frame Miniature Circuit Breaker
Part #:EDB14030
SKU #: 2262321
$123.04/EA
Key Features
Part #:EDB14030
SKU #: 2262321
Brand: Square D
Amperage Rating: 30, 30 A
Dimensions: 4.05 in L x 0.98 in W x 5.66 in H
Frame: E
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 18, 18 kA
$123.04/EA
- Visi-Trip trip indicator
- 270 A hold, 875 A trip
- For merchandised NF panel boards
- 12 to 6 AWG Aluminum, 14 to 6 AWG copper
Specifications
Brand: Square D
Amperage Rating: 30, 30 A
Dimensions: 4.05 in L x 0.98 in W x 5.66 in H
Frame: E
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 18, 18 kA
Number of Poles: 1
Phase: 1, 1 ph
Temperature Rating (Degrees F): 104, 40 deg C
Trip Range: 270 to 875, 270 to 875 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Molded Case Standard, Type EDB Molded Case Standard
Voltage Rating: 277, 277 VAC
Wire Size: 12 to 6 AWG, 14 to 6 AWG
Connection type: Lug
Country of origin: MX
Mounting type: Bolt-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121603
UPC: 00785901878933
Square D EDB14030 E-Frame Miniature Circuit Breaker
Square D E-FRAME Miniature Circuit Breaker, Type EDB Molded Case Standard, 277 VAC, 30 A, 50/60 Hz, 18 kA Interrupt, E Frame, Thermal/Magnetic Trip, 270 to 875 A Trip, 1 Pole, 1 ph, Lug, 12 to 6 AWG, 14 to 6 AWG Wire, Bolt-On Mount, 40 deg C, 4.05 in L x 0.98 in W x 5.66 in H
Additional Description: SQD -EDB14030 MINIATURE CIRCUIT BREAKER 277V 30A
Catalog Description: [TAA] Mini circuit breaker, E-Frame, 30A, 1 pole, 277VAC, 25kA max, bolt on
Item FeaturesFor providing overload and short circuit protection
Item Features
Item FeaturesCSA Certified|HACR Rated|NOM 117|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL Listed
