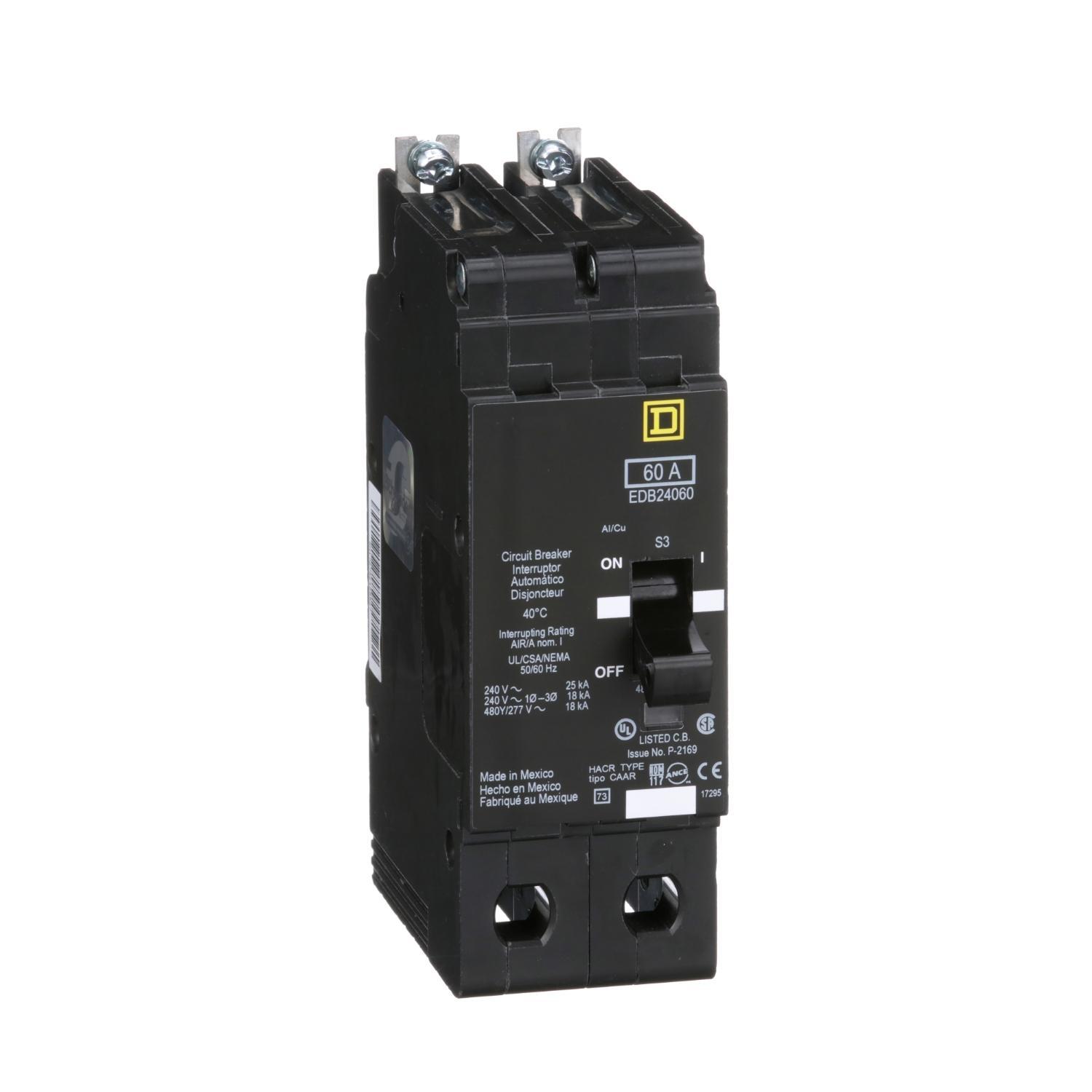

Square D EDB24060 E-Frame Miniature Circuit Breaker
Image Disclaimers Message
Square D EDB24060 E-Frame Miniature Circuit Breaker
Square D EDB24060 E-Frame Miniature Circuit Breaker
Part #:EDB24060
SKU #: 2221543
Key Features
Part #:EDB24060
SKU #: 2221543
Brand: Square D
Amperage Rating: 60 A
Dimensions: 4.05 in L x 1.96 in W x 5.66 in H, 4.05 in L x 3.92 in W x 5.66 in H
Frame: E
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 18, 18 kA
- Visi-Trip trip indicator
- 630 A hold, 1800 A trip current
- For merchandised NF panel boards
- 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper wire
Square D EDB24060 E-Frame Miniature Circuit Breaker
Square D E-FRAME Miniature Circuit Breaker, Type EDB Molded Case Standard, 277/480Y VAC, 60 A, 50/60 Hz, 18 kA Interrupt, E Frame, Thermal/Magnetic Trip, 630 to 1800 A Trip, 3 Pole, 1 ph, Lug, 12 to 2 AWG, 14 to 2/0 AWG Wire, Bolt-On Mount, 50 deg C, 4.05 in L x 3.92 in W x 5.66 in H
Additional Description: SQD -EDB24060 MINIATURE CIRCUIT BREAKER 480Y/277V 100A 60A
Catalog Description: [TAA] Mini circuit breaker, E-Frame, 60A, 2 pole, 480Y/277VAC, 25kA max, bolt on
