Brand: Square D
EDB34040SA

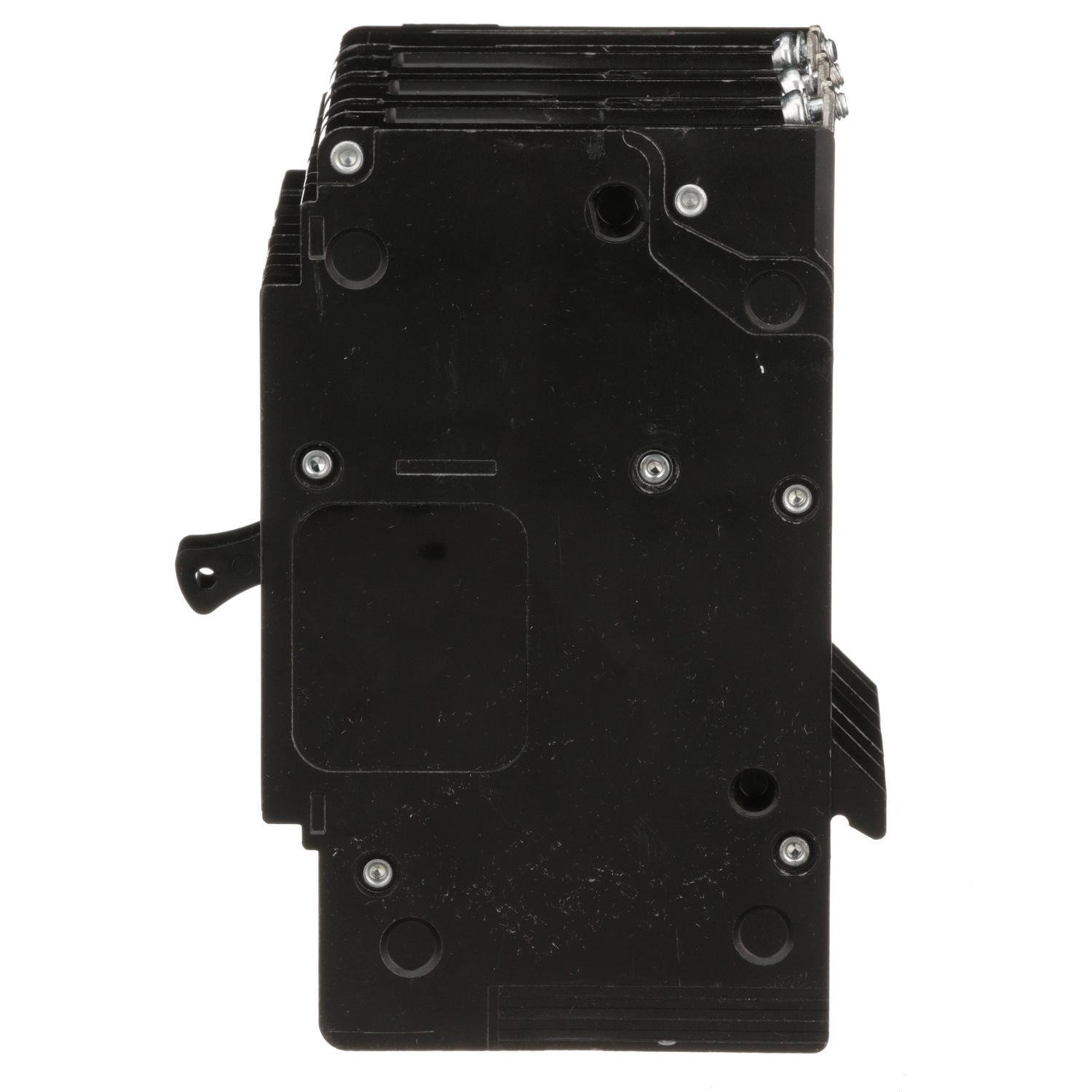

Square D EDB34040SA Miniature Circuit Breaker
Part Number # EDB34040SA
SKU # 2224646
$1168.07 / Each
Typical price:$1424.00 / Each
Square D EDB34040SA Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | EDB34040SA |
| SKU #: | 2224646 |
| Amperage Rating: | 40, 40 A |
| Dimensions: | 4.05 in L x 3.92 in W x 5.66 in H |
| Frame: | E |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 18 kA at 277 VAC, 18 kA at 480Y/277 VAC, 25 kA at 120/240 VAC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 630 to 1800, 630 to 1800 A |
| Trip Type: | Shunt/Thermal Magnetic, Thermal Magnetic |
| Type: | Type EDB Ground Fault |
| Wire Size: | 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu |
| Connection type: | Lug |
| Country of origin: | MX |
| Material: | Thermoset Composite Resin |
| Mounting type: | Bolt-On, Bolted-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901103318 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1168.07 / Each
Typical price:$1424.00 / Each
Quantity:
- Square D Miniature Circuit Breaker, Type EDB Ground Fault, 277/480Y V AC, 40 A, 50/60 Hz Frequency, 18 kA at 277 VAC, 18 kA at 480Y/277 VAC, 25 kA at 120/240 VAC Interrupt, E Frame, Thermal Magnetic Trip, 630 to 1800 A Trip, 3 Pole, 3 ph, Lug Connection, 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu Wire, Bolted-On Mounting, 40 deg C, 4.05 in L x 3.92 in W x 5.66 in H Dimensions, Thermoset Composite Resin
EDB34040SA Application
For HID rated, panelboard, overload and short circuit protectionEDB34040SA Item Features
- Used in lighting panelboards
- From 15A to 125A ratings
- Troubleshoot faster with Visi-Trip
EDB34040SA Standards
RoHS Compliant|CSA File No. LR92886|Federal Specification W-C-375B/GEN|HACR Rated|NOM 117|cULus Listed|UL 489 File No. E84967|PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.govSKU #2224646Part Number #EDB34040SAUNSPSC39121603UPC00785901103318
