$548.76/EA
- 14 to 6 AWG copper, 12 to 6 AWG aluminum wire
- 25 ka at 120 VAC, 25 ka at 120/240 VAC, 25 ka at 240 VAC, 18 ka at 480Y/347 VAC, 14 ka at 600Y/347 vac interrupt rating
- 270 a hold, 875 a trip
- High intensity discharge rated
- Visi-Trip trip indicator
Specifications
Brand: Square D
Amperage Rating: 20, 20 A
Dimensions: 5.66 in L x 2.94 in W x 4.05 in H
Frame: EDB
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 14, 14 kA
Number of Poles: 3
Phase: 3
Temperature Rating (Degrees F): 40, 40 deg C
Trip Range: 270 to 875, 270 to 875 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Standard
Voltage Rating: 600Y/347 VAC
Wire Size: 14 to 6 AWG, 12 to 6 AWG
Connection type: Lug
Country of origin: MX
Material: Thermoset Composite Resin
Mounting type: Bolt-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121603
UPC: 00785901234203

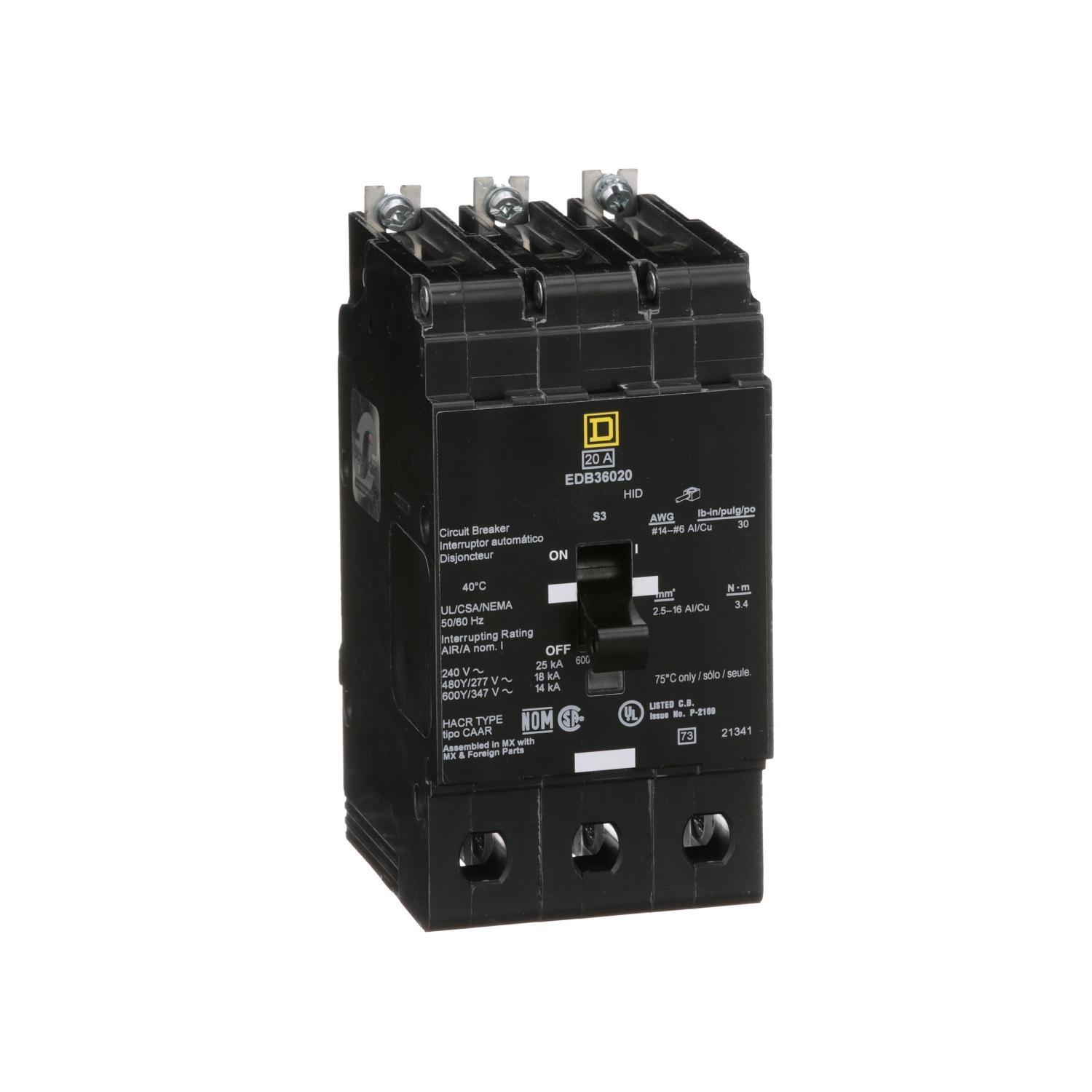

Square D EDB36020 Molded Case Circuit Breaker
Square D Molded Case Circuit Breaker, Standard, 600Y/347 VAC, 20 A, 50/60 Hz Frequency, 14 kA Interrupt, EDB Frame, Thermal/Magnetic Trip, 270 to 875 A Trip, 3 Pole, 3 ph, Lug Connection, 14 to 6 AWG, 12 to 6 AWG Wire, Bolt-On Mounting, 40 deg C, 5.66 in L x 2.94 in W x 4.05 in H Dimensions, Thermoset Composite Resin
Additional Description: SQD -EDB36020 MINIATURE CIRCUIT BREAKER 600V 20A
Catalog Description: [TAA] Mini circuit breaker, E-Frame, 20A, 3 pole, 600Y/347VAC, 25kA max, bolt on
Item FeaturesFor used to provide overload and short circuit protection applications
Item Features
Item FeaturesUL Listed|CSA Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|RoHS Compliant
