Part Number # EJB24030
SKU # 2319258
Image Disclaimers Message
Brand: Square D
EJB24030

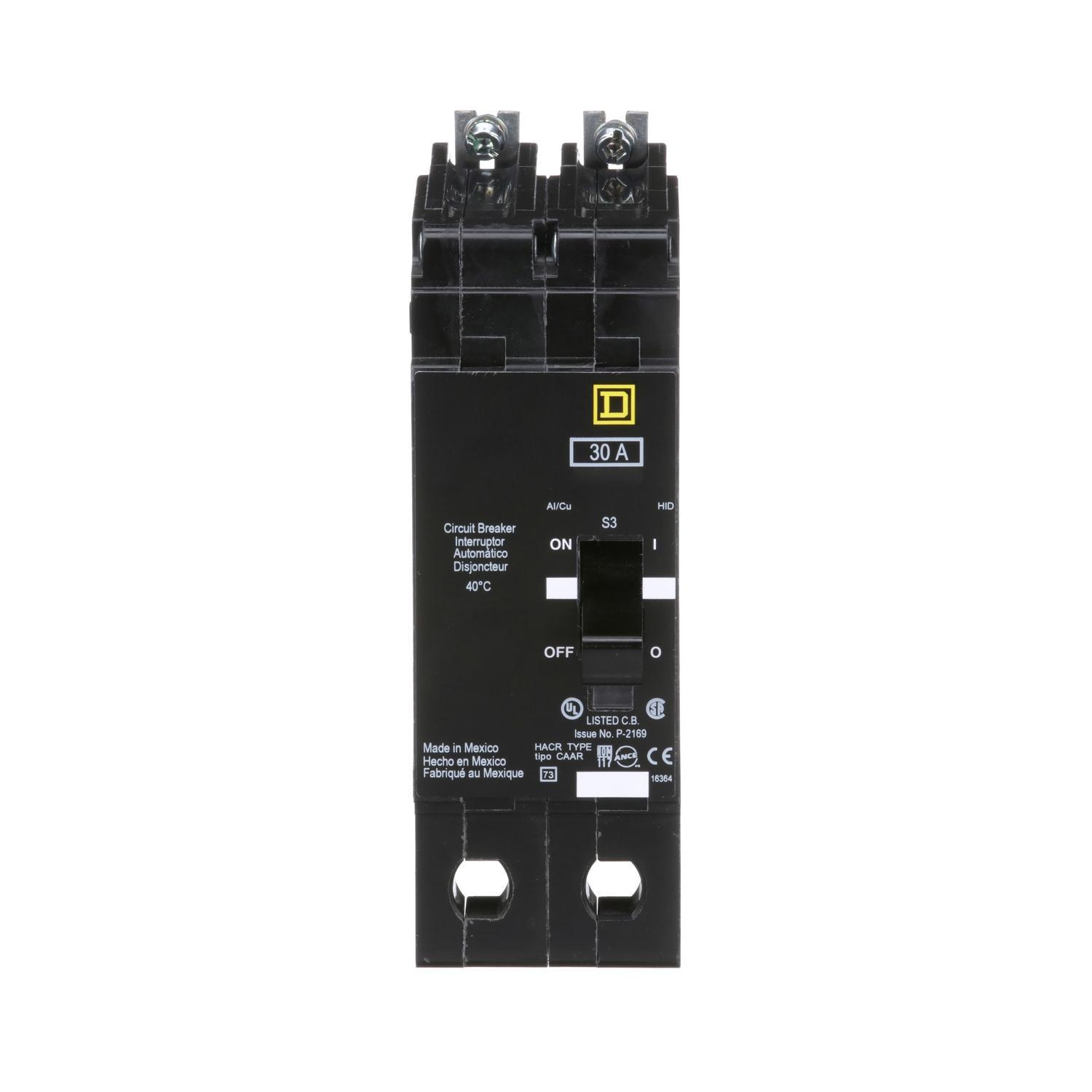

Square D EJB24030 E-Frame Miniature Circuit Breaker
Part Number # EJB24030
SKU # 2319258
$1017.96 / Each
Typical price:$1241.00 / Each
Square D EJB24030 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | EJB24030 |
| SKU #: | 2319258 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 4.05 in L x 1.96 in W x 5.66 in H |
| Frame: | E |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 100 kA at 240 VAC, 65 kA at 480Y/277 VAC, 65/100 kA |
| Number of Poles: | 2 |
| Phase: | 1, 1 ph |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 270 to 875, 875 A |
| Trip Type: | Thermal Magnetic |
| Type: | Type EJB, Type EJB Molded Case |
| Wire Size: | 14 to 6 AWG AL, 12 to 6 AWG Cu, 14 to 6 AWG, 12 to 6 AWG |
| Connection type: | Lug |
| Country of origin: | MX, US |
| Material: | Thermoset Composite Resin |
| Mounting type: | Bolt-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901128762 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1017.96 / Each
Typical price:$1241.00 / Each
Quantity:
- Square D E-FRAME Miniature Circuit Breaker, Type EJB Molded Case, 277/480Y V AC, 30 A, 50/60 Hz Frequency, 65/100 kA Interrupt, E Frame, Thermal Magnetic Trip, 875 A Trip, 2 Pole, 1 ph, Lug Connection, 14 to 6 AWG AL, 12 to 6 AWG Cu Wire, Bolt-On Mounting, 40 deg C, 4.05 in L x 1.96 in W x 5.66 in H Dimensions, Thermoset Composite Resin
EJB24030 Application
For NF panelboards, HID and HACR applicationsEJB24030 Item Features
- Superior overload and short circuit protection
- From 15A to 125A ratings
- Troubleshoot faster with Visi-Trip
- These breakers provide a wide variety of robust features for use in panelboards
EJB24030 Standards
CSA File No. LR92886|cULus Listed|Federal/SPecification W-C-375B/GEN|HACR Rated|NOM 117|PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov|RoHS Compliant|UL File No. 489 File No. E84967SKU #2319258Part Number #EJB24030UNSPSC39121603UPC00785901128762
