Brand: Square D
Square D EJB34125 Miniature Circuit Breaker
Part Number # EJB34125
SKU # 2217052

Brand: Square D
EJB34125
Square D EJB34125 Miniature Circuit Breaker
Part Number # EJB34125
SKU # 2217052
$4239.05 / Each
Typical price:$4826.00 / Each
Square D EJB34125 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | EJB34125 |
| SKU #: | 2217052 |
| Amperage Rating: | 125 A |
| Dimensions: | 4.05 in L x 2.94 in W x 5.66 in H |
| Frame: | E |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 100 kA at 240 VAC, 65 kA at 480Y/277 VAC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Range: | 1000 to 2300 A |
| Trip Type: | Thermal Magnetic |
| Type: | Type EJB Miniature |
| Wire Size: | 14 to 2/0 AWG, 12 to 2/0 AWG |
| Connection type: | Lug |
| Country of origin: | MX |
| Material: | Thermoset Composite Resin |
| Mounting type: | Bolt-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901161240 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$4239.05 / Each
Typical price:$4826.00 / Each
Quantity:
- Square D Miniature Circuit Breaker, Type EJB Miniature, 277/480Y V AC, 125 A, 50/60 Hz Frequency, 100 kA at 240 VAC, 65 kA at 480Y/277 VAC Interrupt, E Frame, Thermal Magnetic Trip, 1000 to 2300 A Trip, 3 Pole, 3 ph, Lug Connection, 14 to 2/0 AWG, 12 to 2/0 AWG Wire, Bolt-On Mounting, 40 deg C, 4.05 in L x 2.94 in W x 5.66 in H Dimensions, Thermoset Composite Resin
EJB34125 Application
HACR Rated and NF Panelboard ApplicationsEJB34125 Item Features
- Superior overload and short circuit protection
- From 15A to 125A ratings
- Troubleshoot faster with Visi-Trip
EJB34125 Standards
CSA File No. LR92886|cULus Listed|Federal/Specification W-C-375B/GEN|HACR Rated|NOM 117|PROP65: Cancer and reproductive Harm - www.p65warnings.ca.gov|RoHS Compliant|UL File No. 489 File No. E84967SKU #2217052Part Number #EJB34125UNSPSC39121603UPC00785901161240

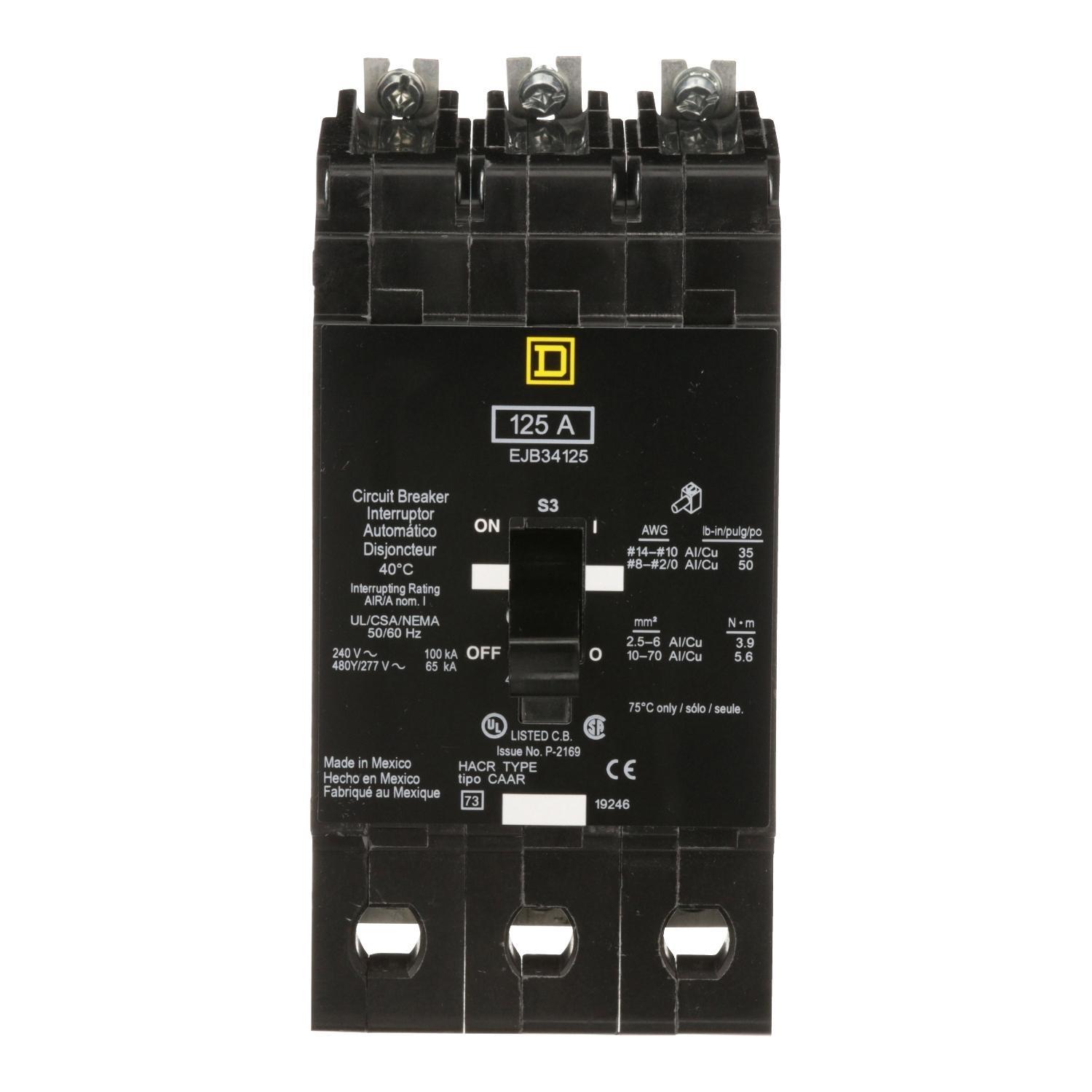

Image provided may only be a representation of final product and may include optional equipment
