H361AWC

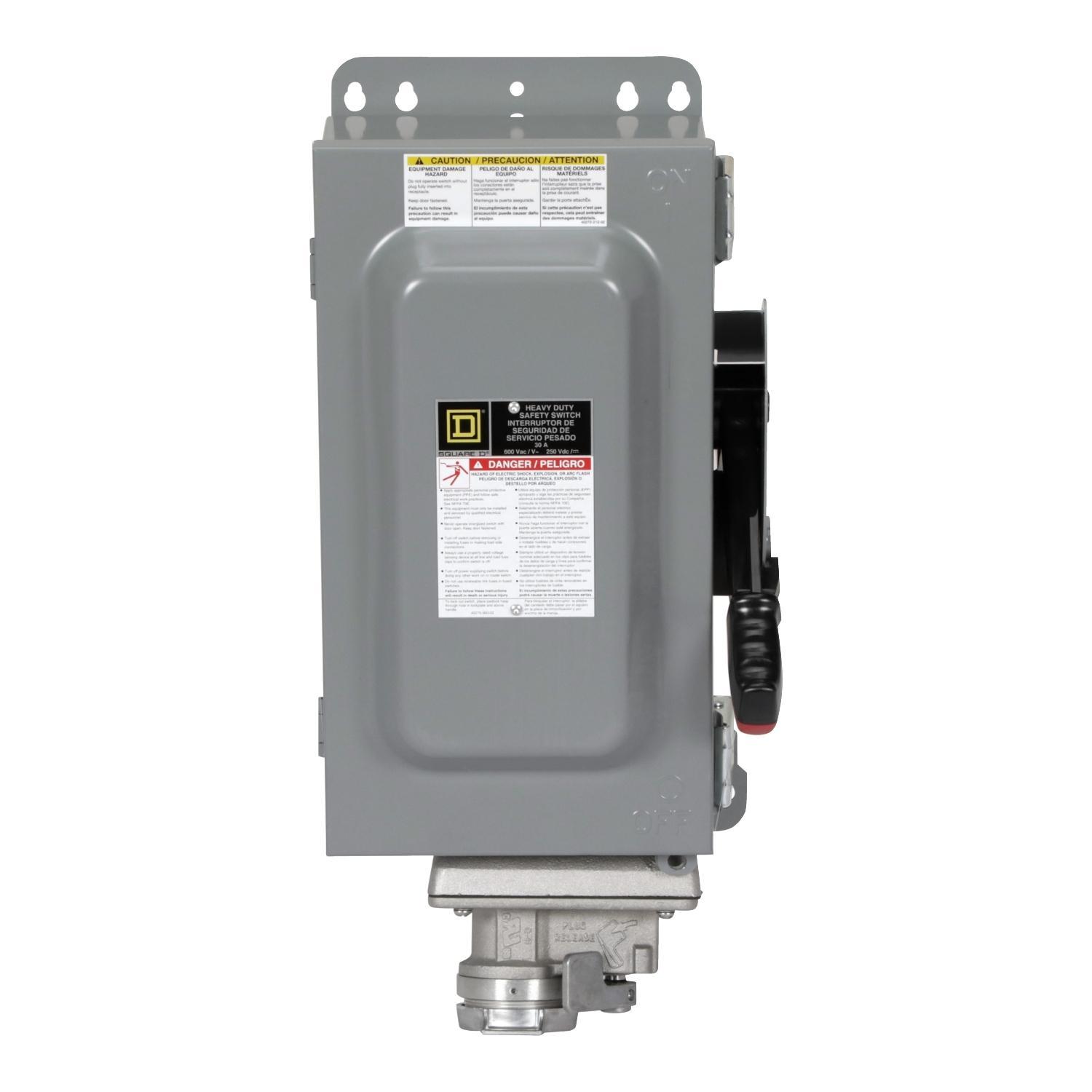

Square D H361AWC Heavy Duty Receptacle Safety Switch
Part Number # H361AWC
SKU # 2155292
$2240.72 / Each
Typical price:$2355.00 / Each
Square D H361AWC Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | H361AWC |
| SKU #: | 2155292 |
| Actuator Type: | Handle |
| Amperage Rating: | 30, 30 A |
| Contact Form: | 3PST |
| Dimensions: | 10-1/2 in W x 7 in D x 16-3/4 in H, 16-3/4 in H x 10-1/2 in W x 7 in D |
| Enclosure Type: | NEMA 3R/12 |
| Finish: | Galvannealed/Painted |
| Horsepower: | 20 hp at 600 VAC |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 3 |
| Series: | F7 |
| Short Circuit Current Rating (kA): | 10 to 200, 10 to 200 kA |
| Temperature Rating (Degrees F): | -22 to 104, -22 to 104 deg F |
| Terminal Type: | Lug |
| Type: | Dusttight Driptight Fusible Heavy Duty Iceproof Rainproof Sleetproof, Dusttight Driptight Fusible Iceproof Rainproof Sleetproof |
| Color: | Gray |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 00785901076971 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2240.72 / Each
Typical price:$2355.00 / Each
Quantity:
- Square D Heavy Duty Receptacle Safety Switch, Dusttight Driptight Fusible Iceproof Rainproof Sleetproof, Series: F7, 600 V AC/250 V DC, 30 A, 20 hp at 600 VAC, 3 ph, 3 Pole, 4 Wires, 10 to 200 kA Short Circuit, 3PST Contact Form, Handle Actuator, NEMA 3R/12 Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 10-1/2 in W x 7 in D x 16-3/4 in H Dimensions, Steel, Gray, Galvannealed/Painted
H361AWC Application
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor ApplicationsH361AWC Item Features
- Type 12K with knockouts indoor dust and drip tight enclosure with Crouse-Hinds Arktite receptacle
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
H361AWC Standards
