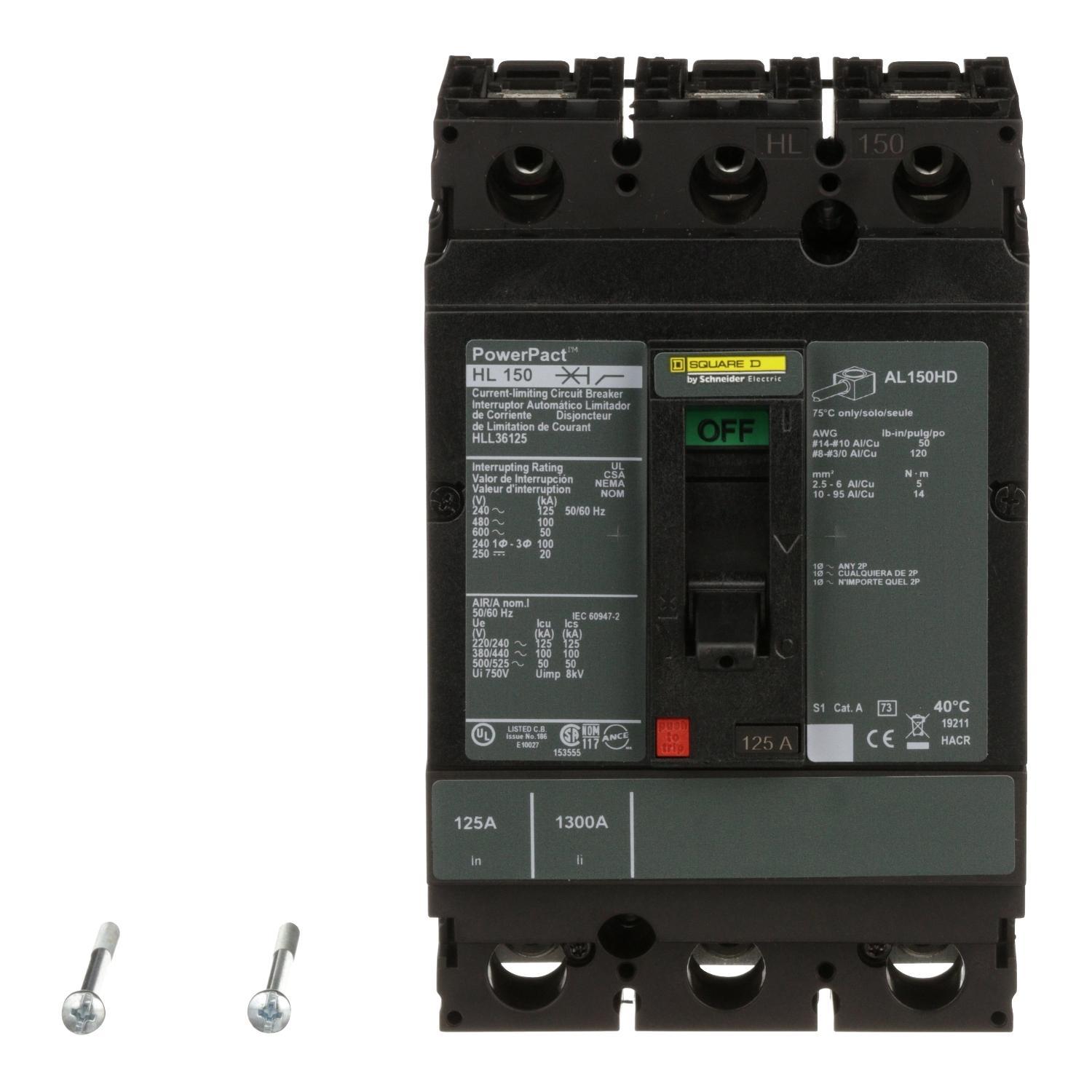

Square D HLL36125 I-Line Powerpact Molded Case Circuit Breaker
Part Number # HLL36125
SKU # 2206836
$5536.00 / Each
Typical price:$6749.00 / Each
Square D HLL36125 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | HLL36125 |
| SKU #: | 2206836 |
| Amperage Rating: | 125 A |
| Dimensions: | 4.12 in W x 4.36 in D x 6.4 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | L |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104, 104 deg F |
| Trip Range: | 900 to 1700, 900 to 1700 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type HLL |
| Wire Size: | 14 to 3/0 AWG Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901953043 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5536.00 / Each
Typical price:$6749.00 / Each
Quantity:
- Square D I-Line PowerPact Molded Case Circuit Breaker, Type HLL, 600 V AC/250 to 500 V DC, 125 A, 50/60 Hz Frequency, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC Interrupt, L Frame, Thermal Magnetic Trip, 900 to 1700 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 14 to 3/0 AWG Al/Cu Wire, NEMA AB1 Enclosure, 104 deg F, 4.12 in W x 4.36 in D x 6.4 in H Dimensions
HLL36125 Application
Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses, Industrial Markets, Power Meters, Operating Assistance, Front Display Modules, Communication Networks, Overload and Short Circuit ProtectionHLL36125 Item Features
- Standard 80 Percent or 100 Percent rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- QR codes for easy access to device documentation
- https://www.youtube.com/embed/ja3DCvAs9M4
HLL36125 Standards
RoHS Compliant|UL 498 File #E10027|CSA C22.2 #5 File #LR40970|CCC/CE Certified|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NOM Certified|HACR Rated|ECCN EAR99|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2206836Part Number #HLL36125UNSPSC39121616UPC00785901953043
