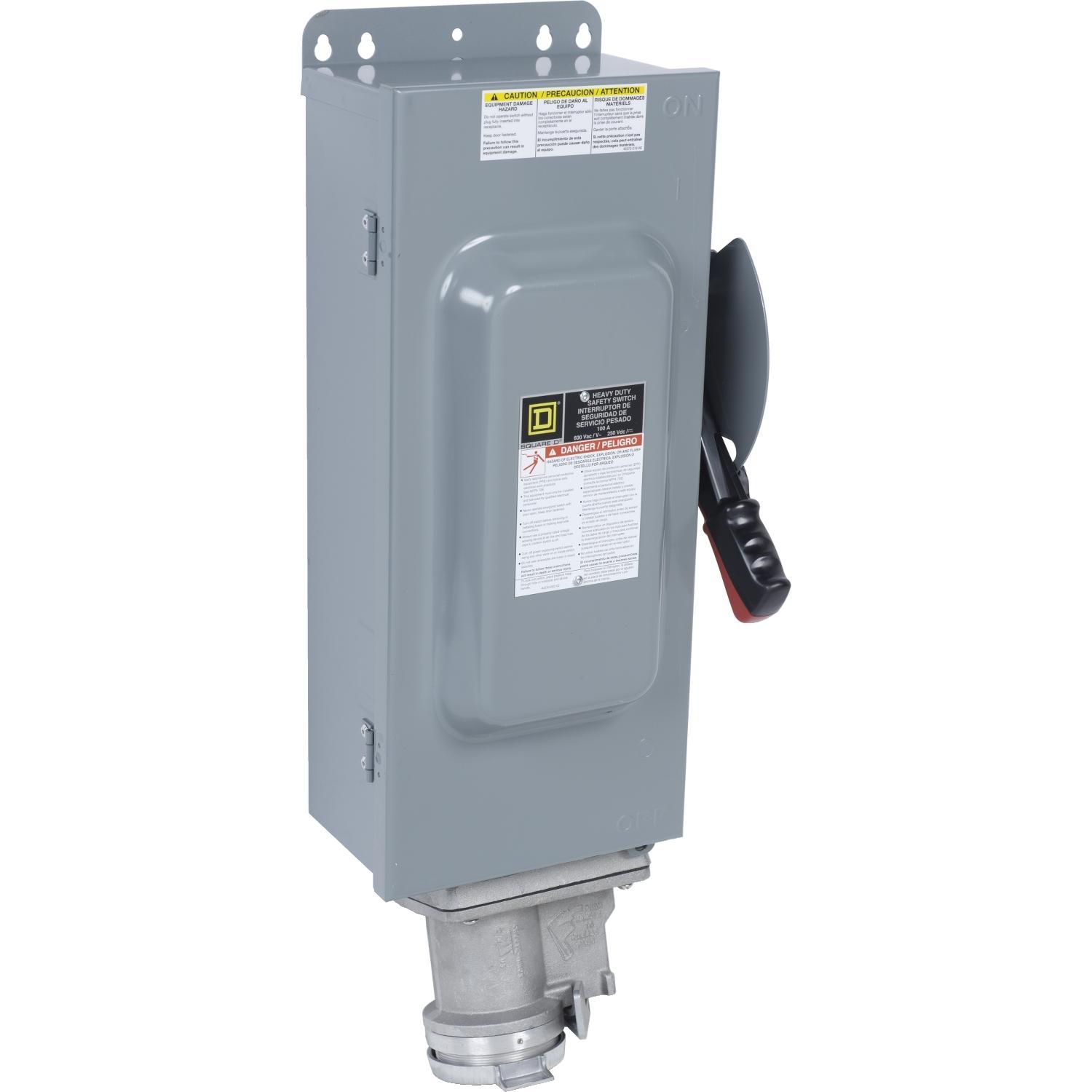

Square D HU363AWC Heavy Duty Safety Switch
Part Number # HU363AWC
SKU # 2274564
$5179.81 / Each
Typical price:$5444.00 / Each
Square D HU363AWC Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | HU363AWC |
| SKU #: | 2274564 |
| Actuator Type: | Handle |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 10-1/2 in W x 7 in D x 20-1/2 in H, 20-1/2 in H x 10-1/2 in W x 7 in D |
| Enclosure Type: | NEMA 3R/12 |
| Finish: | Galvannealed |
| Horsepower: | 60 hp, 100 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 1/3, 3-Jan |
| Series: | F7 |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | -22 to 104, -22 to 104 deg F |
| Terminal Type: | Lug |
| Type: | Dust/Driptight Heavy Duty Iceproof Non-Fusible Rainproof Sleetproof, Dust/Driptight Iceproof Non-Fusible Rainproof Sleetproof |
| Color: | Gray |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122218 |
| UPC: | 00785901077985 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5179.81 / Each
Typical price:$5444.00 / Each
Quantity:
- Square D Heavy Duty Safety Switch, Dust/Driptight Iceproof Non-Fusible Rainproof Sleetproof, Series: F7, 600 V AC/250 V DC, 100 A, 60 hp, 100 hp, 1/3 ph, 3 Pole, 4 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 3R/12 Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 10-1/2 in W x 7 in D x 20-1/2 in H Dimensions, Steel, Gray, Galvannealed
HU363AWC Application
Mining, Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Waste Water Treatment Plants, Healthcare Facilities, Educational Campuses and Indoor/Outdoor ApplicationsHU363AWC Item Features
- Type 12K with knockouts indoor dust and drip tight enclosure with Crouse-Hinds Arktite receptacle
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
HU363AWC Standards
RoHS Compliant|Federal Specification WS-865c|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2274564Part Number #HU363AWCUNSPSC39122218UPC00785901077985
