Part Number # JGL26000S25
SKU # 2312771
Image Disclaimers Message
JGL26000S25

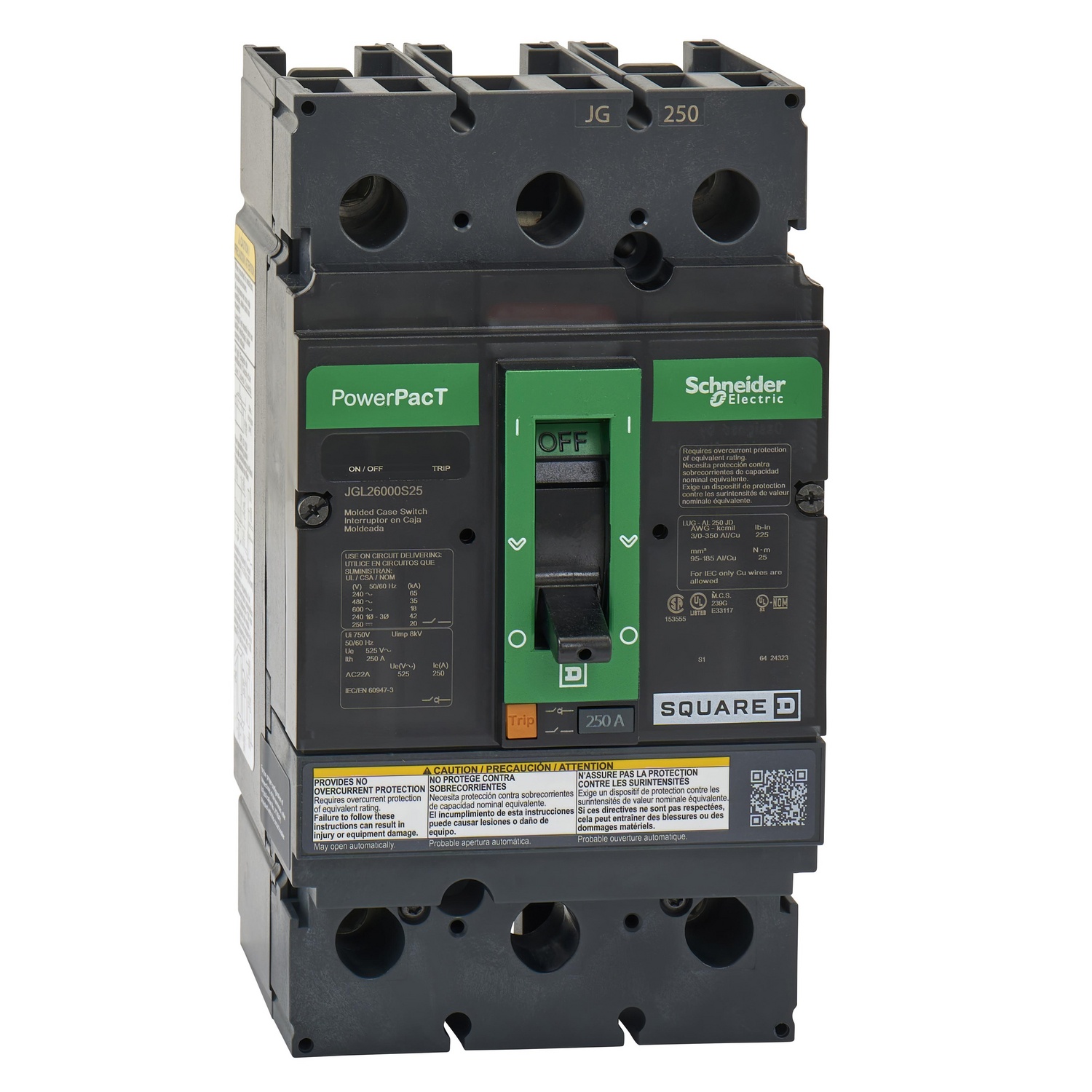

Square D JGL26000S25 Powerpact Molded Case Circuit Breaker
Part Number # JGL26000S25
SKU # 2312771
$1498.64 / Each
Typical price:$1827.00 / Each
Square D JGL26000S25 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | JGL26000S25 |
| SKU #: | 2312771 |
| Amperage Rating: | 250, 250 A |
| Dimensions: | 7.52 in H x 2.74 in W x 5 in D |
| Frame: | J |
| Interrupt Rating: | 18/35/65, 18/35/65 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Trip Type: | Magnetic |
| Type: | Automatic |
| Wire Size: | 3/0 AWG to 350 kcmil Al/Cu |
| Connection type: | Feed-Through/Line/Load Lug |
| Country of origin: | US |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122245 |
| UPC: | 00785901683247 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1498.64 / Each
Typical price:$1827.00 / Each
Quantity:
- Square D PowerPact Molded Case Circuit Breaker, Automatic, 600 V AC, 250 A, 18/35/65 kA Interrupt, J Frame, Magnetic Trip, 2 Pole, 1 ph, Feed-Through/Line/Load Lug Connection, 3/0 AWG to 350 kcmil Al/Cu Wire, Unit Mounting, 7.52 in H x 2.74 in W x 5 in D Dimensions
JGL26000S25 Specifications
- Factory sealed trip unit with a non-adjustable trip point
- 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating
JGL26000S25 Application
For disconnecting devicesJGL26000S25 Item Features
- To open and close a circuit under normal operating conditions
- Can make and break its rated current
- Factory set nonadjustable trip point to protect the molded case switch
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/watch?v=GHPCn0u1IUE&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
JGL26000S25 Standards
RoHS Compliant|CSA Certified|IEC Certified|UL ListedSKU #2312771Part Number #JGL26000S25UNSPSC39122245UPC00785901683247
