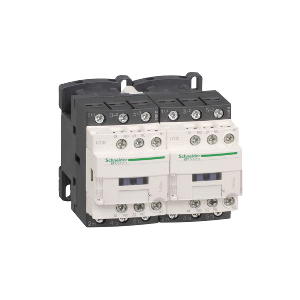

Square D LC2D09F7 Tesys D Iec Contactor
Part Number # LC2D09F7
SKU # 362374
$285.30 / Each
Square D LC2D09F7 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | LC2D09F7 |
| SKU #: | 362374 |
| Coil Power Rating: | 7-1/2, 7.5 hp |
| Coil Voltage: | 110, 110 V AC, 110 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 9 A at 440 V AC, 9 A at 440 VAC, 9 A at 575 VAC |
| Dimensions: | 3.03 in H x 3.54 in W x 3.39 in D, 3.54 in W x 3.39 in D x 3.03 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 15000000, 15000000 Cycles |
| Operating Temperature: | -4 to 140, -4 to 140 deg F |
| Series: | LC2D |
| Terminal Type: | Screw Clamp |
| Type: | LC1D D-Line, Reversing |
| Wattage: | 1.56/0.2, 1.56/0.2 W |
| Connection type: | Screw Clamp |
| Country of origin: | ID |
| Mounting type: | Plate/Rail, Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901207375 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$285.30 / Each
Quantity:
- Square D TeSys D IEC Contactor, Reversing, Series: LC2D, 110 VAC Coil, 9 A Maximum Load Current, 7.5 hp Coil, 3 Pole, 50/60 Hz Frequency, 1.56/0.2 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 9 A at 440 V AC Contact, Screw Clamp Terminal, IP20 Enclosure, 15000000 Cycles Operating Cycles, -4 to 140 deg F Operating, Plate/Rail Mounting, 3.03 in H x 3.54 in W x 3.39 in D Dimensions
LC2D09F7 Application
For resistive and motor loadLC2D09F7 Item Features
- Preassembled with reversing power busbar
- 6 kV conforming to IEC 60947 rated impulse withstand voltage
- III overvoltage category
- 25 A at <=140 deg F (60 deg C) power circuit/10 A at <=140 deg F (60 deg C) signaling circuit conventional free air thermal current
- 250 A at 440 V power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5-1/250 A DC signaling circuit conforming to IEC 60947-5-1 irms rated making capacity
- 250 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity
- 20 A gG at <=690 V coordination type 2 power circuit/25 A gG at <=690 V coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating
- 2.5 mOhm at 50 Hz - Ith 25 A power circuit average impedance
- Mechanical interlock
- 4 to 19 ms opening/12 to 22 ms closing operating time
- 3600 cycles/hr at <=140 deg F (60 deg C) operating rate
- Without built-in suppressor module coil technology
- 70 VA at 68 deg F 50/60 Hz inrush power
- 7.5 VA at 68 deg F (20 deg C) 60 Hz/7 VA at 68 deg F (20 deg C) 50 Hz hold-in power consumption
- 2 to 3 W heat dissipation
- 25 to 400 Hz signaling circuit frequency
- 5 mA signaling circuit minimum switching current
- 17 V signaling circuit minimum switching voltage, TH protective treatment
- 1.5 ms on de-energisation (between NC and NO contacts)/1.5 ms on energisation (between NC and NO contacts) non-overlap time, >10 MOhm signaling circuit insulation resistance
- -40 to 158 deg F permissible ambient air temperature around the device, -76 to 176 deg F storage temperature
LC2D09F7 Standards
UL 508|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|GOST|RINA|DNV|LROS|BV|CCC|GL|CSA C22.2 No 14SKU #362374Part Number #LC2D09F7UNSPSC39121529UPC00785901207375
