Part Number # LDB41
SKU # 2203535

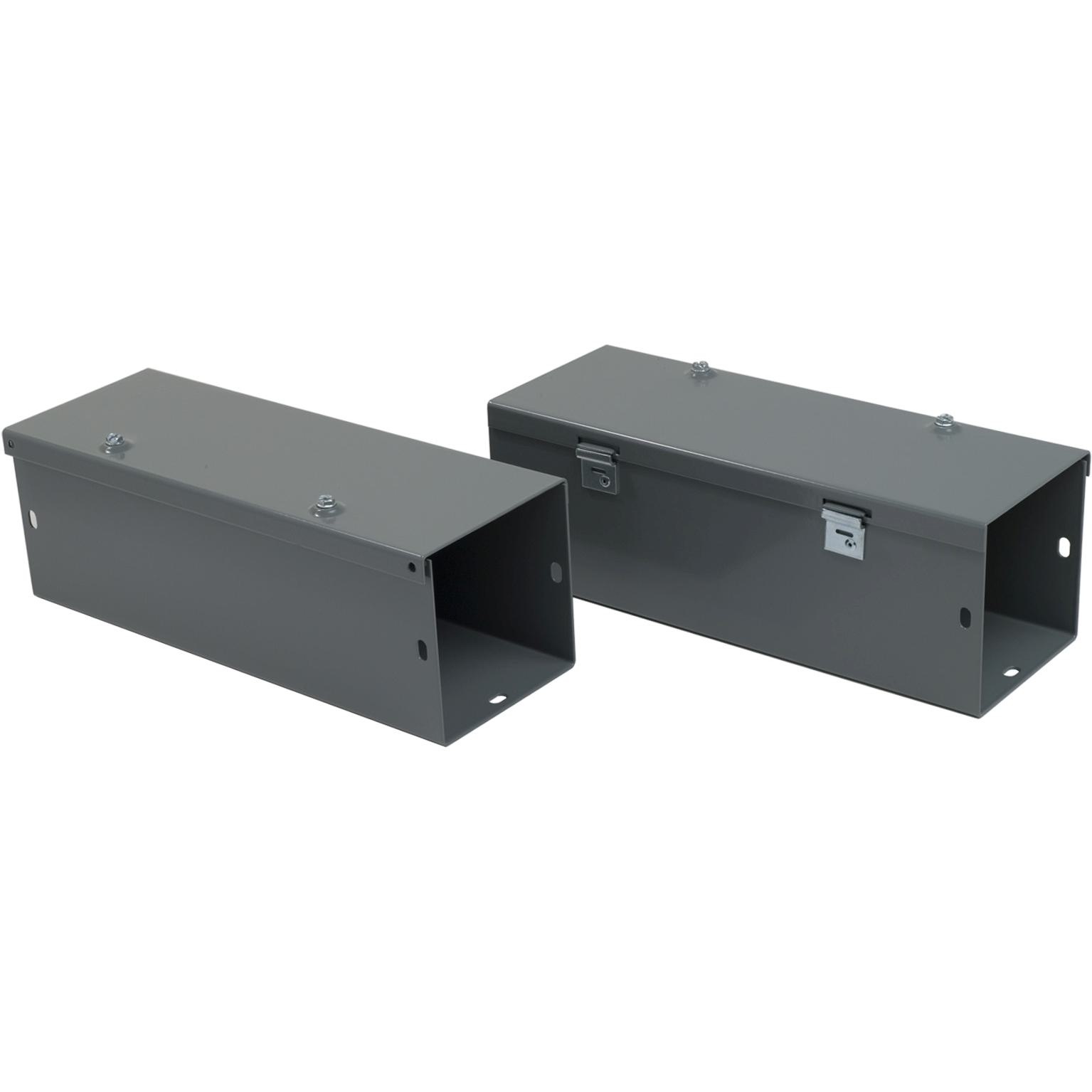

Image provided may only be a representation of
final product and may include optional equipment
LDB41
Square D LDB41 Square-Duct Wireway
Part Number # LDB41
SKU # 2203535
$89.68 / 4Each
Typical price:$100.40 / Each
Square D LDB41 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | LDB41 |
| SKU #: | 2203535 |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 1 |
| Type: | Type LDB General Purpose Straight Length |
| Country of origin: | MX |
| Height: | 4, 4 in |
| Length: | 1, 1 ft |
| Material: | 16 ga Steel/Polyester, Steel/Polyester |
| Width: | 4, 4 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39131710 |
| UPC: | 00785901168560 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$89.68 / 4Each
Typical price:$100.40 / Each
Quantity:
Square D LDB41 Square-Duct Wireway
Brand: Square D
Part Number: LDB41
Square D Square-Duct Wireway, Type LDB General Purpose Straight Length, 1 ft Length, 4 in Width, 4 in Height, Hinged Cover, NEMA 1 NEMA Rating, Steel/Polyester, Gray, Powder Coated
Additional Description: SQD -LDB41 WIREWAY 4 x 4 - N1 Paint - 1 ft lg
Catalog Description: Wireway, Square-Duct, 4 inch by 4 inch, 1 foot long, hinged cover, N1 paint, NEMA 1
LDB41 Application
Distribution of Power in Industrial Plant, Ganging Equipment such as Motor Controllers, Safety Switches, Metering Devices, Incoming Cable Runs, Feeder Circuits from Switchboard to Power, Vertical Runs of Cable in Elevator Shaft and Lighting Panels ApplicationsLDB41 Item Features
- Weighs less and is reusable
- Is easier to install
- Allows conductors to be laid in
- Makes additions to the wiring system easier
- Provides provisions for tap off
- Open top assembly protection for wire and cable insulation that could be damaged in a pull-through wiring system
- Straight length
- 4 x 4 in cross section
- Without knockout
- Connectors not supplied
LDB41 Standards
RoHS Compliant|CSA File No. 42184|ECCN: EAR99|IEC 60529|EEMAC Certified|UL 870 File No. E27524SKU #2203535Part Number #LDB41UNSPSC39131710UPC00785901168560
